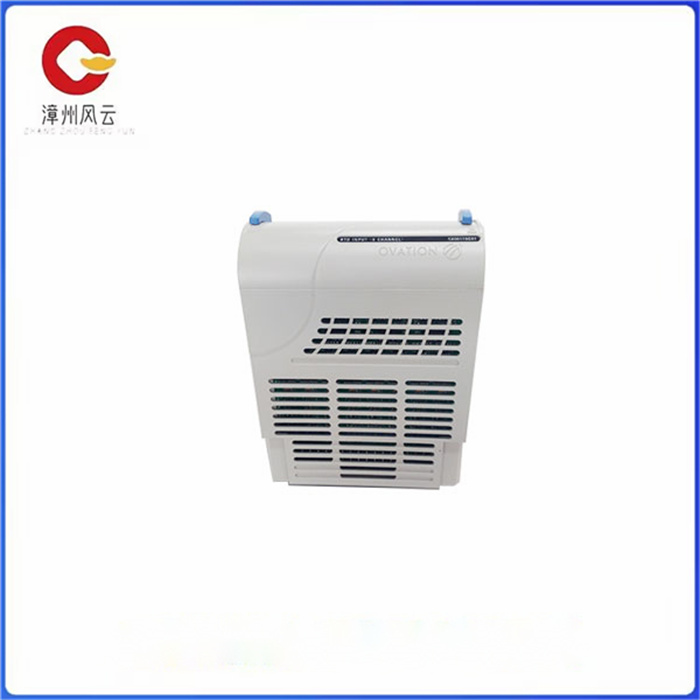

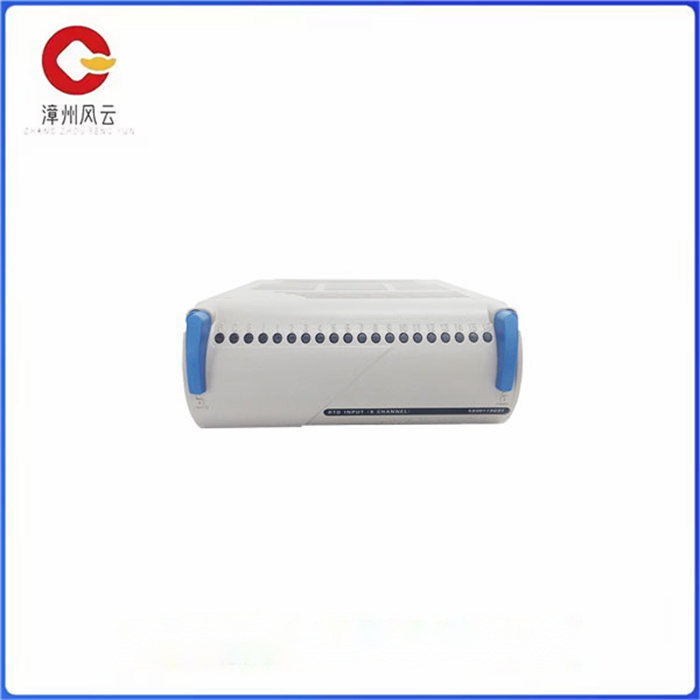

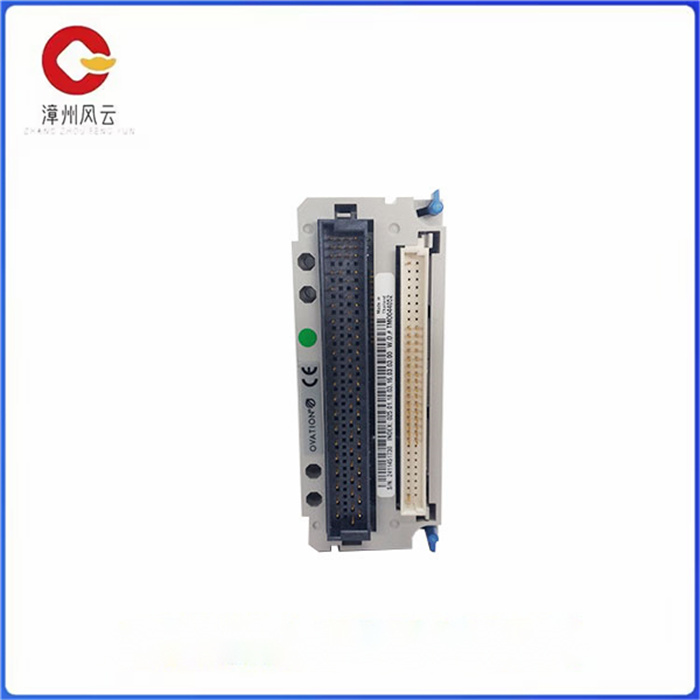

5X00119G01 EMERSON 8通道输入模块工控设备模块

5X00119G01 EMERSON 8通道输入模块工控设备模块

艾默生5X00119G01控制器可编程序控制器（PLC）及集散控制系统（DCS）是目前工业控制领域广泛使用的两种控制技术，它们各自具有明显的优势及劣势，如PLC在高速的顺序控制中占主导地位，而DCS则在复杂的过程控制中占优势；

PLC体积小，使用灵活，价格相对较低，但在通讯功能及管理能力方面不及DCS，DCS虽然通讯及管理能力较强，但体积大，价格相对较高.在这种情况下，用户期望得到一种集PLC与DCS优点于一体的控制系统，这种混合式控制系统（以下简称HCS）应既能地实现逻辑及顺序控制，又能很好地完成过程控制，同时还应具有管理功能，且体积小，价格较低，可靠性高。一些自控设备生产厂商已有产品问世，Rockwell公司新近推出的Allen-Bradley（A-B）品牌ProcessLogix过程控制系统便是其中一例。

本文将介绍一种混合式控制系统，既吸取传统DCS“管理集中，控制分散”的设计精髓，又保留传统PLC所固有的灵活性及低价位等优点，适用于离散控制、顺序控制及连续控制场合，以成本来完成高技术的自动化。基座安装（RACK）时，在决定控制箱内各种控制组件及线槽位置后，要依照图纸所示尺寸，标定孔位，钻孔后将固定螺丝旋紧到基座牢固为止。

在装上电源供应模块前，必须同时注意电源线上的接地端有无与金属机壳连结，若无则须接上。接地不好的话，会导致一系列的问题，静电、浪涌、外干扰，等等。由于不接地，往往PLC也能够工作，因此，不少经验不足的工程师就误以为接地不那么重要了。这就像登山的时候，没有系上保护缆绳一样，虽然你正常前进的时候，保护缆绳没有任何作用，但一旦你失足的时候，没有那根绳子，你的生命就完结了。PLC的接地，就相当于给PLC系上保护缆绳。

5X00119G01 EMERSON 8通道输入模块工控设备模块

Emerson 5X00119G01 controller Programmable controller (PLC) and distributed control system (DCS) are currently widely used in the field of industrial control two kinds of control technology, they each have obvious advantages and disadvantages, such as PLC dominates in high-speed sequence control, and DCS is dominant in complex process control;

PLC small size, flexible use, relatively low price, but in the communication function and management ability less than DCS, DCS although communication and management ability is strong, but the volume is large, the price is relatively high. In this case, the user expects to get a set of PLC and DCS advantages in one of the control system, this hybrid control system (hereinafter referred to as HCS) should be able to achieve logic and sequence control, but also to complete the process control well, but also should have management functions, and small size, low price, high reliability. Some automation equipment manufacturers already have products on the market, such as Rockwell's recently launched Allen-Bradley (A-B) brand ProcessLogix process control system.

This paper will introduce a hybrid control system, not only absorb the traditional DCS "centralized management, decentralized control" design essence, but also retain the traditional PLC inherent flexibility and low price advantages, suitable for discrete control, sequence control and continuous control occasions, to complete high-tech automation at cost. When RACK is installed, after determining the position of various control components and cable slots in the control box, mark the hole positions according to the dimensions shown in the drawings. After drilling, tighten the fixing screws until the base is secure.

Before installing the power supply module, ensure that the grounding terminal of the power cable is connected to the metal chassis. If not, connect the grounding terminal to the metal chassis. If the grounding is not good, it will lead to a series of problems, static electricity, surge, external interference, and so on. Because it is not grounded, often PLC can also work, so many inexperienced engineers mistakenly think that grounding is not so important. It's like climbing a mountain without a protective cable, although when you go normally, the protective cable has no effect, but once you lose your footing, without that rope, your life is over. Grounding of PLC is equivalent to tying a protective cable to PLC.
