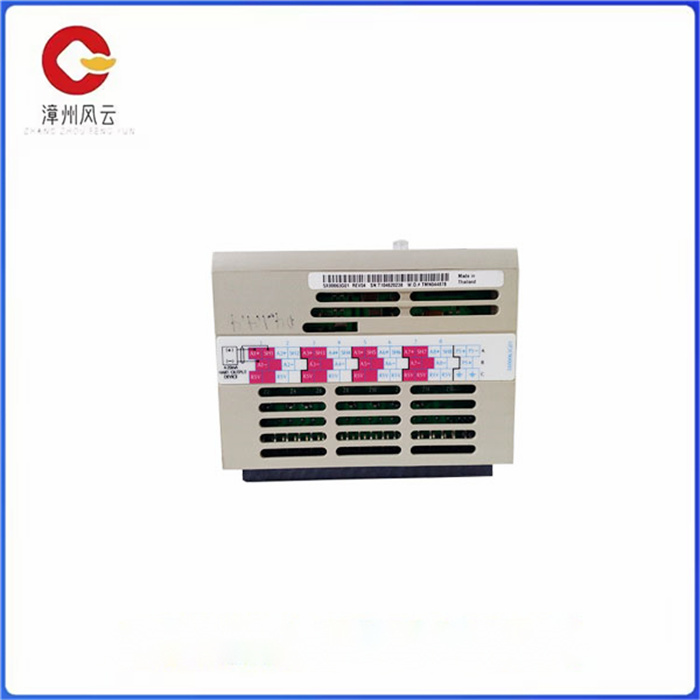

5X00063G01  EMERSON 数字量输入卡件模块

艾默生5X00063G01控制器emerson，另外要注意，一些高密度输入点的模块对同时接通的输入点数有限制，一般同时接通的输入点不得超过总输入点的 60 ％； PLC 每个输出点的驱动能力（ A/ 点）也是有限的，有的 PLC 其每点输出电流的大小还随所加负载电压的不同而异；一般 PLC 的允许输出电流随环境温度的升高而有所降低等。在选型时要考虑这些问题。

PLC 的输出点可分为共点式、分组式和隔离式几种接法。隔离式的各组输出点之间可以采用不同的电压种类和电压等级，但这种 PLC 平均每点的价格较高。如果输出信号之间不需要隔离，则应选择前两种输出方式的 PLC 。

PCS变桨系统如下图所示包括一个Center Box(中间柜)、三个的Axis Box(叶片变桨驱动控制柜)，与其他公司的变桨系统相比，PCS的中间柜设计相对简单，不采用PLC实现控制功能，仅实现单纯的400v电源、UPS电源、CANopen信号线的分发功能，主控柜布置包括：主开关、熔断器、滤波器、防雷保护等元件，以及其他客户可能的附加部件。

艾默生5X00063G01控制器emerson系统的三个叶片变桨驱动控制柜包括：后安全系统、驱动控制、电池管理、诊断功能等，通过各自的模件实现*，与其他变桨系统相比冗余功能更，具有佳的可靠性。 叶片变桨驱动控制柜根据客户选择的驱动电机类型不同，机柜的接线和布置稍有不同，根据电机的类型不同PCS系统可分为、AC、DC三种，基于创新设计的等部件，大规模集成技术的应用提高了系统的可靠性，系统展现了一个非常现代的艺术级解决方案。

5X00063G01  EMERSON 数字量输入卡件模块

emerson 5X00063G01 controller emerson, in addition, note that some high-density input point modules have a limit on the number of input points connected at the same time, generally the input point connected at the same time should not exceed 60% of the total input point; The driving capacity of each output point of PLC (A/ point) is also limited, and the size of each output current of some PLC also varies with the load voltage applied; Generally, the allowable output current of PLC decreases with the increase of ambient temperature. These issues should be considered in the selection.

The output points of PLC can be divided into common point, group and isolated connections. Different voltage types and voltage levels can be used between isolated groups of output points, but the average price per point of this PLC is higher. If there is no need for isolation between the output signals, the PLC of the first two output modes should be selected.

As shown in the figure below, the PCS variable pitch system consists of one Center Box(middle cabinet) and three Axis boxes (blade variable pitch drive control cabinet). Compared with the variable pitch system of other companies, the design of the PCS intermediate cabinet is relatively simple, and the control function is not achieved by PLC. Only 400v power supply, UPS power supply, CANopen signal line distribution function, the main control cabinet layout includes: main switch, fuse, filter, lightning protection and other components, as well as other customer may additional parts.

The emerson 5X00063G01 controller The Emerson system's three-blade propeller drive control cabinet includes: rear safety system, drive control, battery management, diagnostic functions, and more, which are implemented through their own modules *, and provide more redundancy and reliability than other propeller systems. According to the type of drive motor selected by the customer, the wiring and layout of the cabinet are slightly different. According to the type of the motor, the PCS system can be divided into three types, AC and DC. Based on the innovative design and other components, the application of large-scale integration technology improves the reliability of the system, and the system shows a very modern art grade solution.
