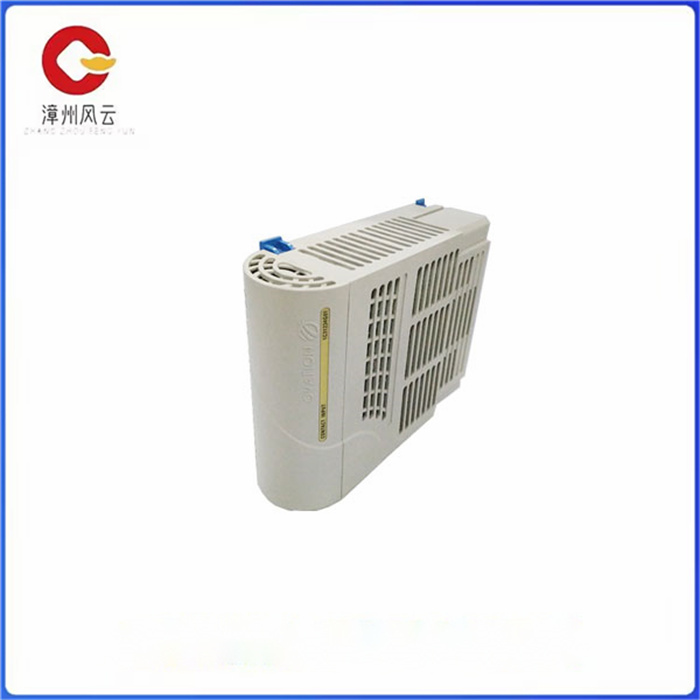

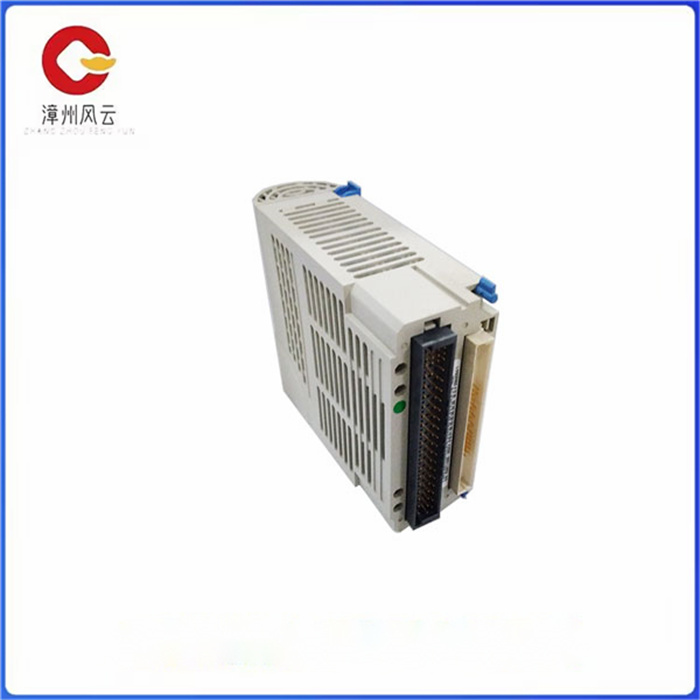

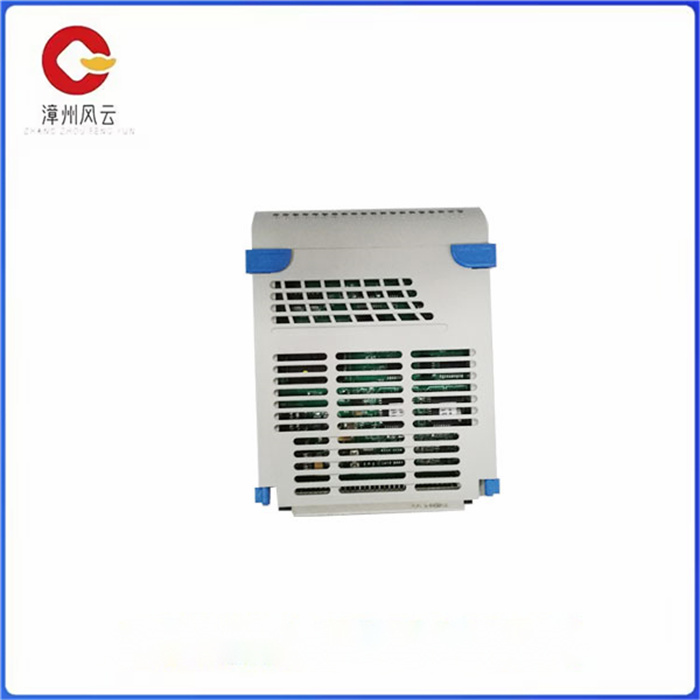

1C31234G01 EMERSON 输入输出模块 DCS卡件

1C31234G01 EMERSON 输入输出模块 DCS卡件

品牌 ： Emerson

产品编号型号：1C31234G01

产品类型 ： 紧凑型触点输入模块

模块类型 ： 紧凑型触点输入，带板载 48 V 辅助

通道 ： 16

个性 模块 ： 型腔插件

范围 ： 48 VDC 卡上润湿电源

装运重量 ： 2 Kg

数字量输入输出信号就是开关量信号，1或者0， 模拟量信号，有2种，电压或者电流信号 ，一般是变送器传过来的信号，比如用压力变送器检测水管压力，它会输出一个模拟信号4--20ma 或者 0-10V的信号给PLC，PLC来进行数据处理。 开关量输入点(DI),处理开关量输入信号.

模拟量输入点(AI),处理模拟量输入信号(0-20mADC,0-5VDC). 电阻信号(含热电阻)输入点,处理热电阻或一般电阻信号. 高速脉冲输入点,处理高速脉冲信号. 电压(含热电偶)输入点,处理电压输入或热电偶信号. 还有通讯,用于和上位机交换数据或控制下级控制器仪表驱动器等

1C31234G01 EMERSON 输入输出模块 DCS卡件

Brand: Emerson

Product number Model: 1C31234G01

Product Type: Compact contact input module

Module Type: Compact contact input with on-board 48 V assist

Channel: 16

Personality module: Cavity plug-in

Range: 48 VDC card wetted power supply

Shipping weight: 2 Kg

Digital input and output signal is the switching signal, 1 or 0, analog signal, there are two, voltage or current signal, generally the signal transmitted by the transmitter, such as the pressure transmitter to detect the water pipe pressure, it will output an analog signal 4-20mA or 0-10V signal to PLC, PLC for data processing. The switching input point (DI) processes the switching input signal.

Analog input point (AI), processing analog input signals (0-20mADC,0-5VDC). Resistance signal (including thermal resistance) input point, processing thermal resistance or general resistance signal. High-speed pulse input point, processing high-speed pulse signal. Voltage (including thermocouple) input point, processing voltage input or thermocouple signal. There is also communication, which is used to exchange data with the upper computer or control the instrument driver of the lower controller
