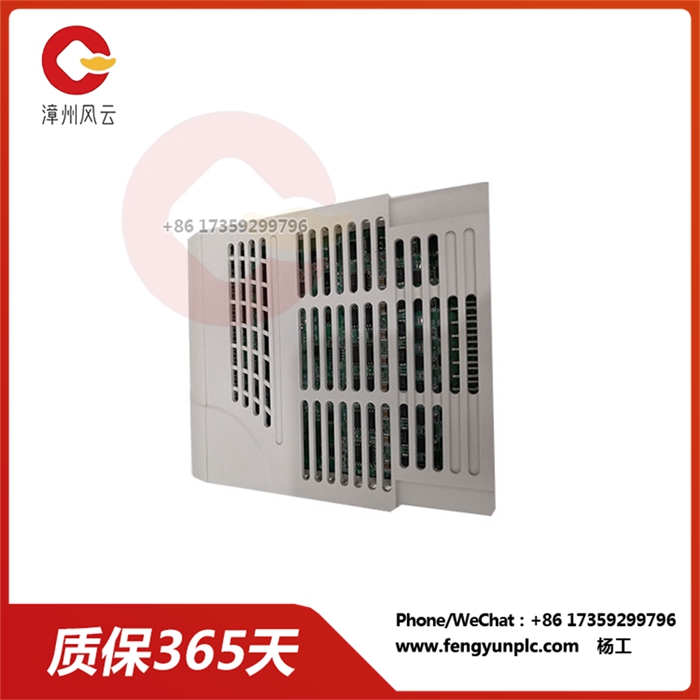

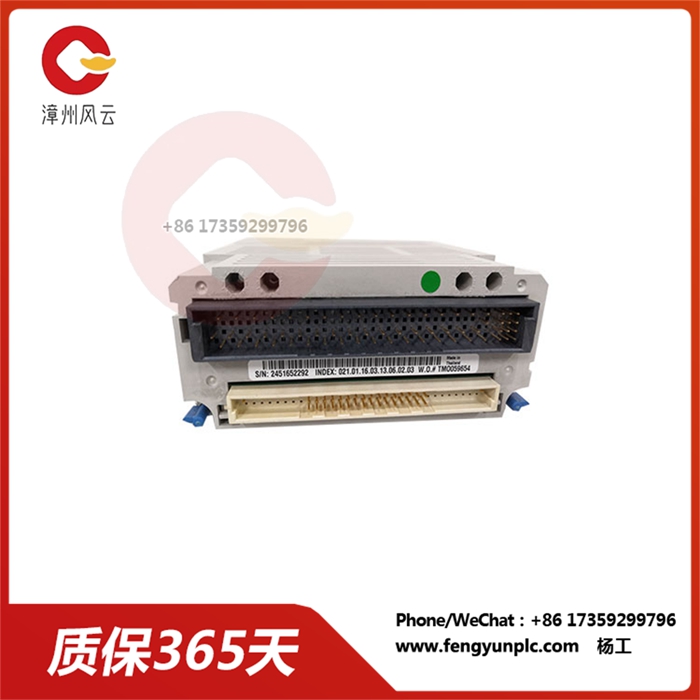

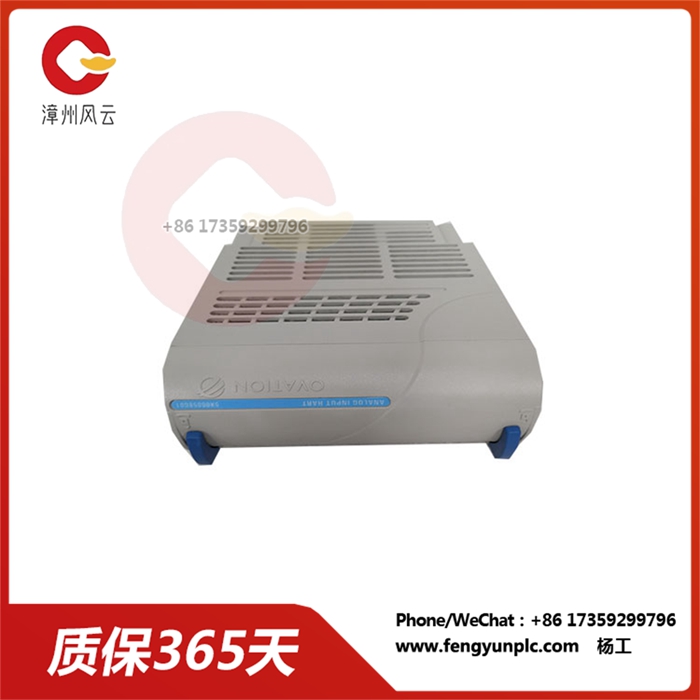

5X00058G01 模拟输入电子模块

5X00058G01 模拟输入电子模块

5X00058G01 模拟输入电子模块是艾默生 Ovation 分布式控制系统的关键组件。 它在采集和处理来自各种现场设备的模拟信号方面起着至关重要的作用，使控制系统能够有效地监控和调节工业过程。

主要特点：

模拟输入通道：5X00058G01模块提供8个独立的模拟输入通道，每个都能够接受各种模拟信号类型，包括4-20mA，0-10V，和 J 型热电偶。这种多功能性使其能够与各种现场传感器和变送器连接。

高精度：该模块具有高精度，确保将模拟信号精确转换为控制系统的数字值。其准确性对于保持过程完整性和可靠性至关重要。

HART通讯：该模块支持HART（Highway Addressable Remote Transducer）通信协议，能够与兼容 HART 的现场设备进行通信。这种通信功能有助于远程校准，诊断和设备配置。

隔离：模块上的每个输入通道都包含隔离电路，将现场设备与控制系统电气隔离。这种隔离可保护控制系统免受接地故障和电涌造成的潜在损坏。

滤波：该模块集成了滤波电路，以消除模拟信号的噪声和干扰，确保控制系统的数据干净可靠。这种滤波提高了过程测量的准确性和稳定性。

应用：

过程控制：5X00058G01模块广泛用于过程控制应用，它从各种传感器和变送器获取模拟信号，以监测和控制温度、压力、流量和液位等过程变量。

工业自动化：该模块可用于工业自动化系统，支持从机械、生产线和其他自动化过程中的传感器采集数据。

发电和配电：5X00058G01 可用于发电和配电系统，用于监测和控制电压、电流和功率因数等关键参数。

环境监测：该模块用于环境监测系统，用于从测量空气质量、水质和其他环境参数的传感器收集数据。

总体而言，5X00058G01模拟输入电子模块是用于采集和处理工业自动化和控制系统中模拟信号的可靠且多功能的组件。

5X00058G01 模拟输入电子模块

The 5X00058G01 analog input electronics module is a key component of Emerson's Ovation distributed control system. It plays a vital role in the acquisition and processing of analog signals from various field devices, enabling control systems to effectively monitor and regulate industrial processes.

Main features:

Analog input channels: The 5X00058G01 module offers eight independent analog input channels, each capable of accepting a variety of analog signal types, including 4-20mA, 0-10V, and J-type thermocouples. This versatility allows it to connect with a variety of field sensors and transmitters.

High precision: The module has high precision, ensuring the precise conversion of the analog signal to the digital value of the control system. Its accuracy is critical to maintaining process integrity and reliability.

HART Communication: This module supports the HART (Highway Addressable Remote Transducer) communication protocol and is able to communicate with HART-compatible field devices. This communication capability facilitates remote calibration, diagnostics, and device configuration.

Isolation: Each input channel on the module contains isolation circuits that electrically isolate the field equipment from the control system. This isolation protects the control system from potential damage caused by ground failures and power surges.

Filter: The module integrates the filter circuit to eliminate the noise and interference of the analog signal to ensure that the data of the control system is clean and reliable. This filter improves the accuracy and stability of process measurement.

Applications:

Process control: Widely used in process control applications, the 5X00058G01 module takes analog signals from a variety of sensors and transmitters to monitor and control process variables such as temperature, pressure, flow and level.

Industrial Automation: This module can be used in industrial automation systems to support the collection of data from sensors in machinery, production lines and other automation processes.

Power generation and distribution: The 5X00058G01 can be used in power generation and distribution systems to monitor and control key parameters such as voltage, current and power factor.

Environmental Monitoring: This module is used in environmental monitoring systems to collect data from sensors that measure air quality, water quality and other environmental parameters.

Overall, the 5X00058G01 Analog Input electronics module is a reliable and versatile component for the acquisition and processing of analog signals in industrial automation and control systems.
