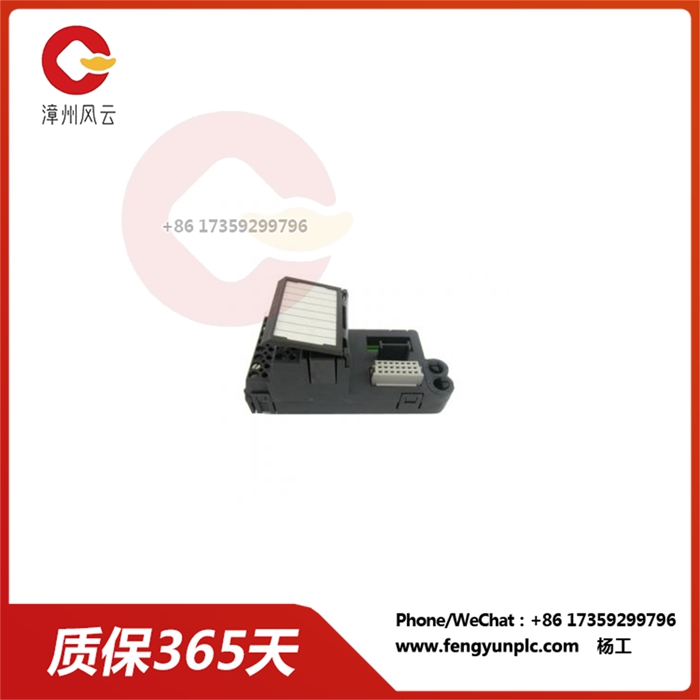

KJ3003X1-EA1 模拟输入输出模块

KJ3003X1-EA1 模拟输入输出模块

KJ3003X1-EA1 模拟输入输出模块

KJ3003X1-EA1 是一款由德国 Weidmüller Interface GmbH & Co. KG 生产的模拟输入输出模块，用于将来自模拟传感器或执行器的信号转换为数字信号，并发送到控制系统。它具有以下特点：

支持多种模拟量信号： KJ3003X1-EA1 支持多种电压和电流信号，包括 0-10V、-10V 至 +10V、4-20mA、0-20mA 等，可满足不同应用需求。

高精度测量： KJ3003X1-EA1 采用高精度的 A/D 和 D/A 转换器，可提供高精度的测量和控制结果。

隔离保护： KJ3003X1-EA1 具有隔离保护功能，可防止输入信号干扰输出信号。

可扩展性强：KJ3003X1-EA1 支持多模块连接，可扩展更多模拟量 I/O 点数。

应用

KJ3003X1-EA1 可广泛应用于各种工业控制和自动化应用，包括：

过程控制： 监控和控制工业过程的参数，如温度、压力、流量等。

测试和测量： 测量各种物理量，如电压、电流、温度等。

数据采集： 收集来自各种传感器的模拟量数据。

机器控制： 控制机器的运动和操作。

技术规格

参数 值

支持的模拟量信号 0-10V、-10V 至 +10V、4-20mA、0-20mA

测量精度 0.1%FS

隔离电压 250V 交流电

I/O 点数 8 个

通信接口 RS-485串口

尺寸 90 毫米 x 36 毫米 x 24 毫米

KJ3003X1-EA1 模拟输入输出模块

The KJ3003X1-EA1 is an analog input/output module manufactured by Weidmuller Interface GmbH & Co. KG, Germany, for converting signals from analog sensors or actuators into digital signals and sending them to the control system. It has the following characteristics:

Support a variety of analog signals: KJ3003X1-EA1 supports a variety of voltage and current signals, including 0-10V, -10V to +10V, 4-20mA, 0-20mA, etc., to meet different application needs.

High-precision measurement: The KJ3003X1-EA1 uses high-precision A/D and D/A converters to provide high-precision measurement and control results.

Isolation protection: KJ3003X1-EA1 has isolation protection function to prevent the input signal from interfering with the output signal.

Strong scalability: KJ3003X1-EA1 supports multi-module connection, which can expand more analog I/O points.

Apply

The KJ3003X1-EA1 can be used in a wide range of industrial control and automation applications, including:

Process control: Monitor and control parameters of industrial processes, such as temperature, pressure, flow, etc.

Test and measurement: measurement of various physical quantities, such as voltage, current, temperature, etc.

Data acquisition: Collect analog data from various sensors.

Machine control: Control the movement and operation of the machine.

Technical specification

Parameter value

Supported analog signals 0-10V, -10V to +10V, 4-20mA, 0-20mA

Measurement accuracy 0.1%FS

Isolation voltage 250V AC

8 I/O points

Communication port RS-485 Serial port

Dimensions 90mm x 36mm x 24mm
