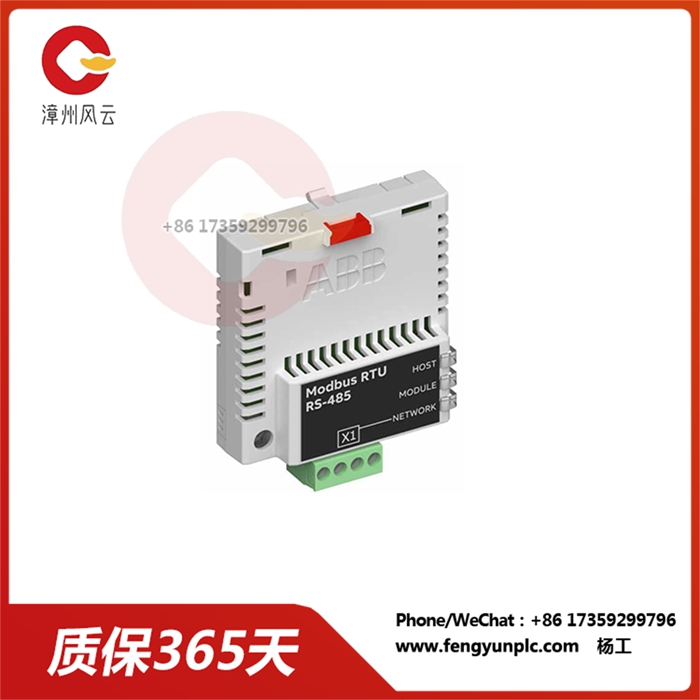

FSCA-01 COMM通信卡是ABB变频器的可选设备，可将变频器连接到RS-485 Modbus RTU网络。它充当驱动器内部通信总线和 Modbus RTU 协议之间的接口，允许驱动器与网络上的其他设备交换数据。

主要特点：

1. Modbus RTU协议支持：FSCA-01 COMM 卡支持 Modbus RTU 协议，这是一种广泛使用的工业通信协议，用于设备之间的数据交换。

2. RS-485接口：该卡提供 RS-485 接口，可连接到 RS-485 Modbus RTU 网络。

3. 电流隔离：FSCA-01 COMM 卡在驱动器和 RS-485 网络之间具有电气隔离功能，可保护驱动器免受电气噪声和接地故障的影响。

4. 内置总线终端：该卡包括一个带有故障安全电路的内置总线终端，确保正确的信号终端和网络稳定性。

5. 易于安装：FSCA-01 COMM卡设计用于轻松安装和与ABB变频器集成。

应用：

FSCA-01 COMM通信卡适用于需要Modbus RTU通信的各种工业自动化和控制系统，包括：

1. 监控和数据采集 （SCADA） 系统：将ABB变频器连接到SCADA系统，用于监测和控制工业过程。

2. 分布式控制系统（DCS）：将ABB变频器集成到DCS网络中，以集中控制复杂的工业系统。

3. 楼宇自动化系统（BAS）：实现ABB变频器和BAS组件之间的通信，以实现暖通空调控制和能源管理。

4. 测试和测量设置：将ABB变频器连接到测试设备，以便在测试和分析过程中进行数据采集和控制。

5. 机器对机器 （M2M） 通信：促进ABB变频器与工业网络上其他机器或设备之间的通信。

总体而言，FSCA-01 COMM通信卡是扩展连接选项并将ABB变频器集成到基于Modbus RTU的工业自动化系统中的宝贵工具。

FSCA-01 COMM通讯卡

The FSCA-01 COMM card is an optional device for ABB drives that connect to the RS-485 Modbus RTU network. It acts as an interface between the drive's internal communication bus and the Modbus RTU protocol, allowing the drive to exchange data with other devices on the network.

Main features:

Modbus RTU Protocol support: The FSCA-01 COMM card supports Modbus RTU, a widely used industrial communication protocol for data exchange between devices.

RS-485 interface: The card provides an RS-485 interface for connection to the RS-485 Modbus RTU network.

Current isolation: The FSCA-01 COMM card has electrical isolation between the driver and the RS-485 network to protect the driver from electrical noise and ground faults.

Built-in bus terminal: The card includes a built-in bus terminal with a fail-safe circuit that ensures correct signal terminal and network stability.

Easy installation: The FSCA-01 COMM card is designed for easy installation and integration with ABB drives.

Applications:

The FSCA-01 COMM card is suitable for a variety of industrial automation and control systems that require Modbus RTU communication, including:

Supervisory Control and Data Acquisition (SCADA) systems: ABB drives are connected to SCADA systems for monitoring and controlling industrial processes.

Distributed Control Systems (DCS) : ABB drives are integrated into a DCS network to centrally control complex industrial systems.

Building Automation Systems (BAS) : Enable communication between ABB inverters and BAS components for HVAC control and energy management.

Test and measurement setup: ABB drives are connected to test equipment for data acquisition and control during testing and analysis.

Machine-to-machine (M2M) communication: Facilitates communication between ABB drives and other machines or equipment on the industrial network.

Overall, the FSCA-01 COMM card is a valuable tool for expanding connectivity options and integrating ABB drives into Modbus RTU-based industrial automation systems.
