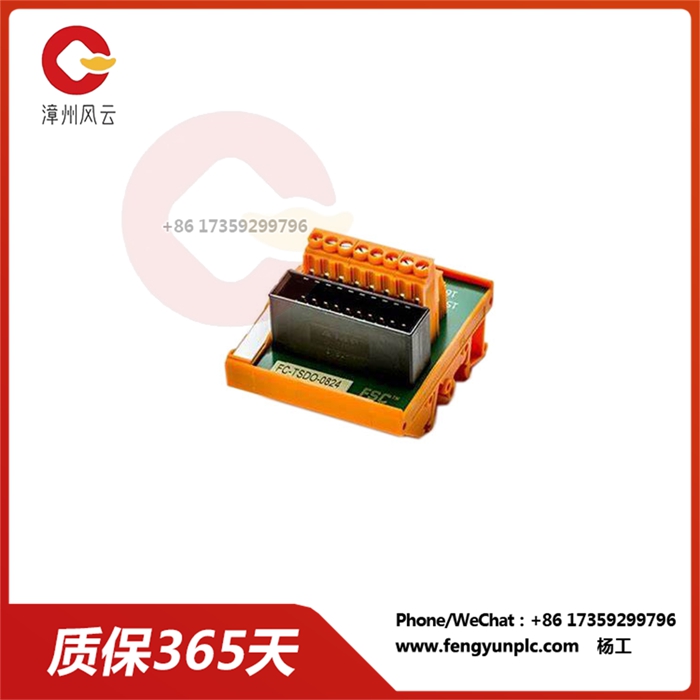

FC-TSDO-0824 数字离散输出模块

FC-TSDO-0824 数字离散输出模块

FC-TSDO-0824 数字离散输出模块

FC-TSDO-0824 是一款数字分立输出模块，设计用于 Foxboro I/A 系列分布式控制系统 （DCS）。它提供 8 个隔离数字输出，可用于控制各种设备，例如继电器、阀门和电机。FC-TSDO-0824 是一款多功能且可靠的模块，可用于广泛的工业应用。

FC-TSDO-0824 数字分立式输出模块的主要特性：

• 8 个隔离式数字输出：提供 8 个隔离式数字输出，每个输出能够切换高达 2A 的电流。

• C型触点配置：具有 C 型触点配置，为每个输出提供常开 （NO）、常闭 （NC） 和公共触点。

• 高开关速度：提供高开关速度，可快速控制设备。

• LED 状态指示灯：包括每个输出的 LED 状态指示灯，提供输出状态的视觉确认。

• 电流隔离：每个输出与系统接地之间具有电气隔离功能，可防止电气噪声和接地故障。

FC-TSDO-0824 数字分立式输出模块的应用：

• 继电器控制：用于开关灯、电机和其他电气设备的控制继电器。

• 阀门控制：气动、液压或电动执行系统中的操作阀。

• 电机控制：指导电机的运行，例如泵、风扇和输送机。

• 报警信号：触发警报，例如灯、警报器和蜂鸣器，以指示过程故障或警告。

• 联锁系统：实施联锁系统，以防止危险情况或设备损坏。

使用 FC-TSDO-0824 数字分立输出模块的优势：

• 多功能控制：为各种设备和应用提供多功能控制功能。

• 运行可靠：在恶劣的工业环境中提供可靠的运行。

• 隔离输出：防止电气噪声和接地故障，确保信号完整性和安全性。

• 视觉状态指示：提供清晰的输出状态视觉指示，便于监控和故障排除。

• 易于安装和维护：通过模块化设计和易于访问的连接简化安装和维护。

总体而言，FC-TSDO-0824 数字分立式输出模块在各种工业应用中被证明是一项宝贵的资产，具有多功能控制、可靠操作、隔离输出、视觉状态指示以及易于安装和维护的特点。

FC-TSDO-0824 数字离散输出模块

The FC-TDO-0824 is A digital discrete output module designed for use in Foxboro I/A series distributed control systems (DCS). It offers eight isolated digital outputs that can be used to control a variety of devices, such as relays, valves, and motors. The FC-TDO-0824 is a versatile and reliable module for a wide range of industrial applications.

Main features of FC-TDO-0824 digital discrete output module:

8 isolated digital outputs: 8 isolated digital outputs are available, each capable of switching current up to 2A.

Type C contact configuration: A Type C contact configuration provides normally open (NO), normally closed (NC), and common contacts for each output.

High switching speed: Provides high switching speed for fast device control.

LED status indicator: Includes LED status indicator for each output to provide visual confirmation of output status.

Current isolation: Electrical isolation between each output and system ground prevents electrical noise and ground failures.

Application of FC-TDO-0824 digital discrete output module:

Relay control: Control relays used to turn lights, motors and other electrical equipment on and off.

Valve control: Operating valves in pneumatic, hydraulic or electric execution systems.

Motor control: Directs the operation of motors, such as pumps, fans and conveyors.

Alarm signals: Trigger alarms, such as lights, sirens, and buzzers, to indicate process failure or warn.

Interlocking system: Implement an interlocking system to prevent dangerous situations or damage to equipment.

Advantages of using FC-TDO-0824 digital discrete output module:

Multi-function control: Provides multi-function control functions for various devices and applications.

Reliable operation: Provides reliable operation in harsh industrial environments.

Isolated output: Prevents electrical noise and ground faults to ensure signal integrity and safety.

Visual status indication: Provides a clear visual indication of output status for easy monitoring and troubleshooting.

Easy installation and maintenance: Simplify installation and maintenance with modular design and easy-to-access connections.

Overall, the FC-TDO-0824 digital discrete output module is proving to be a valuable asset in a variety of industrial applications, featuring versatile control, reliable operation, isolated output, visual status indication, and ease of installation and maintenance.
