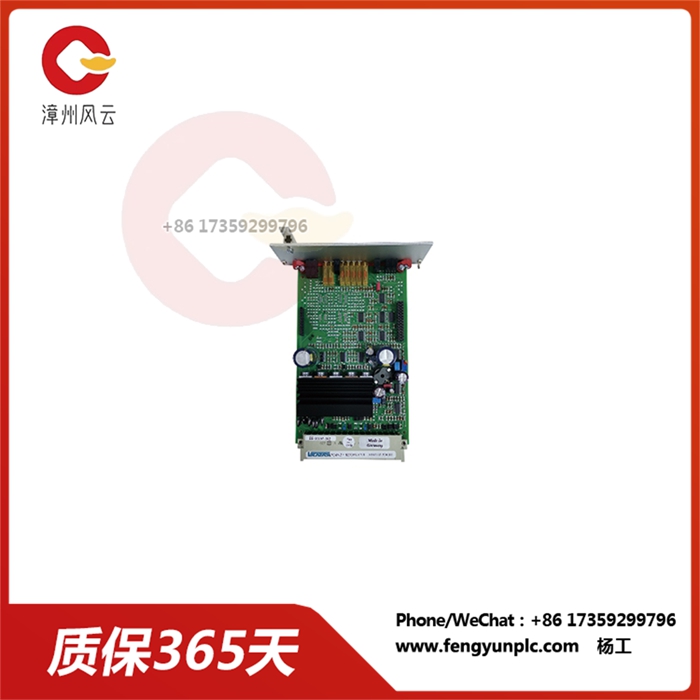

EEA-PAM-581-D-33 功率放大器

EEA-PAM-581-D-33 功率放大器

EEA-PAM-581-D-33 功率放大器

EEA-PAM-581-D-33 功率放大器是一种多功能且坚固的组件，设计用于各种工业自动化和过程控制应用中液压阀的比例控制。它是伊顿维克斯产品线的一部分，该产品线以其在苛刻的工业环境中的可靠性和性能而闻名。

主要特点：

• 五个电压输入：EEA-PAM-581-D-33 功率放大器具有 5 个电压输入，包括 2 个反相和 1 个同相命令信号输入、一个用于 0-20 mA 信号的电流输入以及两个用于设定零点和死区补偿的电压输入。

• 高增益放大：该放大器提供输入信号的高增益放大，可实现液压阀的精确控制和比例驱动。

• PID控制：该放大器集成了PID（比例-积分-微分）控制功能，可实现先进的控制策略并提高系统稳定性。

• 斜坡函数发生器：EEA-PAM-581-D-33 功率放大器具有内置斜坡函数发生器，可在不同控制位置之间实现平滑和受控的转换。

• 坚固的设计：该放大器采用坚固耐用的设计，可承受恶劣的工业环境和苛刻的工作条件。

应用：

EEA-PAM-581-D-33 功率放大器可用于各种比例控制系统，包括：

• 液压阀控制：放大器通常用于控制各种应用中的液压阀，例如机床、压力机和物料搬运系统。

• 过程控制：EEA-PAM-581-D-33 功率放大器用于过程控制系统，如化学加工、石油和天然气精炼以及发电，能够精确控制流量、压力和其他工艺参数。

• 机器人：该放大器可用于机器人技术，例如机械臂和机械手，可精确控制关节运动和力。

好处：

在比例控制系统中使用 EEA-PAM-581-D-33 功率放大器具有以下几个优点：

• 精确且反应灵敏的控制：高增益放大和 PID 控制功能可实现液压阀和比例执行器的精确和响应式控制。

• 提高系统稳定性：PID控制功能有助于稳定控制系统并减少振荡，确保平稳可靠的运行。

• 平滑过渡的斜坡功能：内置斜坡函数发生器可确保不同控制位置之间的平滑和可控过渡，从而最大限度地减少系统中的颠簸和干扰。

• 坚固性和可靠性：坚固的设计使放大器适用于恶劣的工业环境和苛刻的工作条件，确保长期可靠性。

• 适用于各种应用的多功能性：EEA-PAM-581-D-33 功率放大器可用于各种比例控制系统，使其成为各种工业应用的多功能组件。

总体而言，EEA-PAM-581-D-33 功率放大器是比例控制系统的重要组件，可提供精确且响应迅速的控制、提高系统稳定性、平滑过渡的斜坡功能、坚固性和可靠性，以及适用于各种应用的多功能性。它有助于提高系统性能、降低复杂性并增强各种工业环境中的控制能力。

EEA-PAM-581-D-33 功率放大器

The EEA-PAM-581-D-33 power amplifier is a versatile and rugged assembly designed for proportional control of hydraulic valves in a variety of industrial automation and process control applications. It is part of the Eaton Vickers product line, which is known for its reliability and performance in demanding industrial environments.

Main features:

Five voltage inputs: The EEA-PAM-581-D-33 power amplifier has five voltage inputs, including two inverting and one in-phase command signal inputs, one current input for 0-20 mA signals, and two voltage inputs for setting zero and dead zone compensation.

High gain amplification: This amplifier provides high gain amplification of the input signal, enabling precise control and proportional drive of the hydraulic valve.

PID control: The amplifier integrates PID (proportional-Integral-differential) control to enable advanced control strategies and improve system stability.

Ramp function Generator: The EEA-PAM-581-D-33 power amplifier has a built-in ramp function generator for smooth and controlled transitions between different control positions.

Rugged design: The amplifier is designed to withstand harsh industrial environments and demanding operating conditions.

Applications:

The EEA-PAM-581-D-33 power amplifier can be used in a variety of proportional control systems, including:

Hydraulic Valve control: Amplifiers are commonly used to control hydraulic valves in a variety of applications, such as machine tools, presses and material handling systems.

Process control: The EEA-PAM-581-D-33 power amplifier is used in process control systems such as chemical processing, oil and gas refining, and power generation to precisely control flow, pressure, and other process parameters.

Robotics: This amplifier can be used in robotics, such as robotic arms and manipulators, for precise control of joint motion and force.

Benefits:

The use of EEA-PAM-581-D-33 power amplifiers in proportional control systems has several advantages:

Precise and responsive control: High gain amplification and PID control enable precise and responsive control of hydraulic valves and proportional actuators.

Improve system stability: The PID control function helps stabilize the control system and reduce oscillations, ensuring smooth and reliable operation.

Slope function for Smooth transitions: The built-in ramp function generator ensures smooth and controlled transitions between different control positions, thereby minimizing bumps and disturbances in the system.

Robustness and reliability: The rugged design makes the amplifier suitable for harsh industrial environments and demanding operating conditions, ensuring long-term reliability.

Versatility for a wide range of applications: The EEA-PAM-581-D-33 power amplifier can be used in a wide range of proportional control systems, making it a versatile component for a wide range of industrial applications.

Overall, the EA-PAM-581-D-33 power amplifier is an important component of proportional control systems, providing precise and responsive control, improved system stability, smooth transition ramp functionality, robustness and reliability, and versatility for a wide range of applications. It helps improve system performance, reduce complexity, and enhance control in a variety of industrial environments.
