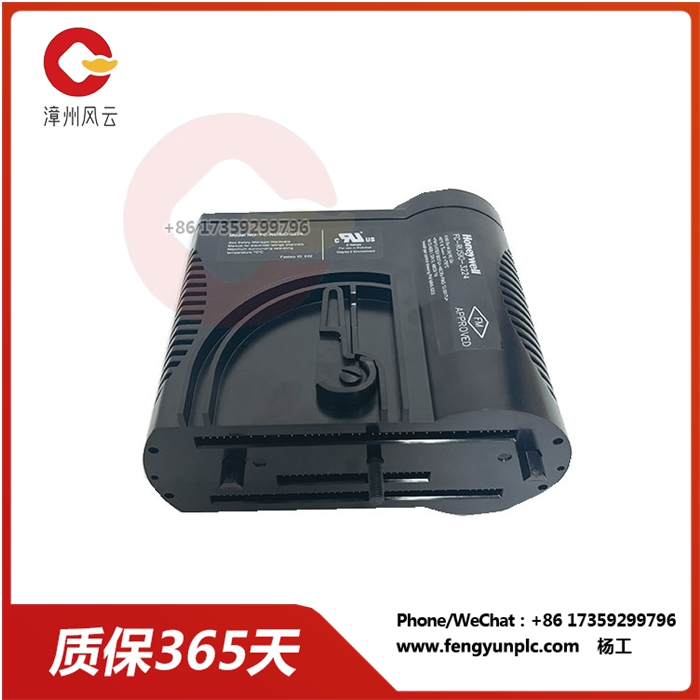

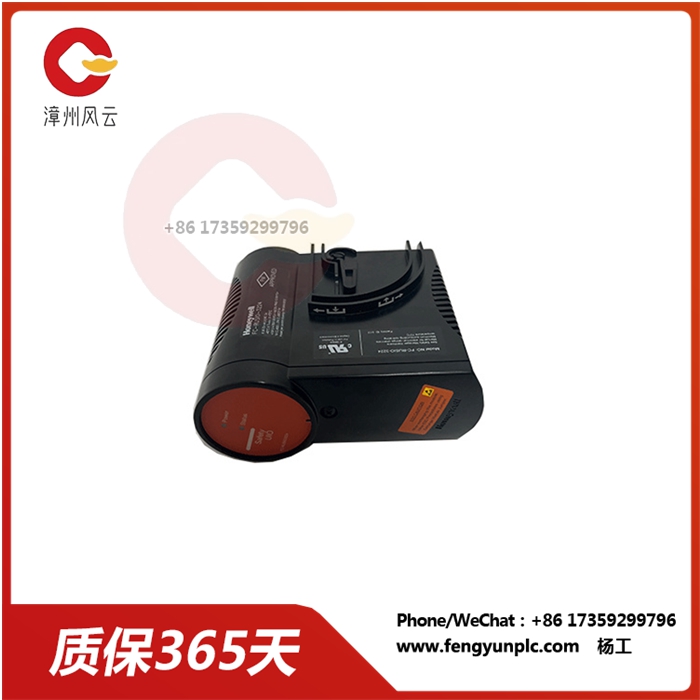

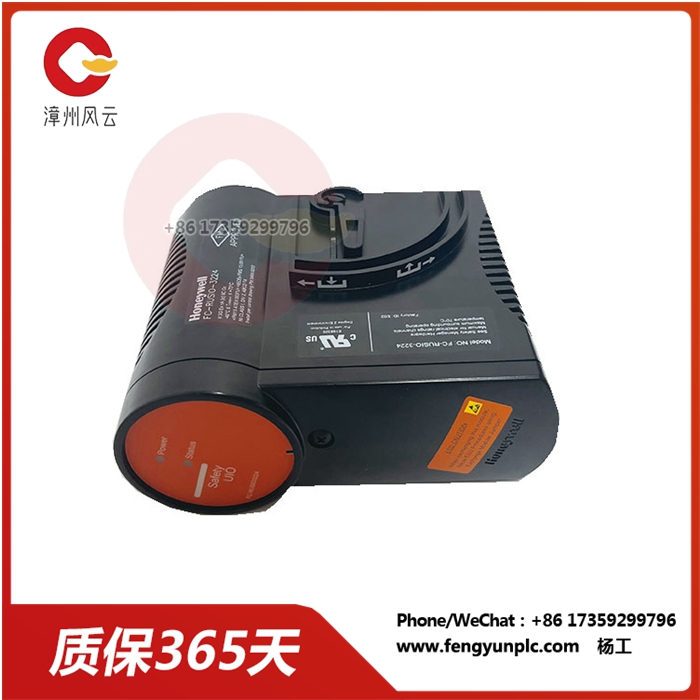

FC-RUSIO-3224 远程通用安全IO模块

FC-RUSIO-3224 远程通用安全IO模块

系统板FC-GPCS-RIO16-PF

倍加福集成板FC-GPCS-RIO16-PF是专门为与霍尼韦尔远程通用安全IO模块FC-RUSIO-3224集成的本质安全而开发的。

通过倍加福系统互连线缆CAHWC300-AIO-DIO-3m与RUSIO模块连接。

对于倍加福集成板和RUSIO模块，IO都可以灵活配置。

RUSIO模块的IO配置是通过软件配置完成的。集成板的IO配置是根据下表选择正确的is屏障完成的:

附件的解决方案

现在倍加福能够提供定制外壳，包括用于安装在危险区域的1区解决方案。

倍加福集成板和RUSIO模块IO都可以配置

不锈钢外壳

◆具有多种电缆压盖配置的优点

该系统板是倍加福和霍尼韦尔共同开发的，并由霍尼韦尔成功测试和批准(见短信- mvip -证书)。扩展外壳完整的RUSIO系统允许通用的IS I/O安装在现场。选择相应的IS屏障允许客户灵活的I/O配置，自由混合模拟输入和输出以及数字输入和输出信号。

FC-RUSIO-3224 远程通用安全IO模块

System board FC-GPCS-RIO16-PF

The Pepperl + Fuchard integrated board FC-GPCS-RIO16-PF was developed specifically for the intrinsic security of integration with the Honeywell remote general-purpose security IO module FC-RUSIO-3224.

Connect to the RUSIO module through Pepperl + Fuchs system interconnection cable CAHWC300-AIO-DIO-3m.

IO can be configured flexibly for both Pepperl + Fuchsia and RUSIO modules.

The IO configuration of the RUSIO module is done through software configuration. IO configuration of the integrated board is accomplished by selecting the correct IS barrier according to the following table:

Attached solution

Pepperl + Fuchres is now able to offer custom enclosures, including a Zone 1 solution for installation in hazardous areas.

Both Pepperl + Fuchsia integrated board and RUSIO module IO can be configured

Stainless steel case

◆ Advantages of a variety of cable gland configurations

The system board was jointly developed by Pepperl + Fuchres and Honeywell, and was successfully tested and approved by Honeywell (see SMS - mvip - Certificate). The extended housing complete RUSIO system allows universal IS I/O installation in the field. Choosing the appropriate IS barrier allows customers to flexibly configure I/O and freely mix analog input and output as well as digital input and output signals.
