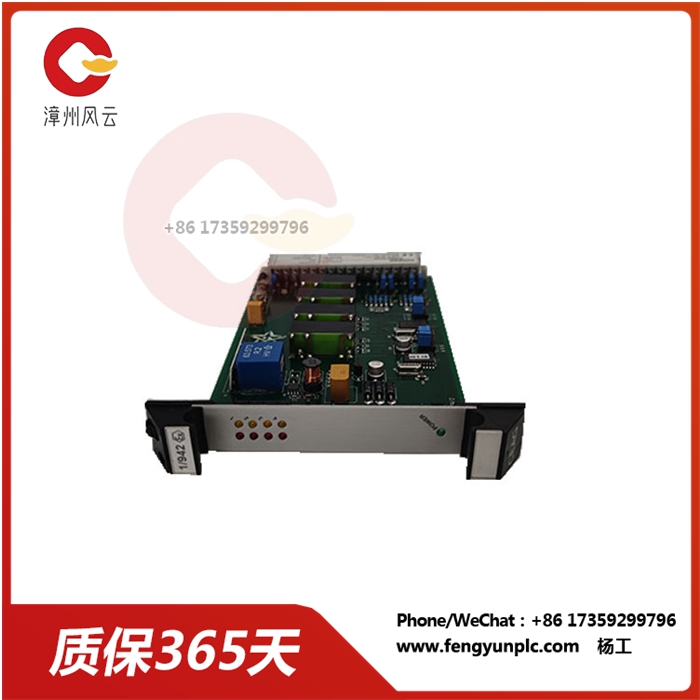

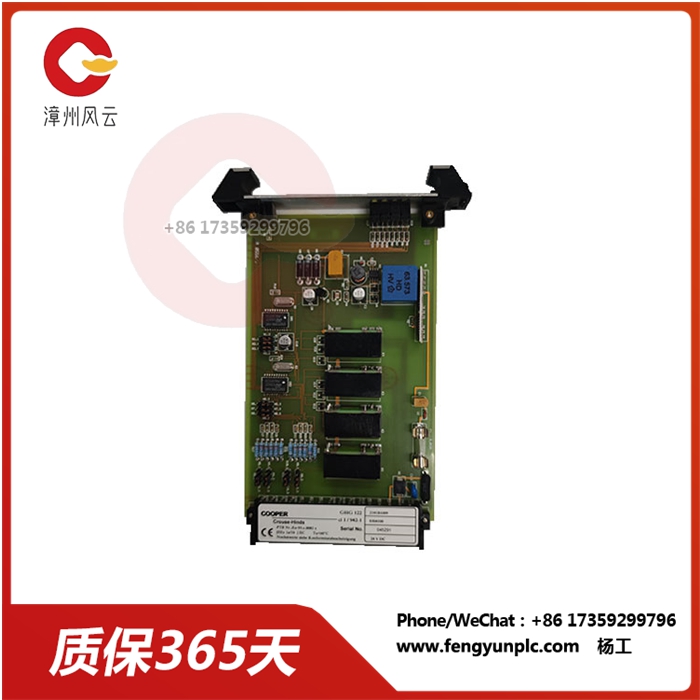

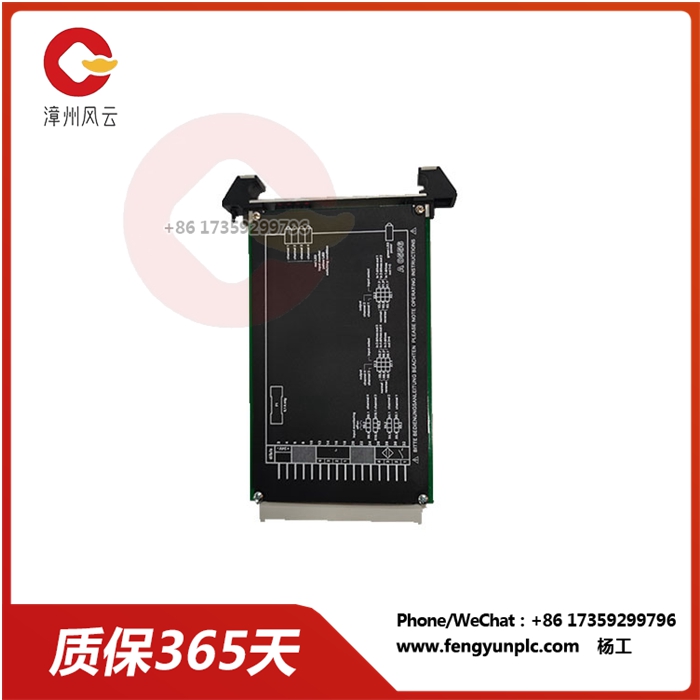

GHG122 进口可编程PLC控制系统

GHG122 进口可编程PLC控制系统

类型:信号调节器

应用:隔离放大器

功能:为NAMUR数字输入提供继电器输出。电绝缘

工作功率:120伏交流电

输入电压:NAMUR规范

输入电流:NAMUR规范

输出电压:250伏交流电/100伏直流电

输出电流:5 Aac/2 Adc

容量:2个频道

连接:螺旋夹端子

温度范围:-4至+140华氏度(-20至+60摄氏度)

安装:din轨道

PLC隔离放大器:类型信号调节器:应用隔离放大器；功能-为NAMUR数字输入提供继电器输出。电气隔离；工作电源-120 VAC；输入电压- NAMUR规格；输入电流- NAMUR规格；输出电压- 250伏交流电/100伏直流电；输出电流-5 Aac/2 Adc；容量- 2个通道；连接螺丝夹端子；温度范围- -20至60摄氏度(-4至140华氏度)；安装- DIN导轨；附加信息-批准:1、2、3类。1 Gr. A-G .额定功率:100 va/50W；制造商系列- CEAG 2/942

GHG122 进口可编程PLC控制系统

Type: Signal regulator

Application: Isolation amplifier

Function: Provides relay output for NAMUR digital input. Electrical insulation

Operating power :120 volts AC

Input voltage :NAMUR specification

Input current :NAMUR specification

Output voltage: 250V AC / 100V DC

Output current :5 Aac/2 Adc

Capacity :2 channels

Connection: Screw clamp terminal

Temperature range :-4 to +140 degrees Fahrenheit (-20 to +60 degrees Celsius)

Installation :din rail

PLC Isolation amplifier: Type Signal regulator: Application isolation amplifier; Function - Provides relay output for NAMUR digital input. Electrical isolation; Working power supply -120 VAC; Input voltage - NAMUR specification; Input current - NAMUR specification; Output voltage - 250 V AC /100 V DC; Output current -5 Aac/2 Adc; Capacity - 2 channels; Connecting screw clamp terminal; Temperature range -20 to 60 degrees Celsius (-4 to 140 degrees Fahrenheit); Mounting - DIN rail; Additional information - Approval: Categories 1, 2, 3. 1 Gr.A-G. Rated power :100 va/50W; Manufacturer Series - CEAG 2/942
