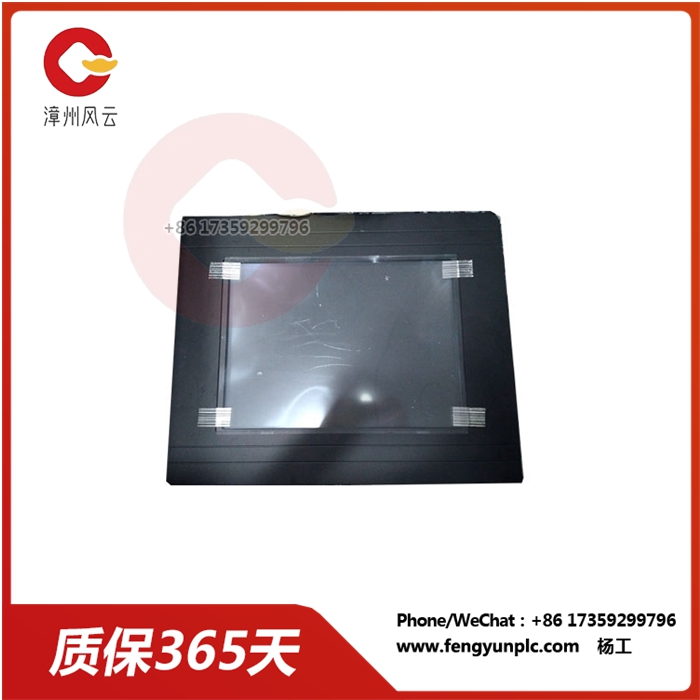

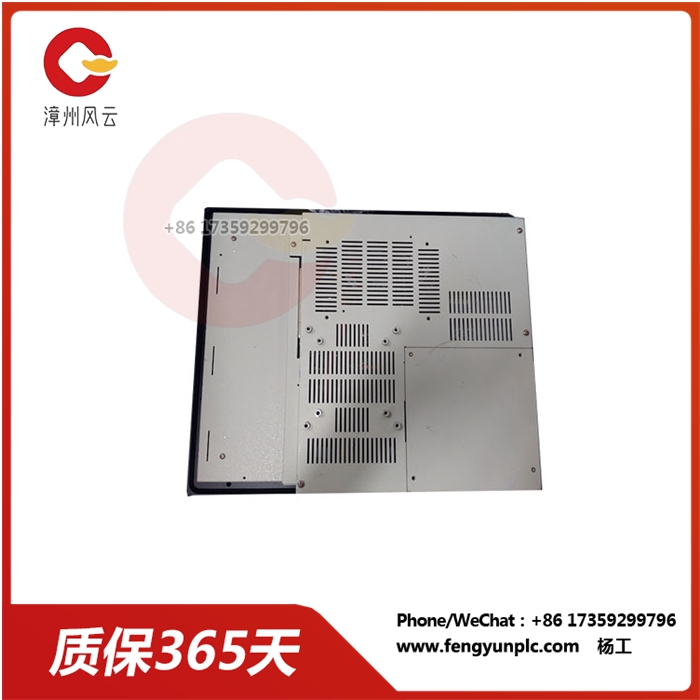

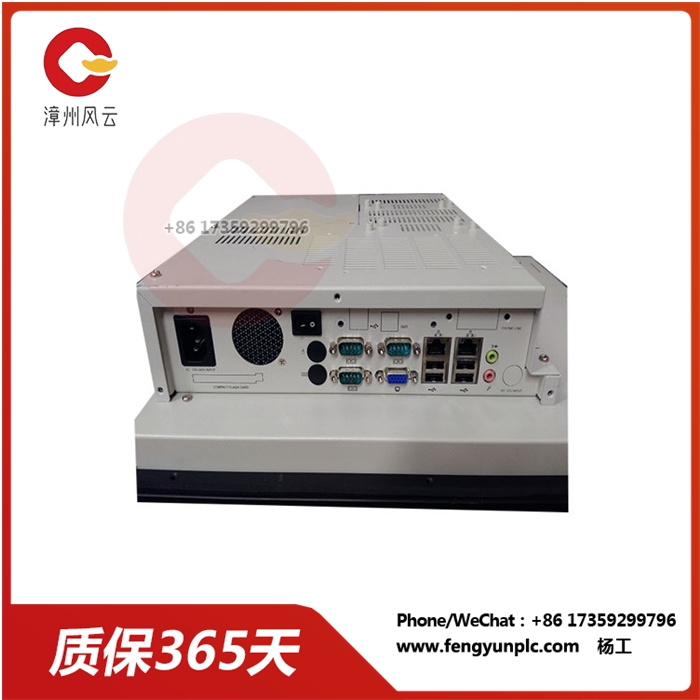

P-OPEN-P4-150PAC-OP150P4 运动控制模块

P-OPEN-P4-150PAC-OP150P4 运动控制模块

P-OPEN-P4-150PAC-OP150P4 运动控制模块是自动化控制系统中的关键组件，主要负责控制和管理机械设备的运动。它根据接收到的运动命令或指令，进行运动学解算或轨迹规划运算，以计算出在各个伺服控制周期内各个关节或执行器的角度值、位置、速度等参数。

然后，运动控制模块将这些参数发送到伺服驱动系统或执行器，以驱动机械设备的运动，完成指定的路径、姿态变化或工作任务。运动控制模块通常包括以下几个核心功能：轨迹规划：根据运动命令或指令，进行轨迹规划运算，以生成平滑、准确的运动轨迹。运动学解算：根据机械设备的运动学模型和参数，进行运动学解算，以计算出各个关节或执行器的角度值、位置、速度等参数。

插补运算：在运动过程中，根据轨迹规划结果和实时反馈数据，进行插补运算，以生成连续、平滑的运动轨迹。伺服控制：将计算出的参数发送到伺服驱动系统或执行器，以驱动机械设备的运动，并实时接收反馈数据，进行闭环控制，确保运动的准确性和稳定性。P-OPEN-P4-150PAC-OP150P4 运动控制模块广泛应用于工业自动化、机械设备、机器人、数控机床等领域。在选择和使用运动控制模块时，需要考虑其控制精度、动态性能、稳定性、可靠性等指标，并根据具体的应用场景和需求进行综合考虑。

P-OPEN-P4-150PAC-OP150P4 运动控制模块

The P-OPEN-P4-150PAC-OP150P4 Motion control module is a key component in the automation control system, which is mainly responsible for controlling and managing the movement of mechanical equipment. According to the received motion commands or instructions, it performs kinematic solutions or trajectory planning operations to calculate the Angle value, position, speed and other parameters of each joint or actuator in each servo control cycle.

The motion control module then sends these parameters to the servo drive system or actuator to drive the movement of the mechanical device to complete the specified path, attitude change or work task. Motion control modules usually include the following core functions: Trajectory planning: According to motion commands or instructions, trajectory planning operations are performed to generate smooth and accurate motion trajectories. Kinematic solution: According to the kinematic model and parameters of the mechanical equipment, the kinematic solution is carried out to calculate the Angle value, position, speed and other parameters of each joint or actuator.

Interpolation operation: In the process of motion, interpolation operation is carried out according to the trajectory planning results and real-time feedback data to generate continuous and smooth motion trajectory. Servo control: The calculated parameters are sent to the servo drive system or actuator to drive the movement of the mechanical equipment, and the feedback data is received in real time for closed-loop control to ensure the accuracy and stability of the movement. P-OPEN-P4-150PAC-OP150P4 Motion control module is widely used in industrial automation, mechanical equipment, robots, CNC machine tools and other fields. When selecting and using motion control modules, it is necessary to consider the control accuracy, dynamic performance, stability, reliability and other indicators, and make comprehensive consideration according to specific application scenarios and requirements.
