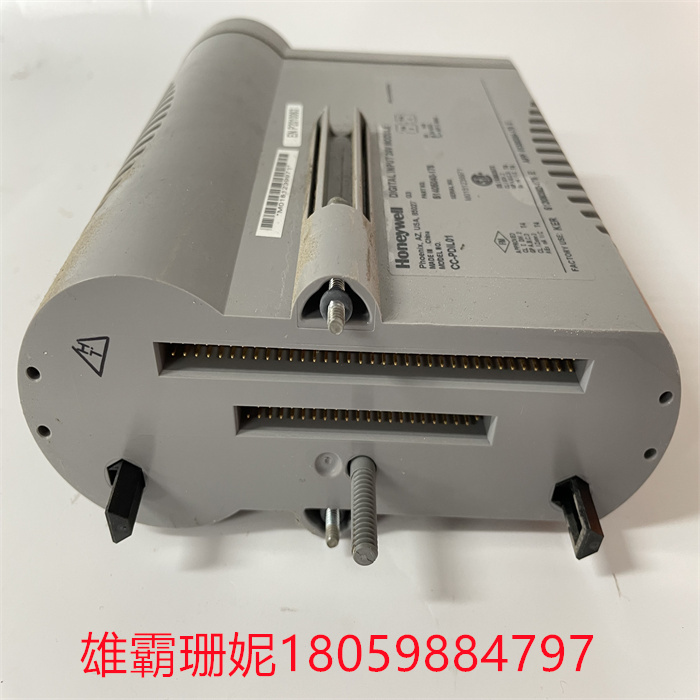

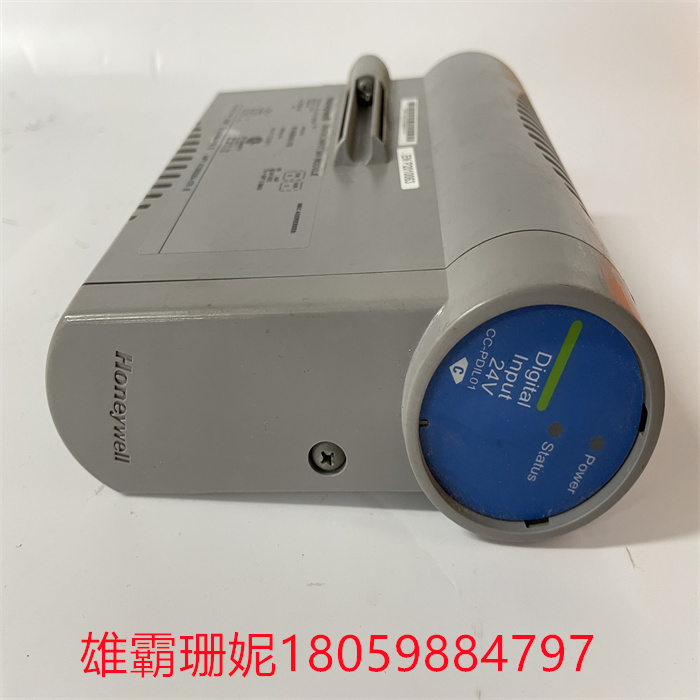

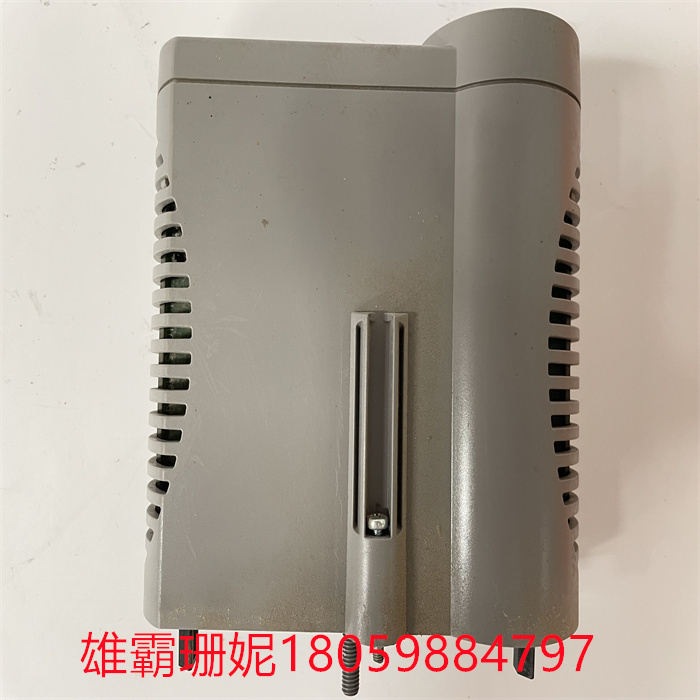

51305072-100 霍尼韦尔HONEYWELL 全新进口模拟输入输出板

51305072-100 霍尼韦尔HONEYWELL 全新进口模拟输入输出板

是用来控制伺服电机的一种控制器，其作用类似于变频器作用于普通交流马达，属于伺服系统的一部分，主要应用于高精度的定位系统。一般是通过位置、速度和力矩三种方式对伺服电机进行控制，实现高精度的传动系统定位，是传动技术的产品。

伺服驱动器是现代运动控制的重要组成部分，被广泛应用于工业机器人及数控加工中心等自动化设备中。尤其是应用于控制交流永磁同步电机的伺服驱动器已经成为国内外研究热点。当前交流伺服驱动器设计中普遍采用基于矢量控制的电流、速度、位置3闭环控制算法。该算法中速度闭环设计合理与否，对于整个伺服控制系统，特别是速度控制性能的发挥起到关键作用 。

在伺服驱动器速度闭环中，电机转子实时速度测量精度对于改善速度环的转速控制动静态特性至关重要。为寻求测量精度与系统成本的平衡，一般采用增量式光电编码器作为测速传感器，与其对应的常用测速方法为M/T测速法。M/T测速法虽然具有一定的测量精度和较宽的测量范围，但这种方法有其固有的缺陷，主要包括：1）测速周期内必须检测到至少一个完整的码盘脉冲，限制了可测转速；2）用于测速的2个控制系统定时器开关难以严格保持同步，在速度变化较大的测量场合中无法保证测速精度。因此应用该测速法的传统速度环设计方案难以提高伺服驱动器速度跟随与控制性能

It is a controller used to control the servo motor, and its role is similar to the frequency converter acting on the ordinary AC motor, which is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is the product of transmission technology.

Servo drive is an important part of modern motion control, which is widely used in industrial robots and CNC machining centers and other automation equipment. In particular, the servo drive used to control AC permanent magnet synchronous motor has become a research hotspot at home and abroad. The current, speed and position-3 closed-loop control algorithm based on vector control is widely used in the design of AC servo drivers. Whether the speed closed-loop design in this algorithm is reasonable or not plays a key role in the whole servo control system, especially in the performance of speed control.

In the speed closed loop of servo drive, the real-time speed measurement accuracy of motor rotor is very important to improve the dynamic and static characteristics of speed control of speed ring. In order to find the balance between measurement accuracy and system cost, incremental photoelectric encoder is generally used as the speed measurement sensor, and its corresponding common speed measurement method is M/T speed measurement. Although M/T tachometer has certain measuring accuracy and wide measuring range, it has its inherent defects, including: 1) at least one complete code pulse must be detected in the measuring period, which limits the measurable speed; 2) The timer switches of the two control systems used for speed measurement are difficult to maintain strict synchronization, and the accuracy of speed measurement cannot be guaranteed in the measurement occasions with large speed changes. Therefore, it is difficult to improve the performance of servo drive speed following and control by using the traditional speed loop design method

PR6423/000-030十C0N021
PR6424/010-120十C0N021
PR6423/011-010十C0N021
PR6423/012-130+C0N021
PR6423/00R-010+C0N021
PR6423/03R-010+CON021
PR6423/13R-010+C0N021
PR6424/002-031
PR6423/016-030十C0N021
PR6423/010-130十C0N021
PR6423/015-010十CONO21
PR6423/11R-131+C0N031
PR9268/301-100
PR9268/302-100
PR9376/010-011
A6120
A6410
