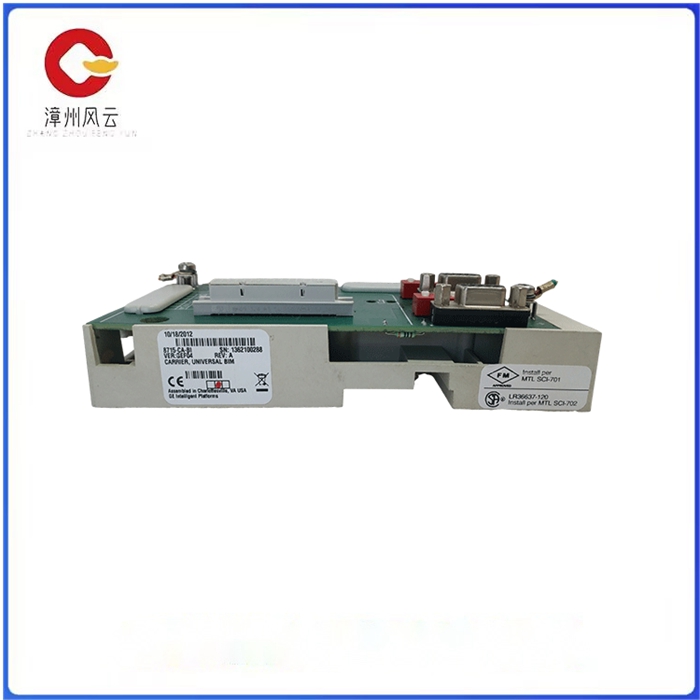

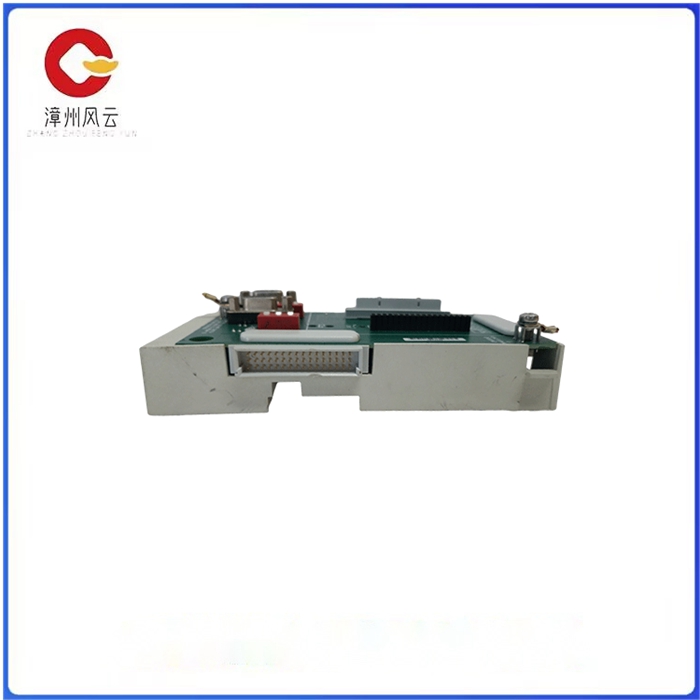

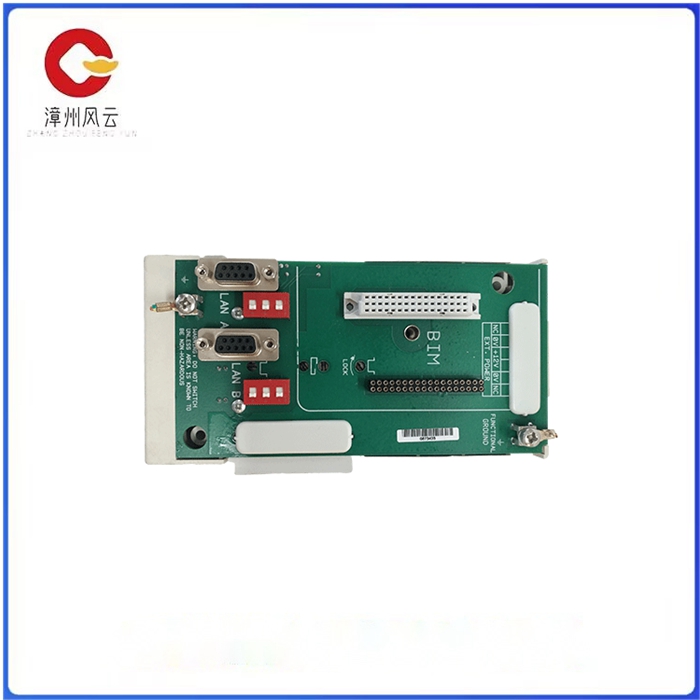

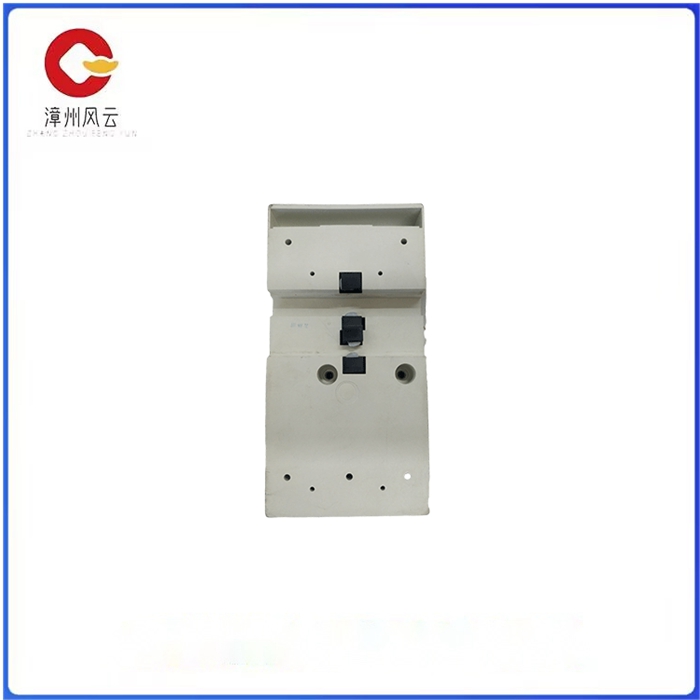

MTL-8715-CA-BI 总线接口模块底座 提供冗余选项

MTL-8715-CA-BI 总线接口模块底座 提供冗余选项

8715-CA-BI逻辑输入模块有16个安全相关的数字输入，用于触点制造商的48/120 VAC。对于安全地检测数字输入上的高电平，电压和电流阈值必须超过，见表8。

8个防短路电源分别馈送2个电源输出（S1至S8）。一个电源输出分配给每个数字输入。I/O模块的安全相关1oo2处理器系统控制和监控I/O数量I/O模块的数据和状态可供处理器模块使用通过冗余系统总线。

由于以下原因，系统总线具有冗余结构可利用性只有当两个系统总线模块都插入底板和SILworX配置。

MTL-8715-CA-BI 总线接口模块底座 提供冗余选项

The 8715-CA-BI logic input module has 16 safety-related digital inputs for contact manufacturer's 48/120 VAC. To safely detect high levels on digital inputs, voltage and current thresholds must be exceeded, as shown in Table 8.

Eight anti-short circuit power supplies each feed two power outputs (S1 to S8). A power output is assigned to each digital input. Security-related I/O modules 1oo2 processor system controls and monitors the number of I/ OS The data and status of the I/O module is available for use by the processor module via a redundant system bus.

For the following reasons, the system bus has redundant structure availability only when both system bus modules are plugged into the backboard and SILworX configuration.
