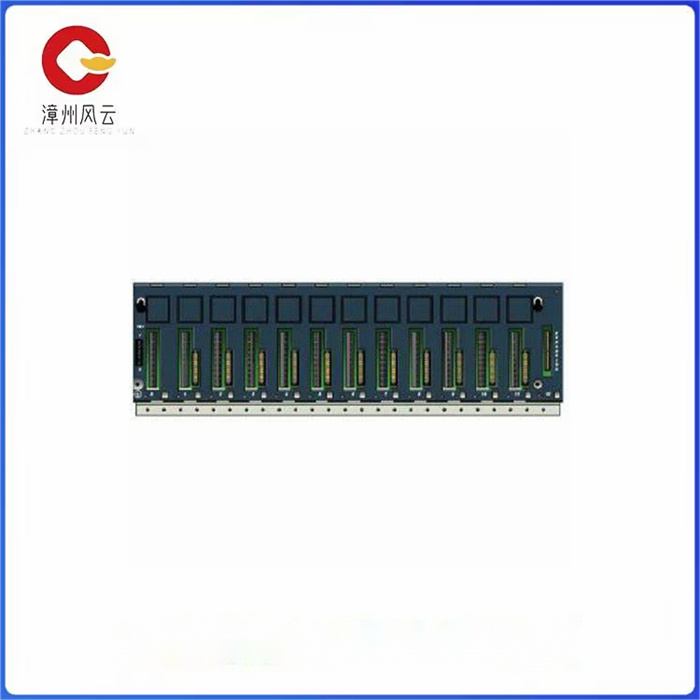

IC695CHS016是十六（16）插槽通用背板，是PACsystem RX3i可编程自动化控制器（PAC）系列的一部分。艾默生自动化的这款背板用于托管通用控制器和 I/O 基础模块，并集成了对外围组件互连 （PCI） 和高速串行总线的支持，从而支持 RX3i 模块以及传统的 90-30 系列 PLC 系列。

该IC695CHS016尺寸为 23.7 （宽） x 5.57 （高） x 5.80 （深） 或 601.98 （宽） x 141.5 （高） x 147.32 （d）），功耗为 600 mA @ 3.3 VDC 和 240 mA @ 5 VDC，由 RX3i 电源供电。该底板还支持模块的热插拔，这有助于提高系统的可用性和易于维护。

IC695CHS016背板也可以被某些人员称为机箱、机架或底板。无论使用什么术语，IC695CHS016都提供与背板、配电和主机内部通信的模块连接。此外，该底板具有用于本地扩展底座互连的必要接口，允许安装额外的模块并连接到IC695CHS016托管的同一总线。

IC695CHS016仅支持水平安装。它配有一个端子排，用于连接隔离的 24 VDC 输入和隔离的接地。建议至少固定在防护等级为 NEMA/UL Type 1 或 IP20 防护等级 （IEC60529） 的外壳的子面板上。必须遵循最小安装间隙，以允许自然空气冷却。背板所有侧面所需的最小安装间隙为 102 毫米或 4 英寸。

IC695CHS016背板是一种通用背板，具有 16 个插槽和一个用于隔离输入的端子排。背板由 GE Fanuc 制造，是 RX3i PACSystem 系列工业 PLC 组件的一部分，背板包括一个用于串行扩展的连接器和一个接地点以及一个接地条。背板兼容IC694系列的串行I/O组件、选件模块和基于PCI的IC695组件。IC695CHS016背板需要 102 毫米（4 英寸）的最小间隙才能获得最佳性能，并且用于水平安装。IC695CHS016通用背板的输入电压为 +24 伏，5 伏直流电时的内部功率为 240 毫安，而 3.3 伏直流电时的内部功率为 600 毫安。当安装在外壳内时，背板的防护等级可以从 IP 20 到 IP 54，具体取决于背板的使用位置。

GE IC695CHS016背板可以安装在机架中，如果安装得当，它将非常可靠。除了前面提到的组件类型外，IC695CHS016背板还接受 CPU、电源模块和串行扩展模块等组件。值得一提的是，有些组件需要多个插槽，例如需要 2 个空插槽的交流电源单元。这意味着每个单独的插槽都可以针对特定模块进行配置，而像IC695CHS016背板这样的背板是涉及许多组件的高性能系统的理想平台。背板由耐用材料制成，外壳包括以下尺寸：141.4 x 602 x 147.3毫米（5.5 x 23.7 x 5.8英寸）。

IC695CHSO16-DR 是 PACSystem RX3i 通用背板

The IC695CHS016 is a sixteen (16) slot universal backplane that is part of the PACsystem RX3i Programmable Automation Controller (PAC) family. This Emerson Automation backplane hosts the universal controller and I/O base modules, and integrates Peripheral component Interconnect (PCI) and high-speed serial bus support to support RX3i modules as well as the traditional 90-30 series PLC family.

The IC695CHS016 has dimensions of 23.7 (W) x 5.57 (H) x 5.80 (d) or 601.98 (W) x 141.5 (H) x 147.32 (d)), Power consumption is 600 mA@3.3VDC and 240 mA@5VDC, powered by an RX3i supply. The backboard also supports hot-swappable modules, which helps improve system availability and ease of maintenance.

The IC695CHS016 backplane may also be referred to by some as a chassis, rack, or baseboard. Regardless of the terminology used, the IC695CHS016 provides module connectivity to the backplane, power distribution, and the host's internal communication. In addition, the backboard has the necessary interfaces for local expansion dock interconnections, allowing additional modules to be installed and connected to the same bus hosted by the IC695CHS016.

The IC695CHS016 supports horizontal installation only. It comes with a terminal block for connecting isolated 24 VDC inputs and isolated ground. It is recommended to be fixed to at least a subpanel of a housing with protection grade NEMA/UL Type 1 or IP20 protection grade (IEC60529). Minimum installation gaps must be followed to allow natural air cooling. The minimum mounting clearance required for all sides of the backplane is 102 mm or 4 inches.

The IC695CHS016 backplane is a general-purpose backplane with 16 slots and a terminal block for isolating input. Manufactured by GE Fanuc as part of the RX3i PACSystem series of industrial PLC components, the backplane includes a connector for serial expansion and a ground point as well as a ground bar. The backplane is compatible with IC694 series serial I/O components, option modules, and PCI-based IC695 components. The IC695CHS016 backplane requires a minimum clearance of 102 mm (4 in) for optimal performance and is intended for horizontal mounting. The IC695CHS016 universal backplane has an input voltage of +24 volts and an internal power of 240 mA at 5 volts DC and 600 mA at 3.3 volts DC. When installed in the housing, the backplane's protection rating can range from IP 20 to IP 54, depending on where the backplane is used.

The GE IC695CHS016 backplane can be mounted in a rack, and when installed properly, it is very reliable. In addition to the previously mentioned component types, the IC695CHS016 backplane also accepts components such as cpus, power modules, and serial expansion modules. It is worth mentioning that some components require multiple slots, such as an AC power unit that requires 2 empty slots. This means that each individual slot can be configured for a specific module, and backplanes like the IC695CHS016 backplane are ideal platforms for high-performance systems involving many components. The back is made of durable material and the housing includes the following dimensions: 141.4 x 602 x 147.3 mm (5.5 x 23.7 x 5.8 inches).
