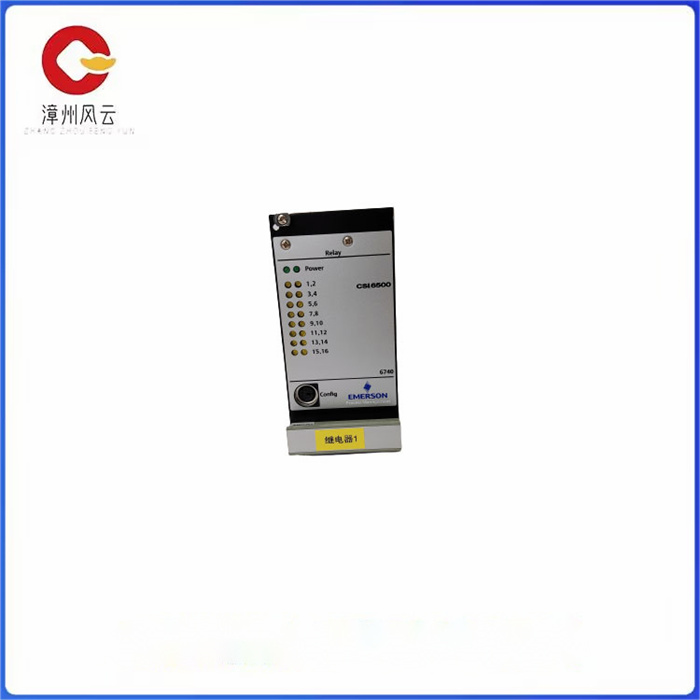

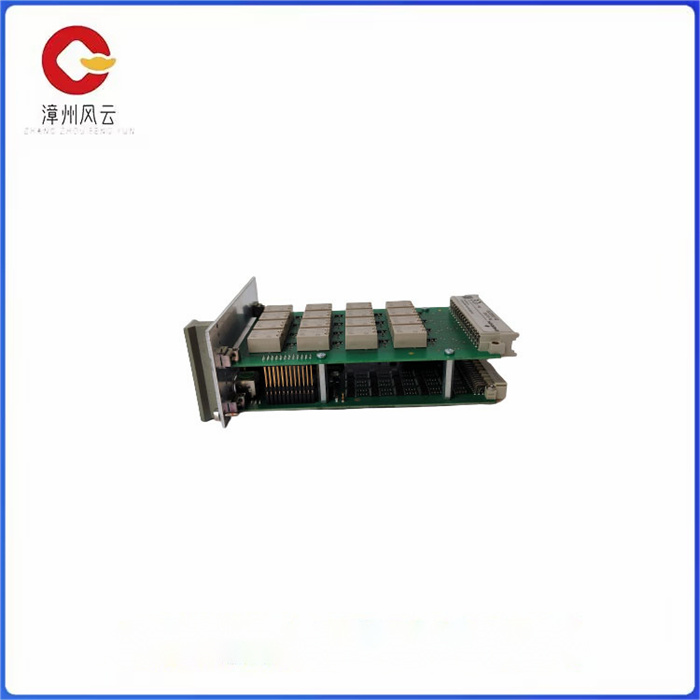

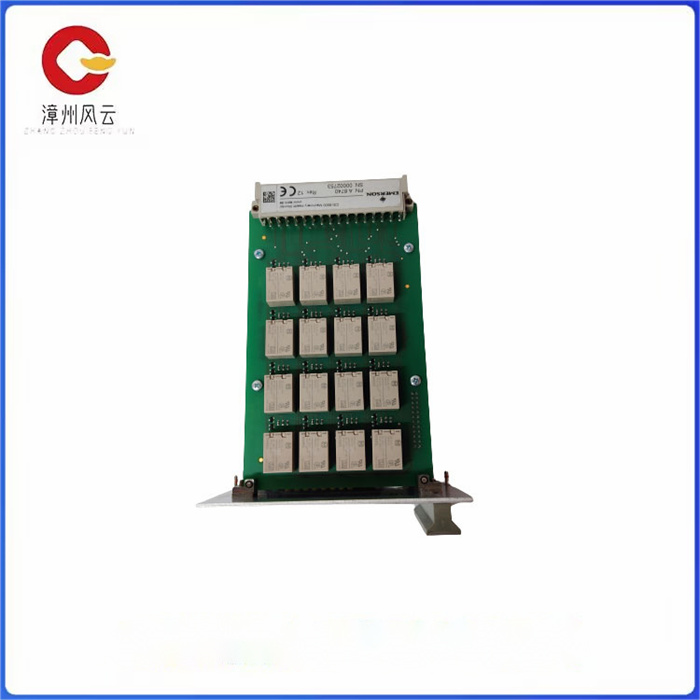

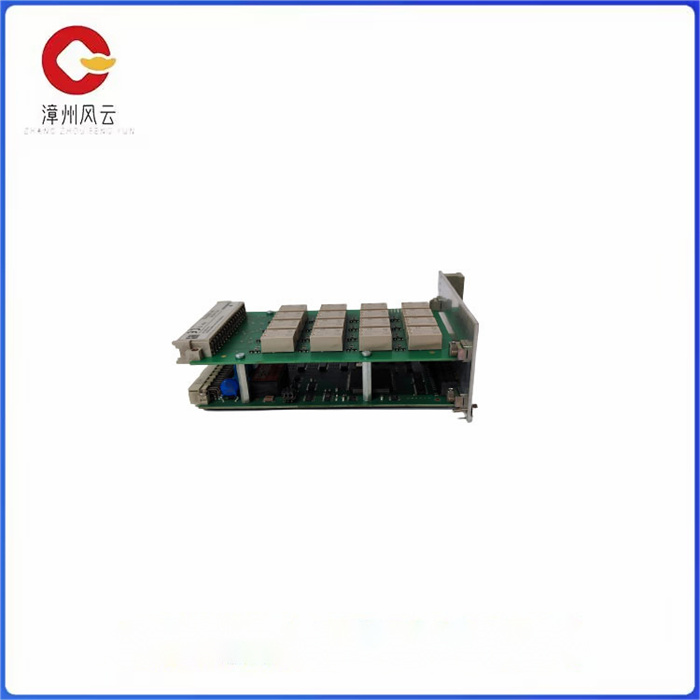

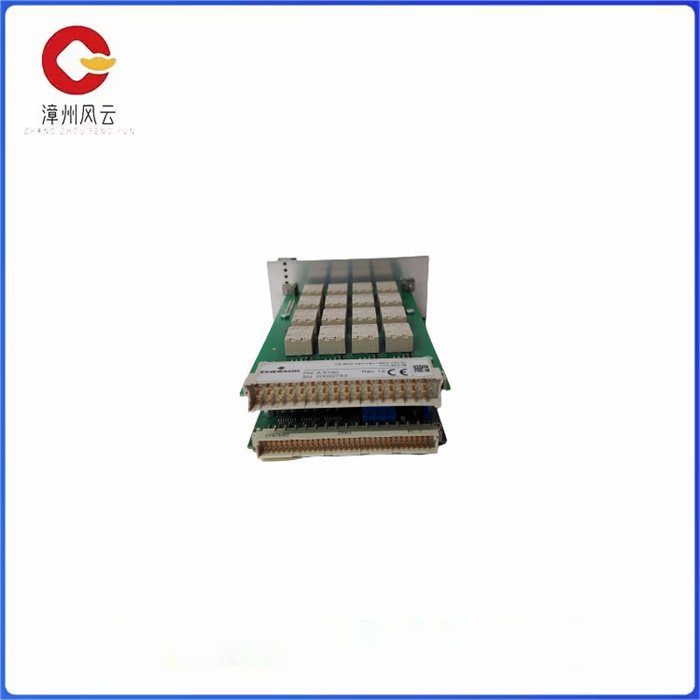

A6740 16 通道输出继电器模块 过程控制系统

A6740 16 通道输出继电器模块 过程控制系统

规格

● 3U 尺寸、2 插槽插入式模块将机柜空间要求比传统 6U 尺寸卡减少一半

● 符合 API 670 标准的热插拔模块

● 60 个输入、30 个逻辑表达式、16 个继电器输出

●6740 是适用于 IMR6000 的 12TE 宽模块系列机架

● 6740-10 是适用于IMR6500 系列机架的10TE 宽模块 CSI 6500 机械健康监控器是PlantWeb® 和AMS Suite 的组成部分。PlantWeb 与 Ovation® 和 DeltaV™ 过程控制系统相结合，提供操作集成的机械健康状况。AMS Suite 为维护人员提供先进的预测和性能诊断工具，以便尽早自信、准确地确定机器故障。16 通道输出继电器模块专为工厂最关键的旋转机械提供高可靠性而设计。该 2 插槽监视器与 CSI 6500 一起使用，构建完整的 API 670 机械保护监视器。应用包括蒸汽、气体、压缩机和水力涡轮机械。

  任何通道清除、警报或报警信号都可以选择作为 16 通道输出继电器模块的输入。使用布尔逻辑、应用时间延迟并选择输出继电器来完成配置。易于使用的软件提供图形逻辑显示，以图形方式指导用户完成配置

A6740 16 通道输出继电器模块 过程控制系统

specification

● The 3U size, 2-slot plug-in module reduces the cabinet space requirement by half compared to the traditional 6U size card

● API 670 compliant hot swappable modules

● 60 inputs, 30 logic expressions, 16 relay outputs

The 6740 is a 12TE wide module series rack for IMR6000

The 6740-10 is a 10TE wide module CSI 6500 Mechanical health monitor for IMR6500 series racks and is part of PlantWeb® and AMS Suite. PlantWeb is combined with Ovation® and DeltaV™ process control systems to provide operational integrated mechanical health. AMS Suite provides maintenance personnel with advanced predictive and performance diagnostic tools to confidently and accurately identify machine failures early on. The 16-channel output relay module is designed to provide high reliability for the plant's most critical rotating machinery. This 2-slot monitor is used with CSI 6500 to build a complete API 670 mechanical protection monitor. Applications include steam, gas, compressors and hydraulic turbomachinery.

Any channel clear, alarm, or alarm signal can be selected as input to the 16-channel output relay module. Use Boolean logic, apply the time delay, and select the output relay to complete the configuration. The easy-to-use software provides graphical logic displays that graphically guide users through configuration
