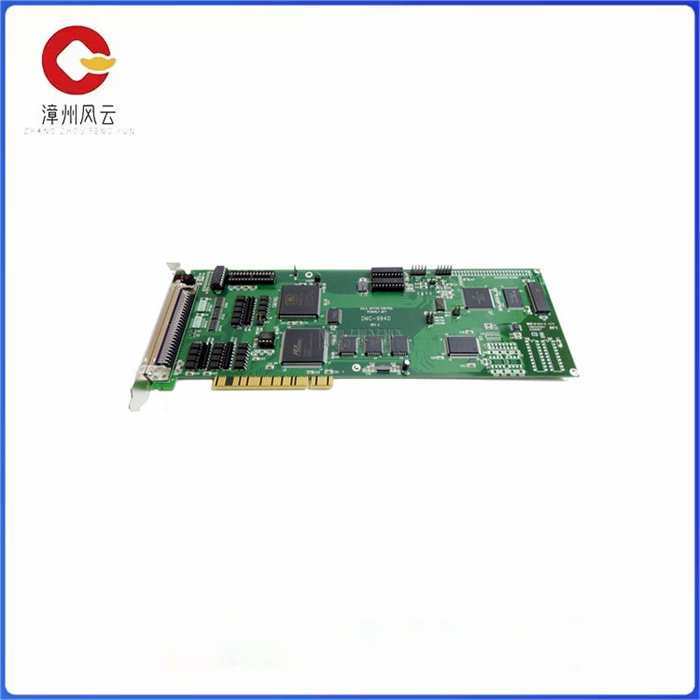

Galil DMC-9940 PCI 1-4轴（步进卡）

特 色

●  快速的沟通方式

1.PCI 总线

2.双位元或ASCII沟通模式

●  强大控制功能

1.控制1~4轴

2.编码器回馈频率: 12MHz

3.步进指令: 3MHz (脉冲及方向)

●  先进运动模式

1.八组独立多工程式

2.运动模式:速度控制,点对点定位,

  线性及圆弧插补,电子齿轮&凸轮,

  连续路径运动,原点

●  无以伦比的运动特性

1.速度/加速度立即控制功能,

  提供最佳的运动精度

2.可编程之速度/加速度曲线,并平稳运动

  能消除加速度的陡变 (加加速度, jerk)

3.可处理无限多组直线及圆弧插补

4.可执行双曲面及球面等连续路径运动

5.每次运动可执行2Giga单位的位移

6.各轴高速定位连结

7.中断处理高速指令

Galil DMC-9940 PCI 1-4轴（步进卡）

Characteristic colour

● Quick communication

1.PCI bus

2. Two-bit or ASCII communication mode

● Powerful control function

1. Control 1-4 axes

2. Encoder feedback frequency: 12MHz

3. Step instruction: 3MHz (pulse and direction)

● Advanced motion mode

1. Eight independent multi-engineering groups

2. Motion mode: speed control, point-to-point positioning,

Linear and circular interpolation, electronic gears & cams,

Continuous path motion, origin

● Unparalleled movement characteristics

1. Speed/acceleration control function,

Provides optimal motion accuracy

2. Programmable speed/acceleration curve and smooth motion

A sharp change that eliminates acceleration (jerk)

3. Can handle unlimited groups of straight line and arc interpolation

4. It can carry out continuous path movement such as hyperboloid and spherical surface

5. 2Giga units of displacement can be performed per movement

6. High-speed positioning and connection of each axis

7. Interrupt processing high-speed commands
