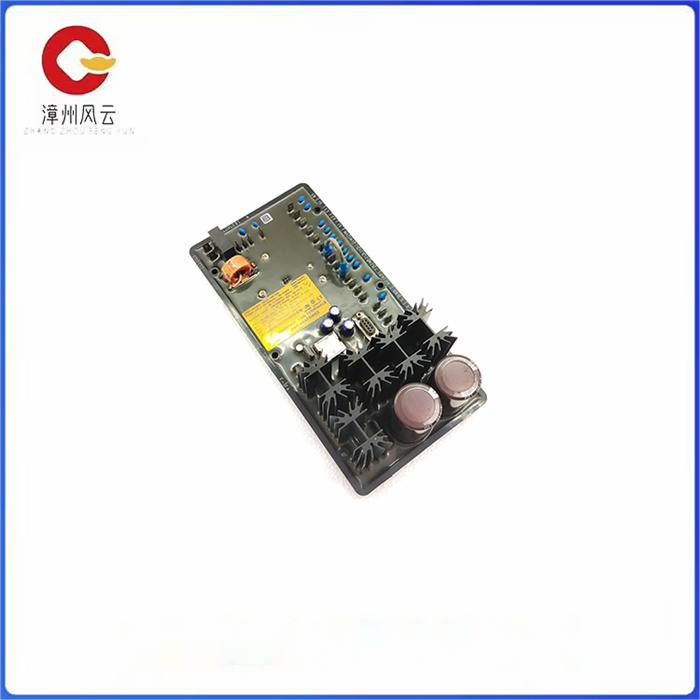

DECS-100 调压板 发电机电压调节器

DECS-100 调压板 发电机电压调节器

机械装置示意图图示一个利用重锤的离心作用来控制阀门开闭的机械装置示意图。两个蓝色的圆球是具有较大质量的重锤，红色的轴是旋转轴，整个机械是根据它的转速来进行控制的；

黑色的小圆圈是允许相对转动的连接，就像眼镜框与眼镜脚之间的连接，是可以相对转动的；浅绿色的是滑块，它随旋转轴转动，同时可以相对旋转轴上下移动；滑块里面有条槽，嵌着一个滚子（橘-）；

阀门可以沿黑色的管道横截面方向上下移动，从而控制通过管道的流体的流量，阀门的位置受与滚子连接的几根橘-的连杆控制。巴斯勒无刷励磁同步发电机DECS-100-A15调节器是巴斯勒电气的第五代基于微处理器的数字式自动励磁调节器。

DECS-100 调压板 发电机电压调节器

Schematic diagram of a mechanical device that uses the centrifugal action of a weight to control the opening and closing of a valve. The two blue balls are heavy weights with greater mass, the red axis is the rotating axis, and the whole machine is controlled according to its speed;

The small black circle is the connection that allows relative rotation, just like the connection between the frame and the foot of the glasses, which can be relative rotation; The light green is the slider, which rotates with the axis of rotation, and can move up and down relative to the axis of rotation; There is a groove inside the slider, embedded with a roller (orange -);

The valve can be moved up and down the direction of the black cross section of the pipe to control the flow of fluid through the pipe, and the position of the valve is controlled by several orange links connected to the roller. The Basler Brushless Excitation synchronous generator DECS-100-A15 regulator is the fifth generation of microprocessors based digital automatic excitation regulators from Basler Electric.
