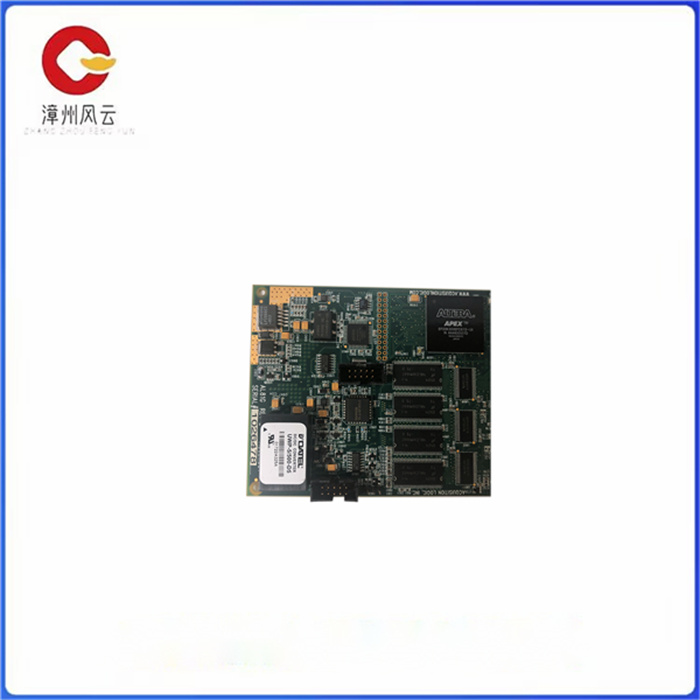

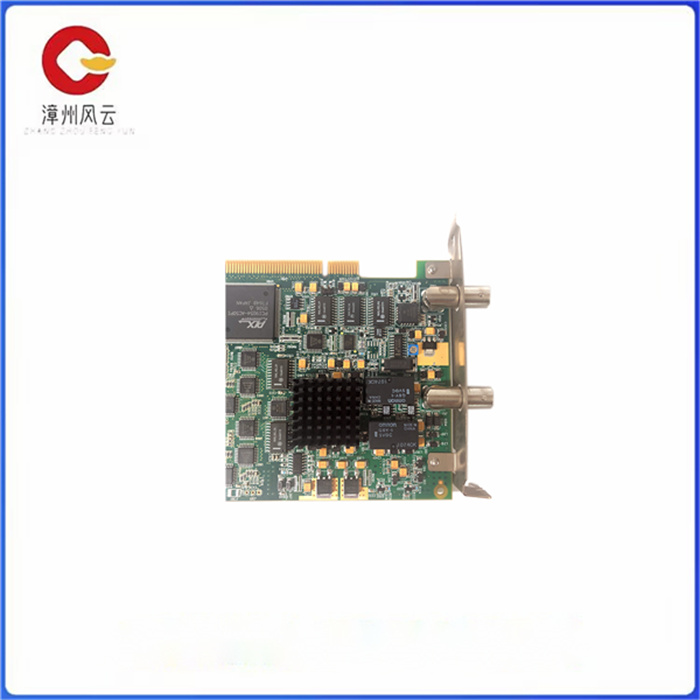

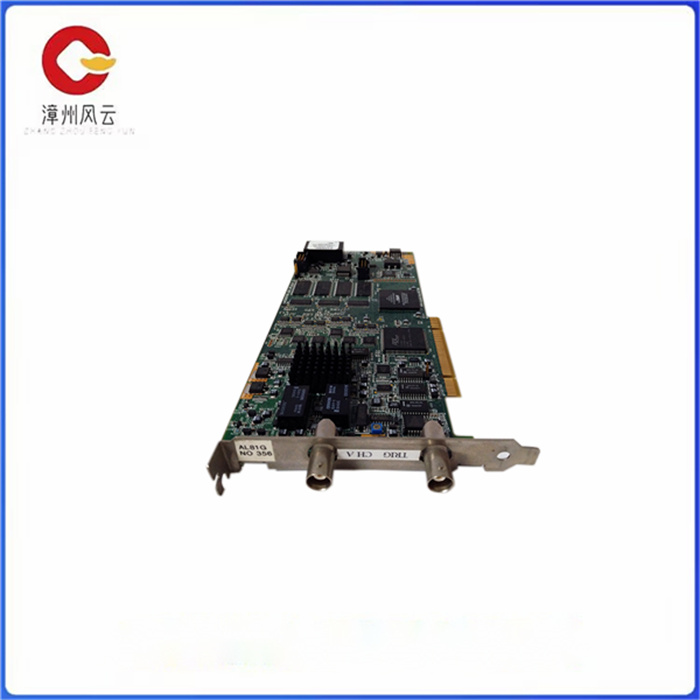

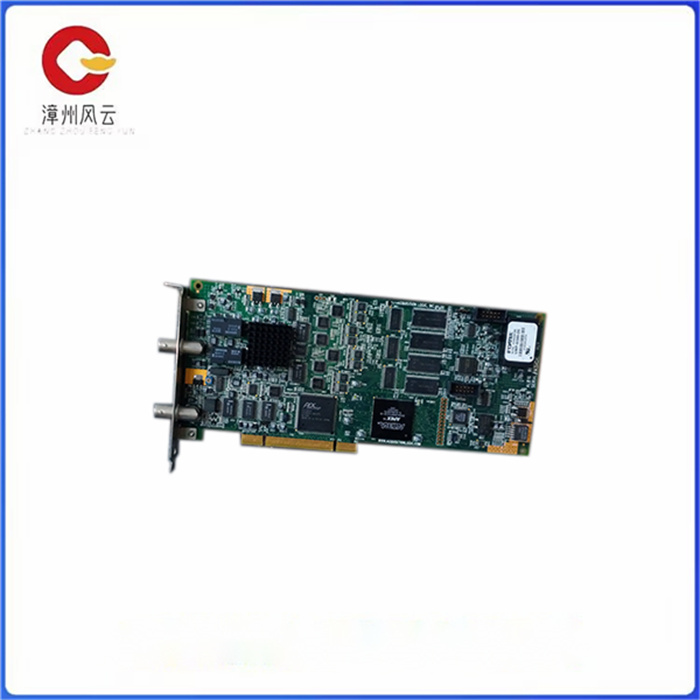

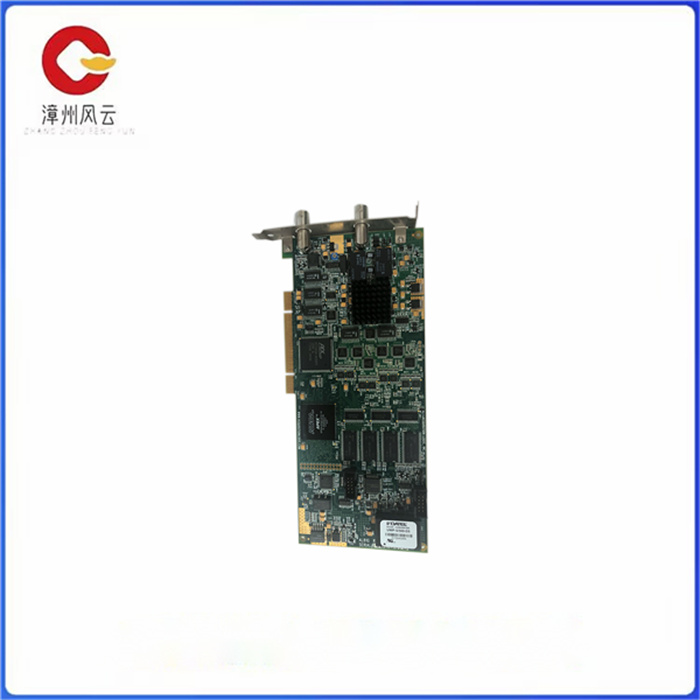

AL81G UTEX 采集逻辑模数转换器板 单通道模拟输入

AL81G UTEX 采集逻辑模数转换器板 单通道模拟输入

AL81G在使用高频超声波信号的高速描中很受欢迎。它最常用于数字化来自UT340或其他高频脉冲接收器的信号。

它具有8位分辨率的单通道数字化功能，采样频率最高可达1 GHz。这提供了约40 dB的有用动态范围，适合对高达约

200 MHz中心频率的RF信号进行数字化处理。

AL81G具有正交编码器或步进和方向信号的单输入。此功能使数字化仪能够跟上高速扫描系统的运动。

应用实例:

分辨率自动扫描仪，

鼢辨率测厚

先进金属、涂层和层压板的探伤

超声显微镜,

实验室扫描系统。

AL81G UTEX 采集逻辑模数转换器板 单通道模拟输入

The AL81G is popular in high speed maps that use high frequency ultrasonic signals. It is most commonly used to digitize signals from UT340 or other high frequency pulse receivers.

It has single-channel digitization with 8-bit resolution and sampling frequencies up to 1 GHz. This provides a useful dynamic range of about 40 dB, suitable for up to about

The RF signal at the 200 MHz center frequency is digitized.

The AL81G has an orthogonal encoder or single input for step and direction signals. This feature enables the digitizer to keep up with the movement of the high-speed scanning system.

Application example:

Resolution automatic scanner,

Voluminescent thickness measurement

Flaw detection of advanced metals, coatings and laminates

Ultrasonic microscope,

Lab scanning system.
