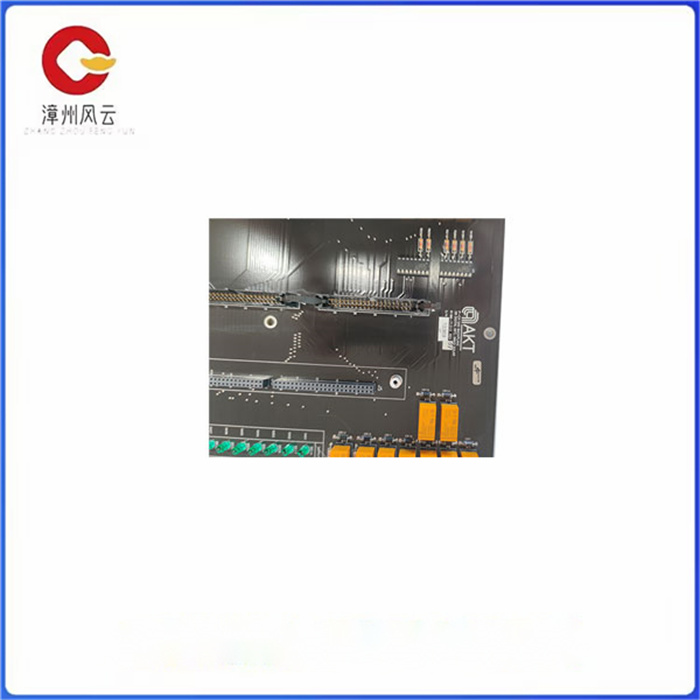

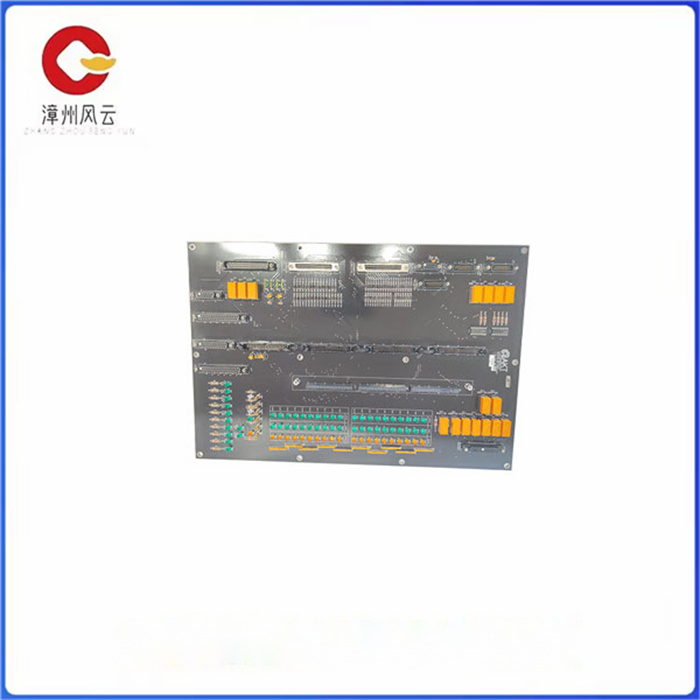

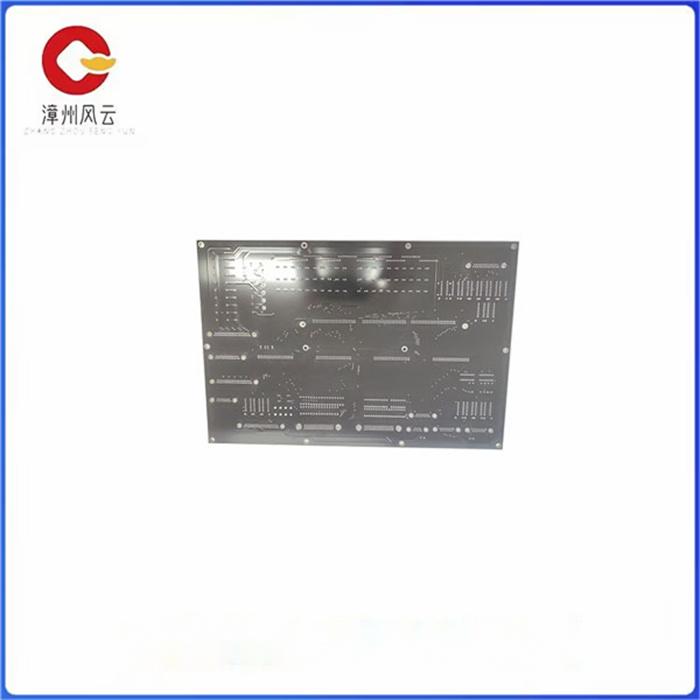

0100-71313AMAT电路板半导体品牌AppliedMaterials外壳颜色白色特点功能强输出频率ISO9001质量认证CCC工作温度240加工定制否I
产品详情
0100-71313AMAT是应用材料公司生产的高性能半导体制造设备。它被设计用于各种半导体制造工艺,包括沉积,蚀刻和清洁。
产品参数
-最大晶圆尺寸:300mm
-工艺室:单晶圆
-气体输送系统:mfc为基础,最多4种气体
-泵系统:涡轮分子泵,干泵和低温泵
-加热系统:石英灯加热
##应用程序
0100-71313 AMAT可用于各种半导体制造应用,包括:
-化学气相沉积(CVD)
-物理气相沉积(PVD)
-原子层沉积(ALD)
-等离子蚀刻
-反应离子蚀刻(RIE)
-湿式清洗
0100-71313AMAT is a high performance semiconductor manufacturing facility manufactured by Applied Materials. It is designed for use in a variety of semiconductor manufacturing processes, including deposition, etching, and cleaning.
Product parameter
- Maximum wafer size :300mm
- Process room: single wafer
- Gas delivery system :mfc based, up to 4 gases
- Pump systems: turbomolecular pumps, dry pumps and cryopumps
- Heating system: quartz lamp heating
## Application
0100-71313 AMAT can be used in a variety of semiconductor manufacturing applications, including:
- Chemical Vapor Deposition (CVD)
- Physical Vapor Deposition (PVD)
- Atomic Layer Deposition (ALD)
- Plasma etching
- Reactive ion Etching (RIE)
- Wet cleaning
