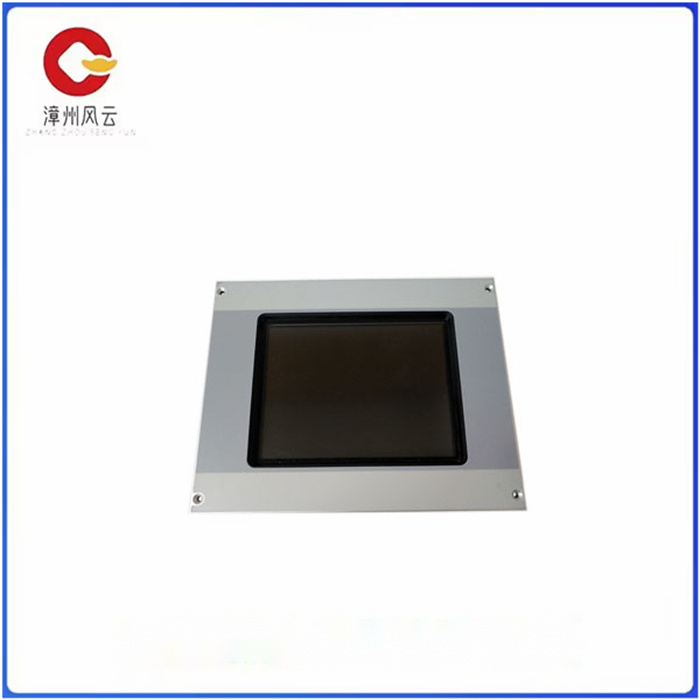

XV-440-10TVB-1-20 伊顿HMI触控产品

XV-440-10TVB-1-20 伊顿HMI触控产品

XV100是easyE4的理想伙伴。通过XV-102-A0-35TQRB-1E4触摸屏可以方便地显示项目。标准运行GALILEO的3.5英寸显示屏为远程和强大的可视化提供了一个经济高效的解决方案。

XV100触摸显示PLC可使用CODESYS V2或CODESYS V3进行编程。可以使用伊顿的伽利略软件实现可视化。此外，也可以将CODESYS用于可视化目的。免费提供的SWD-Assist软件支持SmartWire-DT电缆的配置。得益于集成的零件清单功能，订单处理变得快速而简单。

伊顿的默勒 XV100系列触摸显示器系列为所有空间有限的自动化应用提供紧凑、强大和灵活的解决方案。这些设备既可用作HMI控制面板，也可选择用作具有集成PLC功能的HMI/PLC组合。XV100设备配备了采用电阻触摸技术的TFT显示屏，尺寸从3.5英寸到10.4英寸不等。除内置以太网接口外，根据设备类型，还提供CAN、PROFIBUS、RS232和RS485接口以及与SmartWire-DT的连接。

可视化设备XV-363特别适用于需要红外触摸的坚固表面和平稳操作的应用。这些设备有5.7英寸、10英寸和12英寸对角线可供选择。这些设备既可以用作HMI操作面板，也可以用作具有集成PLC功能的HMI-PLC组合设备。对于这两种应用，该设备通过以太网、CANopen、Profibus或串行协议提供多种通信连接。使用功能强大的Galileo项目规划工具进行项目规划，该工具为直观的应用程序创建提供了多种可能性。例如，这包括多媒体元素的集成。伊顿提供用于编程PLC功能的XSOFT-CODESYS软件。

XV-440-10TVB-1-20 伊顿HMI触控产品

XV100 is the ideal partner for easyE4. Items can be easily displayed via the XV-102-A0-35TQRB-1E4 touch screen. The standard 3.5-inch display running GALILEO provides a cost-effective solution for remote and powerful visualizations.

XV100 Touch display PLC can be programmed using CODESYS V2 or CODESYS V3. Visualization can be achieved using Eaton's Galileo software. In addition, CODESYS can also be used for visualization purposes. The free SWD-Assist software supports the configuration of SmartWire-DT cables. Order processing is fast and simple thanks to the integrated part list function.

Eaton's Moeller XV100 Series of touch displays offers compact, powerful and flexible solutions for all space-constrained automation applications. These devices can be used either as HMI control panels or optionally as HMI/PLC combinations with integrated PLC capabilities. XV100 devices are equipped with TFT displays with resistive touch technology, ranging in size from 3.5 "to 10.4". In addition to built-in Ethernet interfaces, CAN, PROFIBUS, RS232 and RS485 interfaces and connectivity to SmartWire-DT are available depending on the device type.

The visualization device XV-363 is particularly suited for applications that require solid surfaces and smooth operation with infrared touch. These devices are available in 5.7-inch, 10-inch, and 12-inch diagonals. These devices can be used either as HMI operating panels or as HMI-PLC combination devices with integrated PLC capabilities. For both applications, the device provides multiple communication connections via Ethernet, CANopen, Profibus, or serial protocols. Project planning with the powerful Galileo project planning tool, which offers many possibilities for intuitive application creation. This includes, for example, the integration of multimedia elements. Eaton offers XSOFT-CODESYS software for programming PLC functions.
