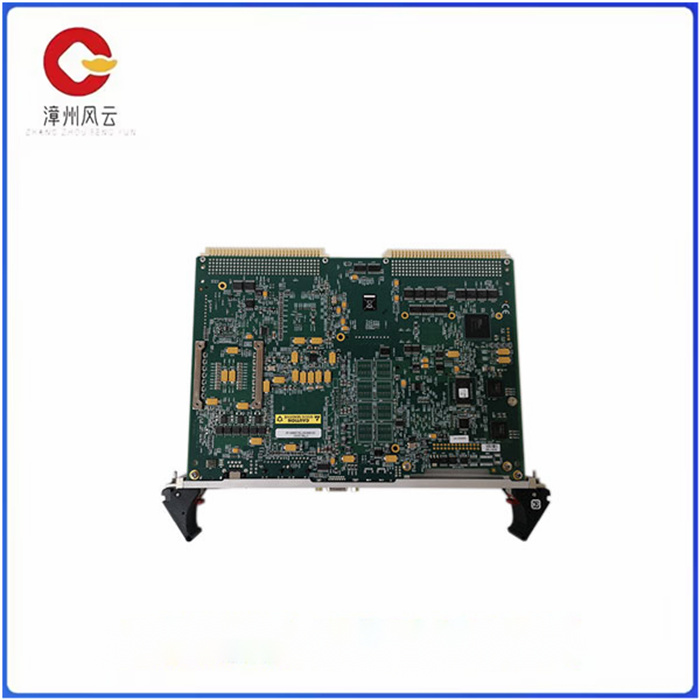

V7768双槽VME单板计算机(SBC)为系统设计人员提供了灵活性,能够经济高效地适应广泛多样的I/O功能，同时提供出色的处理性能。

作为Abaco Systems利用英特尔双核架构的首批产品之一， V7768通过英特尔酷睿2双核处理器、英特尔945GME高速芯片组和丰富的I/O集提供高达2.16 GHz的处理速度。为了使安装和维护更容易，V7768采用了EasyRail PMC安装系统，当只能从暴露的"顶部”接触时，允许安装PMC选项板。不再需要拆卸多插槽托架组件来接触PMC安装螺钉,这达大减少了配置时间。

V7768是GE发那科智能平台的VMEbus单板计算机，通过英特尔酷睿2双核处理器和高达2 gb的DDR2 SDRAM提供高达2.16 GHz的处理速度。该板集成了英特尔945GME Expresse芯片组，并提供了非常丰富的/0集，使其成为我们扩展的英特尔架构VME sbc系列的非常灵活的补充。I/O选项包括双千兆以太网，两个SATA接口，四个USB 2.0端口，前面板上的键盘/鼠标/SVGA,以及一个支持PCI-X的PMC站点。

V7768还提供了赛扬RM处理器选项，允许在最高工作温度限制上增加20度。V7768为GE发那科智能平台的PMC237CM1/V PMC打展板提供了板对板连接器,进一步提供了 客户定义的/O功能，除了V7768上的PCI-XPMC扩展点外，还为客户提供了三个额外的PMC扩展点。

V7768-320001 单板计算机 GE 操作系统使用的概念虚拟内存

The V7768 dual-slot VME single-board Computer (SBC) provides system designers with the flexibility to cost-effectively accommodate a wide variety of I/O functions while providing outstanding processing performance.

As one of the first products from Abaco Systems to take advantage of Intel's dual-core architecture, the V7768 offers processing speeds of up to 2.16 GHz through an Intel Core 2 Duo processor, Intel 945GME high-speed chipset, and a rich I/O set. To make installation and maintenance easier, the V7768 features the EasyRail PMC mounting system, which allows the PMC palette to be mounted when only accessible from the exposed "top". It is no longer necessary to remove the multi-slot bracket assembly to access the PMC mounting screws, which greatly reduces configuration time.

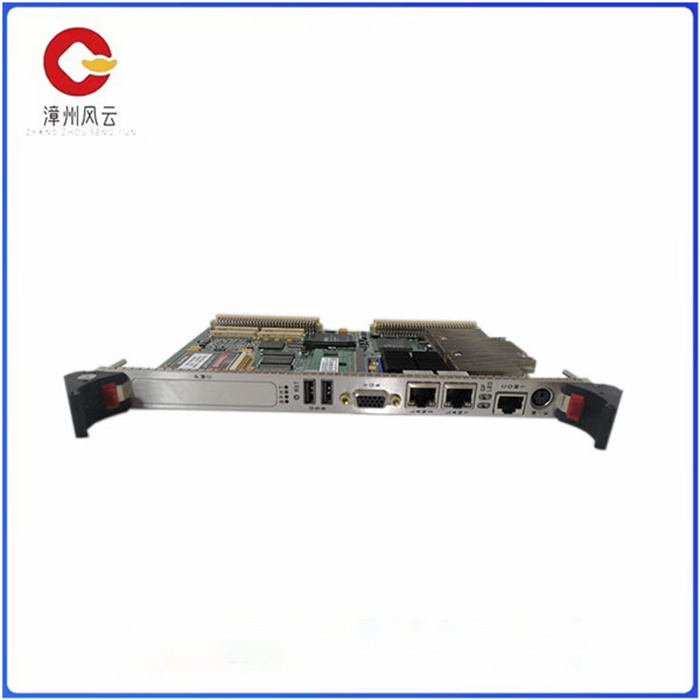

The V7768 is a VMEbus single-board computer for GE Fanuc's intelligent platform, offering processing speeds of up to 2.16 GHz via an Intel Core 2 Duo processor and up to 2 gb of DDR2 SDRAM. The board integrates the Intel 945GME Expresse chipset and offers a very rich /0 set, making it a very flexible addition to our extended Intel architecture VME sbc family. I/O options include dual Gigabit Ethernet, two SATA ports, four USB 2.0 ports, keyboard/mouse /SVGA on the front panel, and a PMC site with PCI-X support.

The V7768 also offers the Celeron RM processor option, allowing an additional 20 degrees to the maximum operating temperature limit. The V7768 provides a board-to-board connector for GE Fanuc's PMC237CM1/V PMC display board, further providing customer-defined /O capabilities in addition to the PCI-XPMC expansion on the V7768In addition, three additional PMC expansion points are available for customers.
