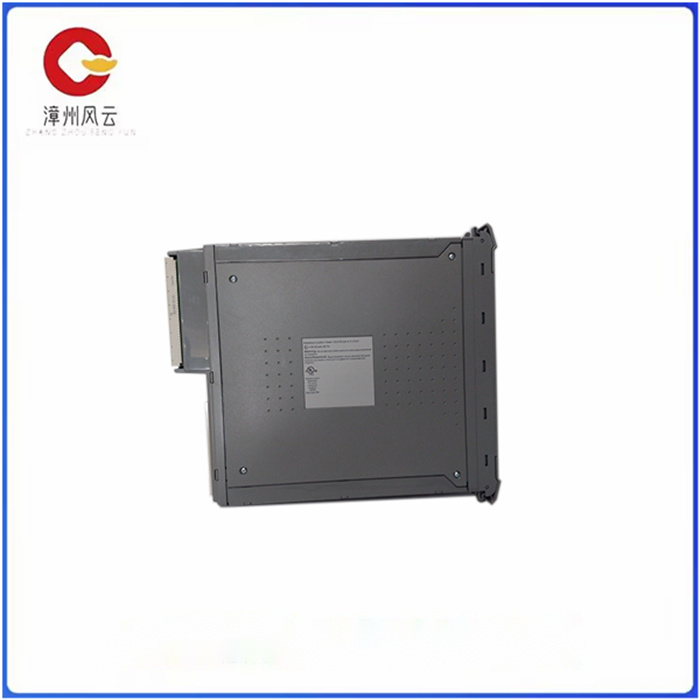

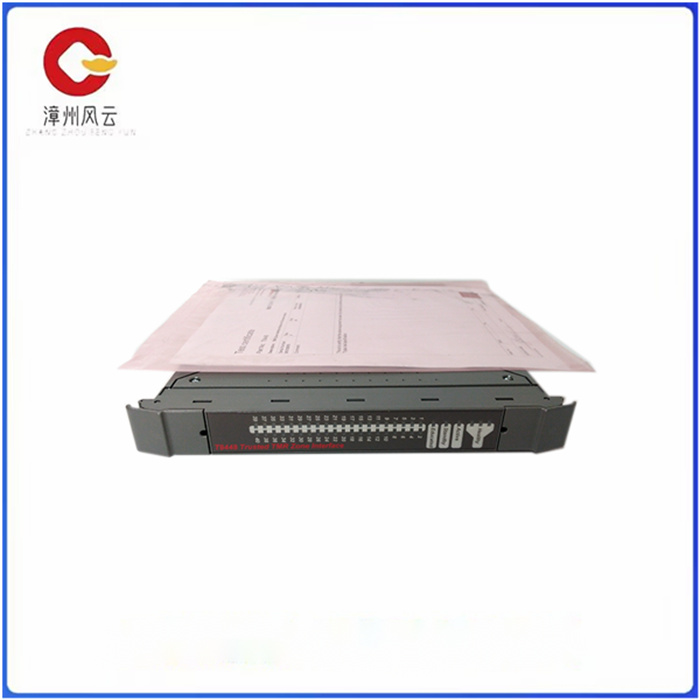

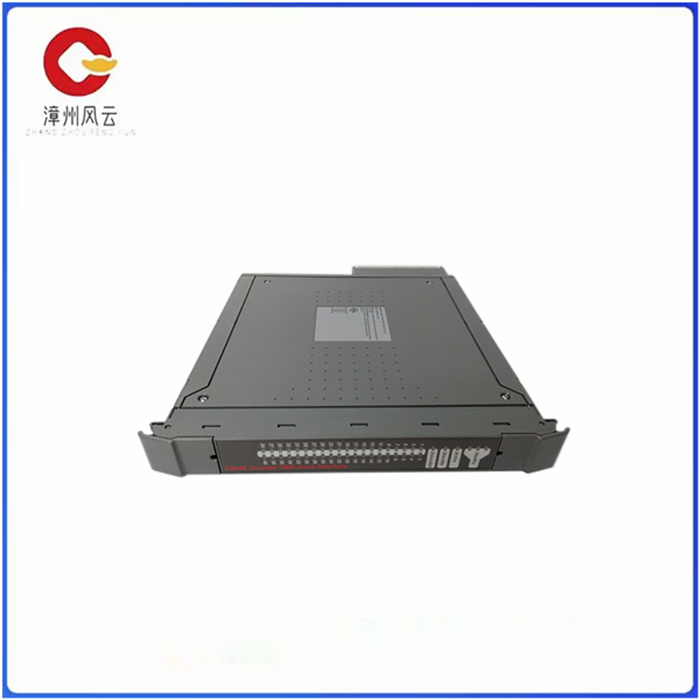

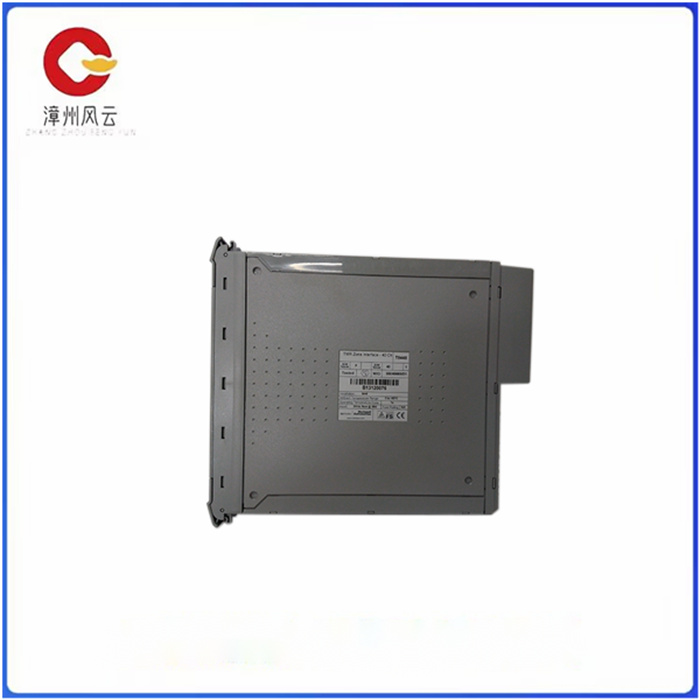

T8448 ICS TRIPLEX 多功能现场终端组件

T8448 ICS TRIPLEX 多功能现场终端组件

TrustedTM多功能现场终端组件(VFTA)设计用于作为与检测相关的现场设备之间的主接口火灾和气体危险的抑制，以及托管tm TMR区接口模块T8448。

VFTA的每个通道都是可配置的，可以启用多种现场设备被连接。这些设备包括产生模拟和数字输入信号，以及需要高达40V数字信号的输出设备直流。

40个频道被安排在5个权力集团，每个集团由8个相同的频道。每个电源组由双24V直流电源供电它们通过VFTA上的二极管“通用”。然后供给供给组内的每个通道。

电源电压通过一个315mA熔断器馈电到现场。输入信号(0-20mA)从现场备馈电通过50mA熔断器有效限制输入信号。电压通过输入的250R电阻发展(高精度0.1%)用于输入模块检测现场设备的地位。

输入模块40路到VFTA的线缆为在5个10路连接器上终止。双路24V直流电源通过5个4路连接器连接到VFTA。40个3路连接器用于字段循环。

VFTA设计用于安装在TS32或TS35 DIN中的任何一个根据需要在水平或垂直位置安装轨道。

T8448 ICS TRIPLEX 多功能现场终端组件

The TrustedTM Multifunctional Field Terminal Component (VFTA) is designed to act as a primary interface for fire and gas hazard suppression between field equipment associated with detection, as well as hosting the tm TMR zone interface module T8448.

Each channel of the VFTA is configurable, enabling multiple field devices to be connected. These devices include the generation of analog and digital input signals, as well as output devices that require up to 40V digital signals.

The 40 channels are arranged in 5 power groups, each group consisting of 8 identical channels. Each power pack is powered by dual 24V DC supplies which are "universal" via diodes on the VFTA. Each channel in the supply group is then supplied.

The supply voltage is fed to the site through a 315mA fuse. The input signal (0-20mA) is fed from the field standby to effectively limit the input signal through a 50mA fuse. The voltage is developed through the input's 250R resistance (precision 0.1%) for the input module to detect the position of the field equipment.

Cables from the input module 40 to the VFTA are terminated on five 10-way connectors. The dual 24V DC power supply is connected to the VFTA via five 4-way connectors. 40 3-way connectors for field loops.

The VFTA is designed for mounting rails in either the TS32 or TS35 DIN in a horizontal or vertical position as required.
