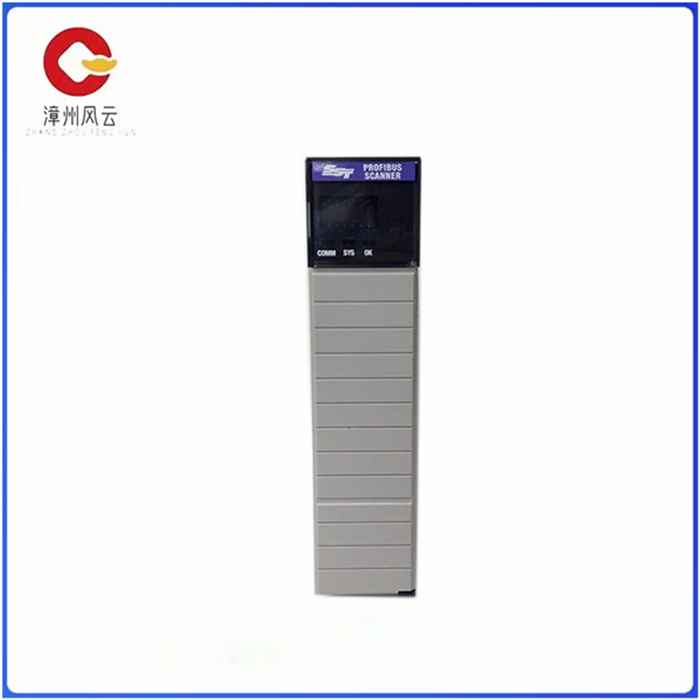

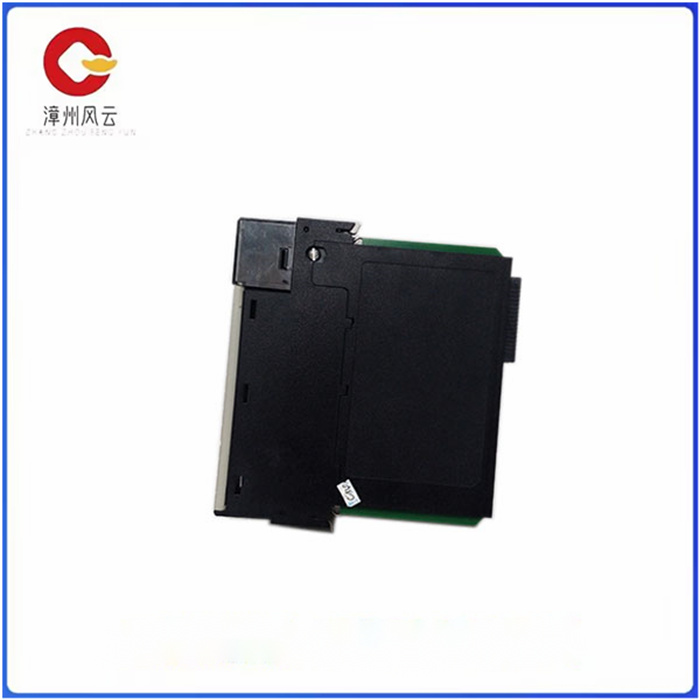

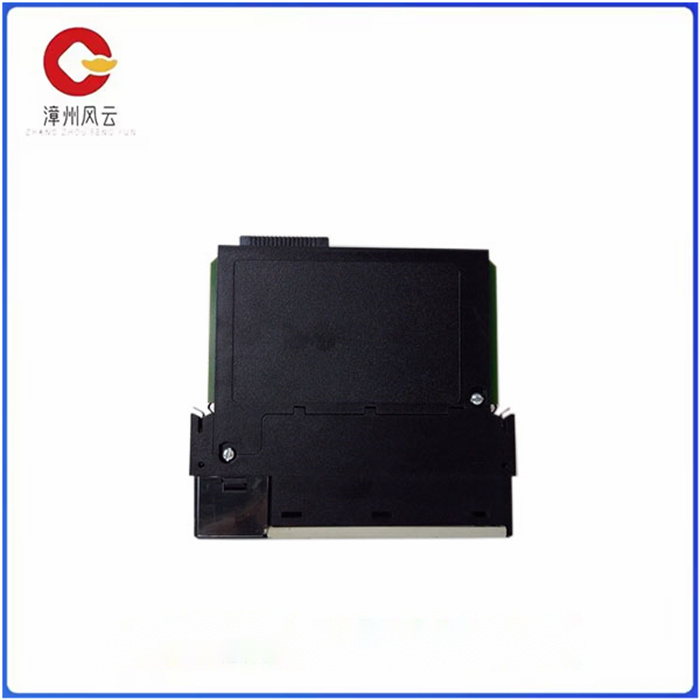

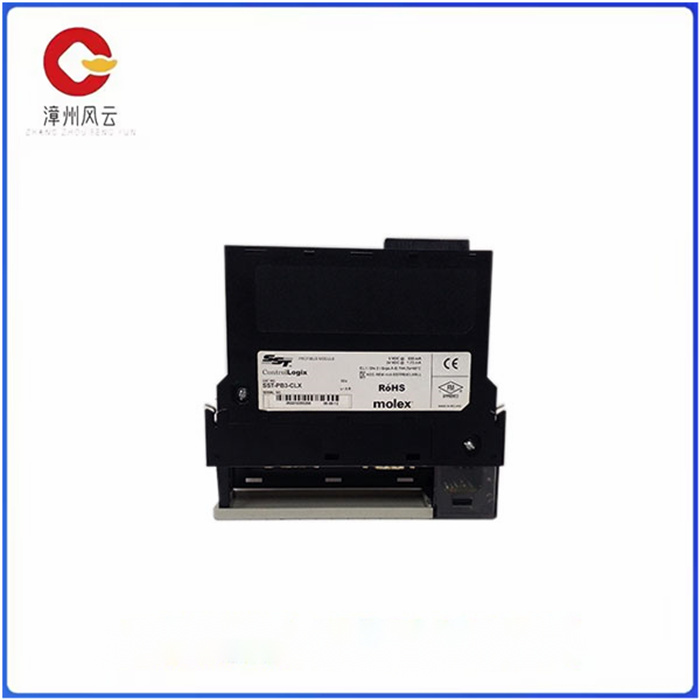

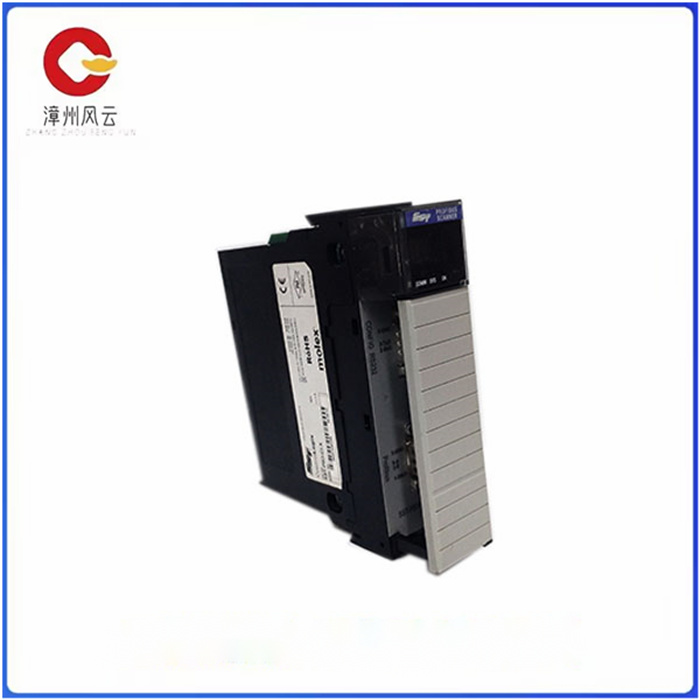

SST SST-PB3-CLX 调节器模块 主站和/或从站协议

SST SST-PB3-CLX 调节器模块 主站和/或从站协议

特征：

高级 Windows 工程配置和诊断控制台

自动 PROFIBUS 设备检测

最多可使用 （8） 个 SST 模块

支持本地和远程控制Logix机箱

Molex / Woodhead/ SST SST-PB3-CLX 系列 PROFIBUS 主从 ControlLogix 通信模块连接到罗克韦尔 ControlLogix 控制器到 PROFIBUS 网络。每个模块都有一个通信端口，用作 PROFIBUS-DP 主站和/或从站协议，以与其他 PROFIBUS 兼容设备交换数据。

SST-PB3-CLX-RLL 模块随附其“附加配置文件”（AOP），以便使用 RSLogix 5000 软件轻松集成到 ControlLogix 系统中。从 SST 模块到 ControlLogix 处理器的数据传输支持 2 种模式;“直接模式”允许在 I/O 处理器映像中映射 PROFIBUS 数据（496 个输入字节/496 个输出字节）和“分页” 模式“，允许从设置到 Logix CPU 内存中的用户定义的数据空间访问 PROFIBUS 数据的 1984 个输入字节和 1968 个输出字节。

远程链接库软件通过允许您远程监控或下载对 Profibus 配置的更改，为 BradCommunications SST Profibus 模块提供了附加功能。这是通过将数据从BradCommunications SST Profibus DP Master Configuration软件通过罗克韦尔自动化的RSLinx软件通过以太网路由到Allen-Bradley ControlLogix背板来完成的。Profibus 扫描仪可通过以太网/IP 或控制网络等 CIP 网络在本地机架或远程机架上使用。

SST SST-PB3-CLX 调节器模块 主站和/或从站协议

Features:

Advanced Windows engineering configuration and diagnostics console

Automatic PROFIBUS device detection

Up to (8) SST modules can be used

Supports local and remote control of Logix chassis

Molex/Woodhead/ SST SST-PB3-CLX Series PROFIBUS master/Slave ControlLogix communication modules connect to Rockwell ControlLogix controllers to the PROFIBUS network. Each module has a communication port that is used as a PROFIBUS-DP master and/or slave station protocol to exchange data with other ProFIbus-compatible devices.

The SST-PB3-CLX-RLL module comes with its "Additional Configuration File" (AOP) for easy integration into ControlLogix systems using the RSLogix 5000 software. Data transfer from the SST module to the ControlLogix processor supports two modes; "Direct Mode" allows mapping of PROFIBUS data (496 input bytes /496 output bytes) and "paging" mode in the I/O processor image, Allows access to 1,984 input bytes and 1,968 output bytes of PROFIBUS data from Settings to user-defined data Spaces in Logix CPU memory.

The Remote link library software provides additional functionality to the BradCommunications SST Profibus module by allowing you to remotely monitor or download changes to the Profibus configuration. This is done by routing data from BradCommunications SST Profibus DP Master Configuration software to Allen-Bradley over Ethernet via Rockwell Automation's RSLinx software The ControlLogix backplane does this. Profibus scanners can be used on local racks or remote racks via CIP networks such as Ethernet /IP or control networks.
