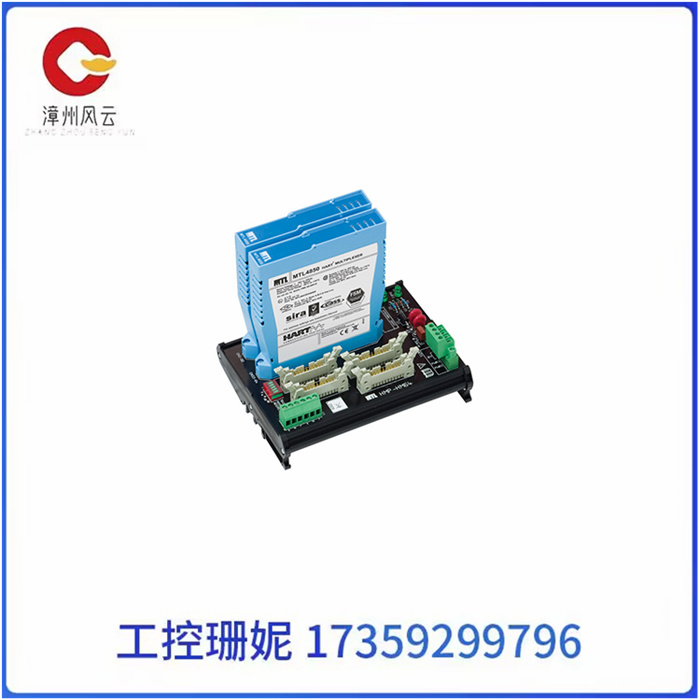

MTL 4850 MTL仪器多路复用器 在现场智能设备

MTL 4850 MTL仪器多路复用器 在现场智能设备

MTL4850 HART多路复用器用于创建众多之间的双向通信通道

支持hart的现场设备和工厂资产监测/控制系统。每个多路复用模块

可以将HART数据最多32个现场通道合并为单个RS485信号，以便继续连接到PC基于仪器管理软件，从而简化布线，降低每通道成本。

MTL4850结合了HART调制解调器、电源调节器和所有必要的功能

信号交换和寻址电路以复用HART数据。它提供了一个紧凑、方便和成本有效的构建块，可以轻松地集成到新的和现有的安装中，特别是作为合作伙伴

适用于伊顿MTL4500系列本质安全接口。它是我们流行的MTL4840系列的现代版本进一步简化了系统

MTL4850多路复用器使用户能够访问现代现场提供的有价值的HART数据

设备提供的常规4/20mA环路信号之外。许多早期过程安装

世界各地的项目在启动时都没有利用支持hart的设备的数据，因此

MTL4850为资产管理以及明显的实时状态和数据提供了一个简单的升级路径

现场设备的配置信息。

目前市场上的大多数分布式控制系统(DCS)都具有通过HART通信的能力

模拟输入和输出通道的信息，但许多安全系统(SIS和F&G)没有。

因此，HART多路复用器的主要用途之一是提供HART通信

连接到安全系统的现场仪器。在这样的实现中，HART多路复用器是至关重要的不会干扰安全系统的模拟回路

MTL 4850 MTL仪器多路复用器 在现场智能设备

The MTL4850 HART multiplexer is used to create a number of two-way communication channels between them

Support hart's field equipment and plant asset monitoring/control systems. Each multiplex module

Up to 32 field channels of HART data can be combined into a single RS485 signal for continued connection to PC-based instrument management software, simplifying cabling and reducing cost per channel.

The MTL4850 combines a HART modem, a power regulator, and all the necessary features

Signal switching and addressing circuits to reuse HART data. It provides a compact, convenient and cost effective  building block that can be easily integrated into new and existing installations, especially as a partner

For Eaton MTL4500 series intrinsically secure interface. It is a modern version of our popular MTL4840 series that further simplifies the system

The MTL4850 multiplexer gives users access to the valuable HART data provided by the modern field

Outside of the regular 4/20mA loop signal provided by the device. Many early process installations

Projects around the world were launched without taking advantage of data from HART-enabled devices, so

The MTL4850 provides an easy upgrade path for asset management and obvious real-time status and data

Configuration information about onsite devices.

Most distributed control systems (DCS) on the market today have the ability to communicate via HART

The information of the input and output channels is simulated, but many security systems (SIS and F&G) do not.

Therefore, one of the main uses of HART multiplexers is to provide HART communication

Field instruments connected to safety systems. In such an implementation, the HART multiplexer is critical to the analog loop that does not interfere with the safety system
