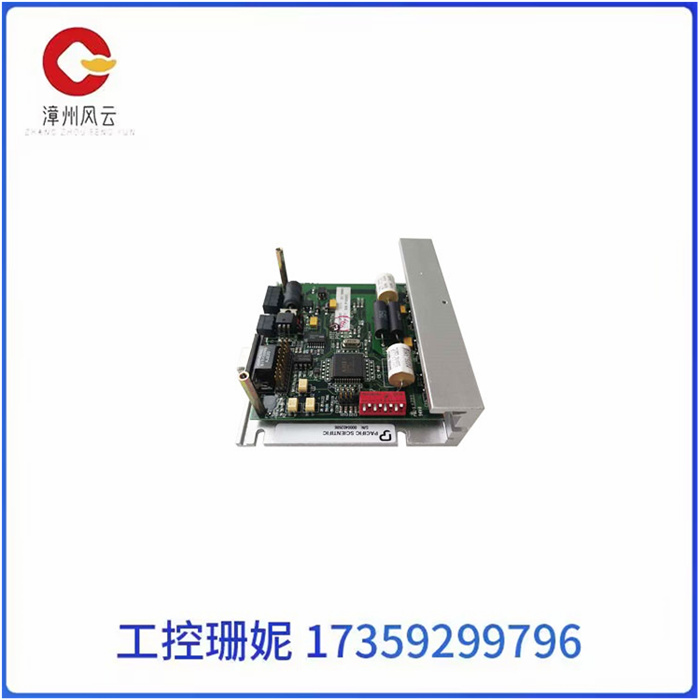

6410-001-C-N-N  步进电机驱动控制器

6410-001-C-N-N  步进电机驱动控制器

特征

单电源输入

输入电压为 24 至 75 VDC，适用于各种电源

输出电流可在 0.625 至 5 A RMS 范围内调节，带 3 位 DIP 开关

4 相双极性斩波器驱动，可实现出色的电流调节和低纹波电流

微步分辨率可通过DIP开关选择，每转高达51,200步

在许多应用中，怠速电流降低可减少电机发热

可选步进滤波器可抑制步进输入端的噪声

故障保护：

线对线和线对中性短裤

内部电源欠压

总线过电压

紧凑的尺寸

6410-001-C-N-N  步进电机驱动控制器

trait

Single power input

The input voltage is 24 to 75 VDC, suitable for a variety of power supplies

The output current can be adjusted from 0.625 to 5 A RMS with a 3-position DIP switch

4-phase bipolar chopper drive for excellent current regulation and low ripple current

Microstep resolution can be selected by DIP switch up to 51,200 steps per turn

In many applications, the idle current reduction reduces motor heat

The optional step filter suppresses the noise at the step input

Failure protection:

Line-to-line and line-to-line unisex shorts

Internal power supply undervoltage

Bus overvoltage

Compact size

6410-001-C-N-N  步进电机驱动控制器
