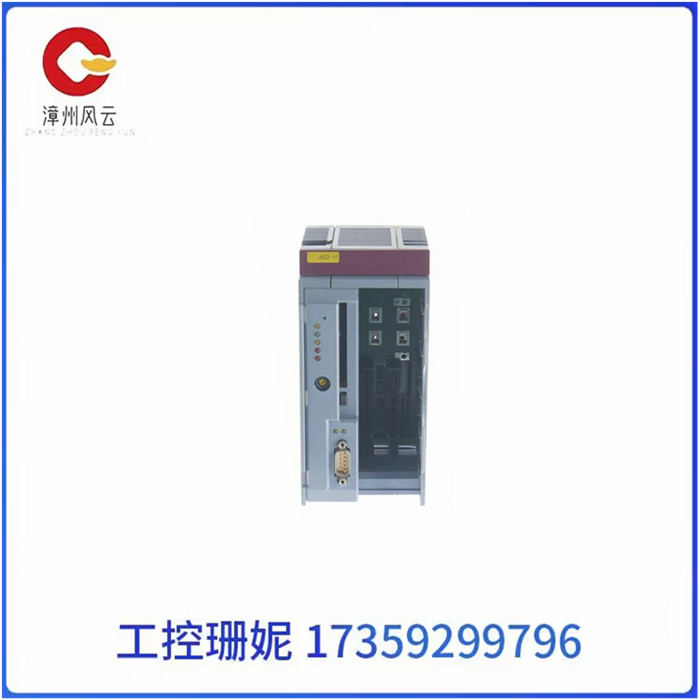

3CP260.60-1 CPU模块 安全系统

3CP260.60-1 CPU模块 安全系统

除了电缆与连接器机械方面之外，技术规格说明书还考虑了一些电气问题以确保外部连接的驱动器满足静电放电(ESD)与电磁干扰(EMI)辐射与敏感性的规章要求。图3还显示了使用罩在信号导线所有四个侧面上的一个金属屏蔽罩来屏蔽连接器，而且连接器末端还有凸边，用来确保为驱动器与PC机壳提供一个良好接地通路。同时，电缆末端连接器所有四个侧面都有金属保护，确保在电缆与连接器之间提供良好的接地。

与标准内部连接器相比，插座中的信号触点凹进插座盒凹得更深，这将有助于预防接近高速信号触点的任何静电放电。使用金属屏蔽罩可以提供一个良好的接地回路，它将在插入或者拔掉电缆的时候释放掉任何静电放电电荷。

这里提供的接地通路将有助于来自外部驱动器的任何电磁干扰(EMI)辐射的最小化，但是还需要采取额外步骤，通过增加一个包裹电缆不同信号对的特别屏蔽层来改装电缆。在一个标准内部电缆内，每一对信号线都被分别屏蔽。这种屏蔽用于外部电缆，但是还要进行额外的包裹。

正如上面总结的变化所展示的那样，在用于内部与外部串行ATA应用的电缆与连接器结构之间存在有重要差异，以适用于特定的使用需求。因为存在着这些差异，连接器就可以被锁住以防止在外部应用中误用未经屏蔽的内部电缆，它将是不合适的。为了实现这个目标，插座内的内部信号连接器被做的更宽，而电缆末端连接器的总宽度更窄，因此内部电缆不能被插到外部连接器当中。另一种区分两个连接器的简便方式就是内部电缆有一个L型舌片，作为简单的盲配（blindmate）钥匙。对于外部连接器来说，通过将连接器内的信号触点从中心移开来完成盲配（blindmating）定位。

3CP260.60-1 CPU模块 安全系统

In addition to the mechanical aspects of the cables and connectors, the technical specifications also take into account a number of electrical issues to ensure that externally connected drivers meet regulatory requirements for electrostatic discharge (ESD) and electromagnetic interference (EMI) radiation and sensitivity. Figure 3 also shows the use of a metal shield covering all four sides of the signal wire to shield the connector, with a convex edge at the end of the connector to ensure a good grounding path between the driver and the PC housing. At the same time, all four sides of the cable end connector have metal protection, ensuring good grounding between the cable and the connector.

The signal contacts in the socket are recessed more deeply into the socket box than the standard internal connectors, which will help prevent any electrostatic discharge near the high-speed signal contacts. The use of a metal shield provides a good grounding loop, which will release any electrostatic discharge charges when inserting or unplugging the cable.

The ground path provided here will help minimize any electromagnetic interference (EMI) radiation from the external drive, but additional steps need to be taken to modify the cable by adding a special shield that wraps the different signal pairs of the cable. Within a standard internal cable, each pair of signal lines is shielded separately. This shielding is used for external cables, but additional wrapping is required.

As the changes summarized above demonstrate, there are important differences between cable and connector construction for internal versus external serial ATA applications to suit specific usage needs. Because of these differences, the connector can be locked to prevent misuse of the unshielded internal cable in external applications, where it would be inappropriate. To achieve this, the internal signal connector in the socket is made wider, and the overall width of the cable end connector is narrower, so that the internal cable cannot be plugged into the external connector. Another easy way to distinguish between the two connectors is that the internal cable has an L-shaped tongue that acts as a simple blindmate key. For external connectors, blindmating is accomplished by moving the signal contacts within the connector away from the center.

3CP260.60-1 CPU模块 安全系统

型号推荐

A-B 1769-IF4XOF2 Allen-Bradley 罗克韦尔模块 AB 810A-01B 卡件

AB 1746-P2 Allen-Bradley 罗克韦尔模块 AB 810-A00A 卡件

A-B 1783-BMS20CGL Allen-Bradley 罗克韦尔模块 AB 81004-286-52-R 卡件

A-B 1746-NR4 Allen-Bradley 罗克韦尔模块 AB 81001-450-51-R 卡件

AB 2711P-T12W22D9P Allen-Bradley 卡件 AB 81000-199-52-R 卡件

AB 1786-RPFPXL/B Allen-Bradley 卡件 AB 808-D2 卡件

AB 1756-RM/A Allen-Bradley 卡件 AB 808-D1 卡件

AB 74102-468-51 Allen-Bradley 卡件 AB 808-C4 卡件

AB D674A906U01 Allen-Bradley 卡件 AB 8052-SA 卡件

AB MVI56E-MCM Allen-Bradley 卡件 AB 8051-SA 卡件

AB 1762-l40awa Allen-Bradley 卡件 AB 803-PL6 卡件

AB 80190-580-51 Allen-Bradley 卡件 AB 803-PL3 卡件
