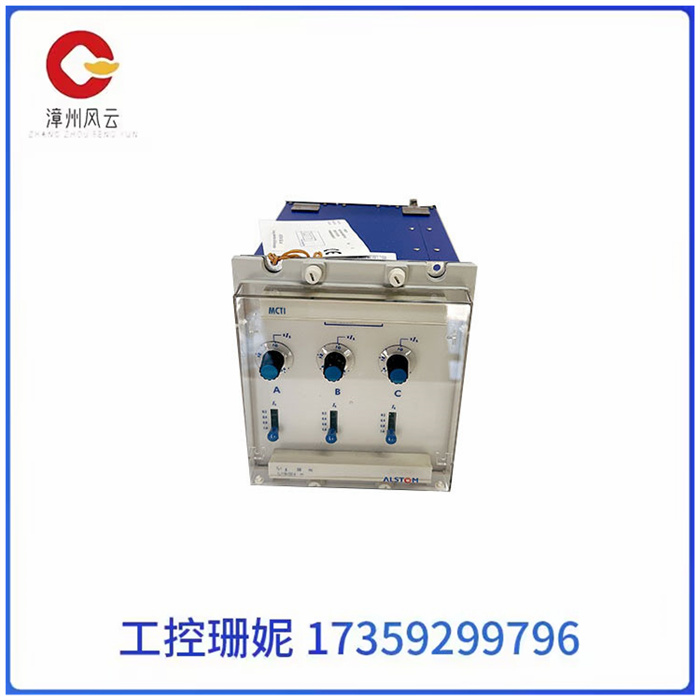

MCTI40N1AB0751G ALSTOM 梯形逻辑控制 通信接口模块

MCTI40N1AB0751G ALSTOM 梯形逻辑控制 通信接口模块

辅助继电器是用软件实现的，它们不能接收外部的输入信号，也不能直接驱动外部负载，是一种内部的状态标志，相当于继电器控制系统中的中间继电器。

PLC 内有很多辅助继电器，它们都不能接收外部的输入信号，也不能直接驱动外部负载，在 PLC 内部只起传递信号的作用，不与 PLC 外部发生联系，是一种内部的状态标志，作用相当于继电器控制系统中的中间继电器。 它的常开、常闭触点在 PLC 内部编程时可无限次使用，该触点不能驱动外部负载，其线圈由 PLC 内的各种软元件的触点驱动，可使程序的逻辑结构更加清晰。

辅助继电器分类

1. 通用辅助继电器

FX系列PLC的通用辅助继电器没有断电保功能。在FX系列PLC中，除了输入继电器和输出继电器的元件号采用八进制外，其他编程元件的元件号均采用十进制。

如果在PLC运行时电源突然中断，输出继电器和通用辅助继电器将全部变为OFF。若电源再次接通，除了因外部输入信号而变为ON的以外，其余的仍将保持为OFF状态。

2. 电池后备/锁存辅助继电器

某些控制系统要求记忆电源中断瞬时的状态，重新通电后再现其状态，电池后备/锁存辅助继电器可以用于这种场合。在电源中断时用锂电池保持RAM中的映像寄存器的内容，或将它们保存在EEPROM中。它们只是在PLC重新通电后的第一个扫描周期保持断电瞬时的状态。为了利用它们的断电记忆功能，可以采用有记忆功能的电路。

MCTI40N1AB0751G ALSTOM 梯形逻辑控制 通信接口模块

Auxiliary relays are implemented by software, they cannot receive external input signals, nor can they directly drive external loads, and are an internal status marker, equivalent to the intermediate relay in the relay control system.

PLC has a lot of auxiliary relays, they can not receive external input signals, can not directly drive the external load, in the PLC only plays the role of transmitting signals, not with the PLC external contact, is an internal status sign, the role is equivalent to the relay control system in the intermediate relay. Its normally open and normally closed contacts can be used unlimited times in the PLC internal programming, the contact can not drive the external load, and its coil is driven by the contacts of various soft components in the PLC, which can make the logical structure of the program more clear.

Auxiliary relay classification

1. General auxiliary relay

FX series PLC general purpose auxiliary relay has no power failure protection function. In the FX series PLC, except for the input and output relays, the component numbers of other programming components are in decimal.

If the power supply is suddenly interrupted while the PLC is running, the output relay and the general auxiliary relay will all be turned OFF. If the power supply is switched ON again, the rest will remain OFF except for those turned on by external input signals.

2. Battery backup/latch auxiliary relay

Battery backup/latch-assist relays can be used in some control systems that require memory of the instantaneous state of power interruption and reproduction of the state after re-powering. Use a lithium battery to preserve the contents of the image registers in RAM or save them in EEPROM during power outages. They only remain in the transient state of power failure for the first scan cycle after the PLC is re-energized. In order to take advantage of their power off memory function, a circuit with memory function can be used.

MCTI40N1AB0751G ALSTOM 梯形逻辑控制 通信接口模块

主要产品

PLC模块，可编程控制器，CPU模块，IO模块，DO模块，AI模块，DI模块，网通信模块，

以太网模块，运动控制模块，模拟量输入模块，模拟量输出模块，数字输入模块，数字输出

模块，冗余模块，电源模块，继电器输出模块，继电器输入模块，处理器模块

型号推荐

3500/05-02-02 Bently Nevada张力控制放大器

3500/45 Bently Nevada开关量输出子模件

3500/32 Bently NevadaDCS系统备件

3500/53M Bently Nevada脉冲输入子模件

3500/42M Bently Nevada控制IO子模件

3500/93 Bently Nevada模拟量模块

3500/20 Bently Nevada数字输出板

3500/25 Bently Nevada框架

330180-X1-05 BENTLY通讯板

330130-085-00-05 BENTLY串口测量板

330130-040-00-00 BENTLYDCS卡件模块

330101-00-25-10-02-00 BENTLY伺服模块

BENTLY 3500/32机器人轴计算板

BENTLY 3500/33 大卡连接端子单元

BENTLY 1900/55机器人网络通讯卡

BENTLY 3500/33 大卡模拟输出电路板

BENTLY 149992-01 后卡火焰分析仪

BENTLY 3500/60模拟量输入模块

BENTLY 125768-01 3500/20小卡电压测量仪表

BENTLY 3500/20网络接口模组

我们专注于控制系统和驱动器。我们还分销许多新的硬件和软件产品，以帮助支持您现有的控制系统或利用新的控制技术。我们拥有广泛的测试设施，我们可以为所有剩余部件提供 1 年保修。√ 优价格√ 高品质√ 专业服务√ 快速交货√ 大量库存Ø如果您发现任何其他供应商的相同零件比我们便宜，我们将尝试匹配相同的价格，或为您提供进一步的折扣。Ø如果您还有任何疑问，请随时与我们联系，我们有足够的耐心和热情为您解释一切。Ø如果您询价多于一件/物品，请告知我们，因为我们可以为您安排折扣。Ø 期待您的咨询
