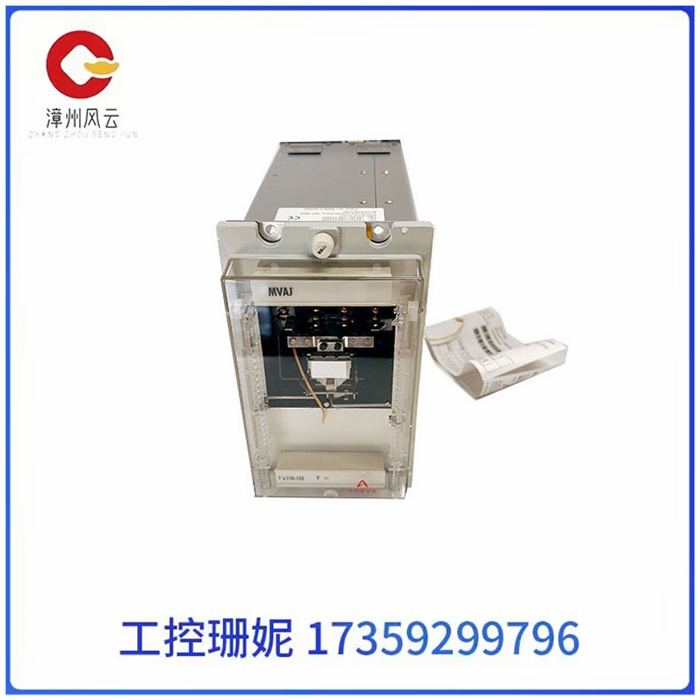

MVAJ27T1FB0784D ALSTOM  驱动接口卡件

MVAJ27T1FB0784D ALSTOM  驱动接口卡件

产品参数

型号：MVAJ27T1FB0784D

生产商：AREVA

额定电流：5A

额定电压：250VAC

工作温度：-40°C至+70°C

防护等级：IP40

产品规格

材质：铜合金

接线方式：插座式

安装方式：固定式

尺寸：36.5mm x 15mm x 44mm

重量：40g

应用领域

MVAJ27T1FB0784D适用于电力系统中的电流互感器保护和测量。

产品使用说明

在使用之前，请确保电源已断电。

使用时，请正确连接接线端子。

在使用过程中，若出现故障，请立即停止使用并联系生产商进行维修。

产品介绍

MVAJ27T1FB0784D是一款高品质的电流互感器，由AREVA生产。它具有高精度、高可靠性和长寿命等优点，广泛应用于电力系统中的保护和测量。

技术说明

耐电压：4kVAC

耐电弧：20kA

线圈电阻：50mΩ

一次侧数量：1

二次侧数量：1

一次侧接线：固定式

二次侧接线：插座式

MVAJ27T1FB0784D ALSTOM  驱动接口卡件

Product parameter

Model: MVAJ27T1FB0784D

Manufacturer: AREVA

Rated current: 5A

Rated voltage: 250VAC

Operating temperature: -40°C to +70°C

Protection class: IP40

Product specification

Material: Copper alloy

Connection mode: socket type

Installation mode: fixed

Dimensions: 36.5mm x 15mm x 44mm

Weight: 40g

Application field

MVAJ27T1FB0784D is suitable for protection and measurement of current transformers in power systems.

Product instructions

Make sure the power is off before use.

Connect the wiring terminals correctly.

In the process of use, if there is a fault, please stop using immediately and contact the manufacturer for maintenance.

Product introduction

The MVAJ27T1FB0784D is a high quality current transformer manufactured by AREVA. It has the advantages of high precision, high reliability and long life, and is widely used in the protection and measurement of power systems.

Technical specification

Withstand voltage: 4kVAC

Arc resistance: 20kA

Coil resistance: 50mΩ

Number of one side: 1

Number of secondary side: 1

Primary side wiring: fixed type

Secondary side wiring: socket type
