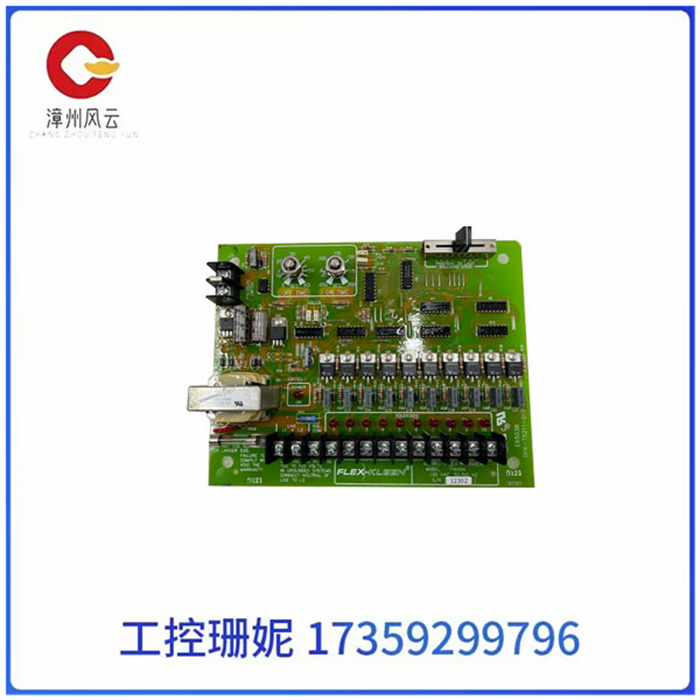

T16054 PCB板

T16054 PCB板

T16054 PCB板

当在标准模式下使用时，它将高性能运动控制与PLC逻辑解决功能结合在一个集成系统中。当在从动模式下使用时，它为连续主/从动应用提供了高性能的“电子传动装置”。

通过在配置软件中配置设置参数，可以轻松选择所需的模式。FLEX-KLENT16054模块Series 90-30和APM作为一个集成的运动控制包一起工作。APM控制轴运动并处理与驱动器和机器的所有直接通信，而PLC自动在PLC表和APM之间传输数据。

PLC还提供了一种连接操作员接口的方法，该接口可以控制和监控系统操作。APM伺服系统的示例显示了用于配置、编程和操作系统的硬件和软件。

T16054 PCB板

When used in standard mode, it combines high-performance motion control with PLC logic resolution capabilities in an integrated system. When used in driven mode, it provides a high-performance "electronic drive" for continuous master/slave applications.

The desired mode can be easily selected by configuring the Settings parameters in the configuration software. The FLEX-KLENT16054 module Series 90-30 and APM work together as an integrated motion control package. The APM controls the shaft movement and handles all direct communication with the drive and machine, while the PLC automatically transfers data between the PLC table and the APM.

The PLC also provides a way to connect an operator interface that can control and monitor system operation. The example of an APM servo system shows the hardware and software for configuration, programming, and operating system.
