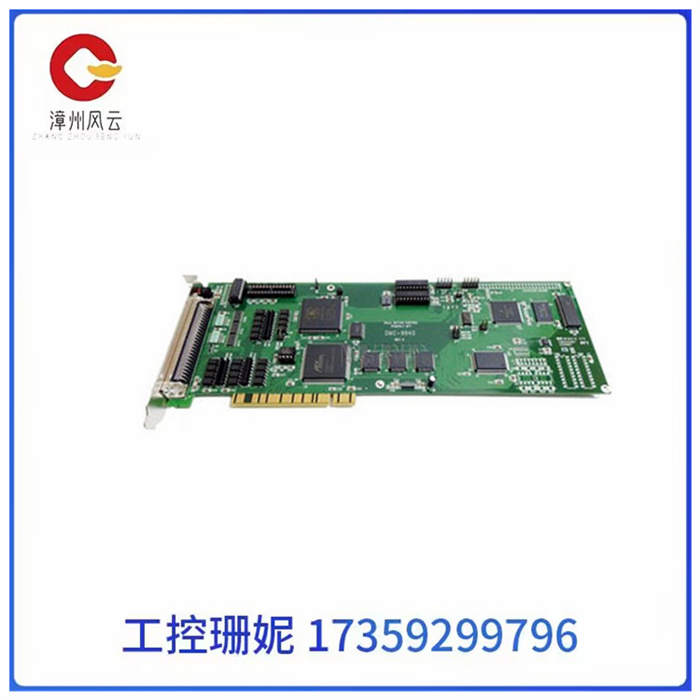

GALIL模块DMC-9940 PLC工控自动化

GALIL模块DMC-9940 PLC工控自动化

GALIL模块DMC-9940 PLC工控自动化

产品规格

●  卓越性能

1.执行容量: 连续路径模式,全轨迹运算,每秒可执行500次移动

2.定位精度: ±1个脉冲

3.速度精度: 十万分之三以下

4.同步控制: (1)同卡的各轴完美地同步运动 (2)各卡之间信号同步

5.位置捕捉精度: 25微秒(光耦合) ; 0.1微秒(无光耦合)

●  参数值之范围

1.位移范围: ±2,147,483,647 counts/move;自动更新;无限延伸速度控制及向量模式

2.速度范围: 达到 12,000,000 counts/sec

3.加/减速度: 1,024 to 67,107,840 counts/sec2

4.错误极限: ±32,767 counts

5.齿速比: ±127.9999

6.步进马达控制模式: 全步进,半步进,微步进

7.步进脉冲频率: 3,000,000 pulses/sec

8.存储器

变量的个数: 254

数组的大小: 30个8000单元的阵列

存储器容量: 1000行×80字

GALIL模块DMC-9940 PLC工控自动化

Product specification

● Excellent performance

1. Execution capacity: continuous path mode, full trajectory operation, 500 movements per second

2. Positioning accuracy: ±1 pulse

3. Speed accuracy: less than 3 ‰

4. Synchronization control: (1) The axis of the card perfectly synchronizes the movement (2) the signal synchronization between the cards

5. Position capture accuracy: 25 microseconds (optical coupling); 0.1 microsecond (no light coupling)

● Range of parameter values

1. Displacement range: ±2,147,483,647 counts/move; Automatic update; Infinite extension speed control and vector mode

2. Speed range: up to 12,000,000 counts/sec

3. Add/subtract speed: 1,024 to 67,107,840 counts/sec2

4. Error limit: ±32,767 counts

5. Tooth speed ratio: ±127.9999

6. Stepper motor control mode: full step, half step, micro step

7. Step pulse frequency: 3,000,000 pulses/sec

8. Memory

Number of variables: 254

Array size: 30 arrays of 8000 cells

Memory capacity: 1000 lines x 80 words
