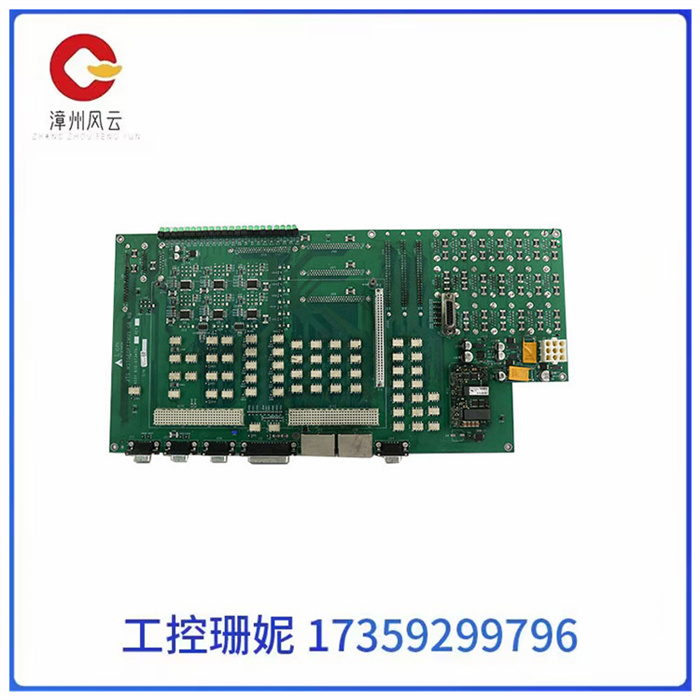

810-073479-215 PCBA连接器板

810-073479-215 PCBA连接器板

810-073479-215 PCBA连接器板

冗余配置情况下两路电源互相隔离。

●对直流总线及电源状态的监视特性

通过电源系统配置的直流总线块对机柜的直流总线特性进行监视，并可获得电源故障中断的报警们号。电源系统的监视器可对风扇、机柜温度等参数进行监视:

1.3.3 MPSIII的主要结构

一般MPSII的基本结构包括:电源输入盘、电源安装架、块状电源、风扇组件和直流总线监视组件等，并I其中的电源输入檻、电源块等部件可根据省要进行选择，构成可驱动用户设备的电源结构。电源系统安装在机柜的顶部，产生的高温点接推出机柜外。

➊电源输入盘Power Entry Panel (PEP)

电源输入盘PEP的主要功能足将外部电源引入系统。它包括了12种不同的型号供选报。

810-073479-215 PCBA连接器板

In redundant configuration, the two power supplies are isolated from each other.

● Monitoring characteristics of DC bus and power supply status

The DC bus characteristics of the cabinet can be monitored through the DC bus block configured in the power system, and the alarm signal of power failure interruption can be obtained. The power system monitor monitors parameters such as fan and cabinet temperature:

1.3.3 Main structure of MPSIII

The basic structure of the general MPSII includes: power input panel, power mounting rack, block power supply, fan assembly and DC bus monitoring assembly, etc., and the power input sill, power block and other components can be selected according to the province to form a power structure that can drive user equipment. The power supply system is installed on the top of the cabinet, and the high-temperature points generated are pushed out of the cabinet.

➊ Power Entry Panel (PEP) Power entry Panel (PEP)

The main function of the power input disk PEP is to introduce external power into the system. It includes 12 different models to choose from.
