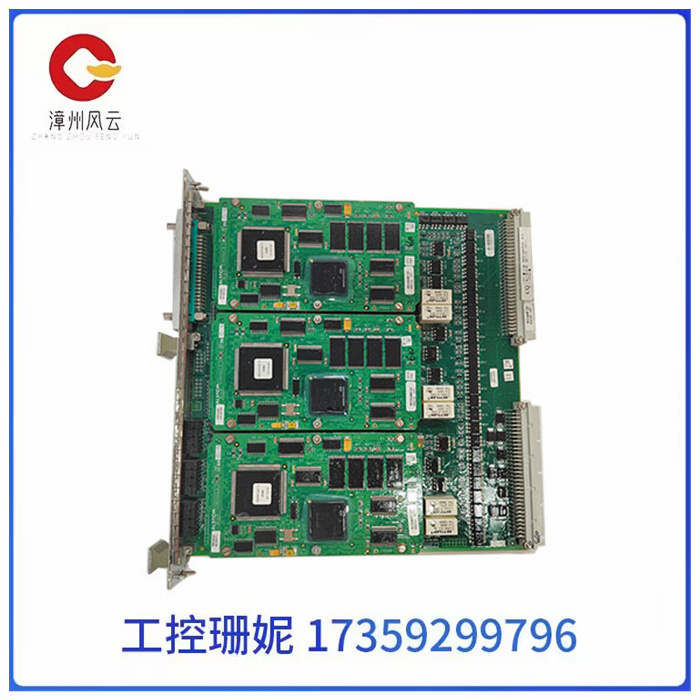

ALSTOM NRD108033 阿尔斯通控制器

ALSTOM NRD108033  阿尔斯通控制器

ALSTOM NRD108033  阿尔斯通控制器

ALSTOM NRD108033 是一种基于32位微处理器的控制器，设计用于控制单次提取，抽汽/进气或进气蒸汽涡轮机。ALSTOM NRD108033 可现场编程 这允许在许多不同的控制应用中使用单一的设计，并减少成本和交付时间。它使用菜单驱动软件指导现场工程师，将所述控制编程到特定的发电机或机械驱动应用。这个ALSTOM NRD108033 可以被配置为作为独立单元或与工厂的分布式控制系统。

操作员控制面板ALSTOM NRD108033 是一种现场可配置的汽轮机控制和操作员控制面板（OCP）集成到一个封装中。ALSTOM NRD108033 的前面板上有一个综合操作员控制面板，包括一个两行（每个24个字符）显示屏和一组30个按键。

该OCP用于配置ALSTOM 730475-D ELEMENTS-F2、进行在线程序调整和操作涡轮机/系统。通过OCP的双线显示器，操作员可以从同一个显示器查看实际值和设定值

屏幕涡轮机控制参数ALSTOM NRD108033 与两个控制阀（HP和LP）接口，以控制两个参数和如果需要，可以限制附加参数。

ALSTOM NRD108033 可以是用于控制或限制：涡轮机入口压力或流量、排气（背压）压力或流量，一级压力、发电机功率输出、工厂进口和/或出口水平、压缩机入口或排放压力或流量、装置/装置频率、工艺温度或任何其他涡轮机相关工艺参数。

ALSTOM NRD108033  阿尔斯通控制器

The ALSTOM NRD108033 is a 32-bit microprocessor-based controller designed to control a single extraction, extraction/intake or intake steam turbine. The ALSTOM NRD108033 is field programmable, which allows a single design to be used in many different control applications and reduces cost and delivery time. It uses menu-driven software to guide field engineers to program the control to a specific generator or mechanical drive application. The ALSTOM NRD108033 can be configured as a standalone unit or as a distributed control system with the plant.

The Operator Control Panel ALSTOM NRD108033 is a field-configurable turbine control and operator control panel (OCP) integrated into a single package. The front panel of the ALSTOM NRD108033 has an integrated operator control panel consisting of a two-line (24 characters each) display and a set of 30 keys.

The OCP is used to configure the ALSTOM 730475-D ELEMENTS-F2, make in-line program adjustments, and operate the turbine/system. With OCP's two-wire display, the operator can view the actual value and the set value from the same display

Screen turbine control parameters ALSTOM NRD108033 interfaces with two control valves (HP and LP) to control two parameters and limit additional parameters if required.

The ALSTOM NRD108033 may be used to control or limit: turbine inlet pressure or flow, exhaust (back pressure) pressure or flow, primary pressure, generator power output, plant inlet and/or outlet levels, compressor inlet or discharge pressure or flow, plant/plant frequency, process temperature or any other turbine related process parameter.
