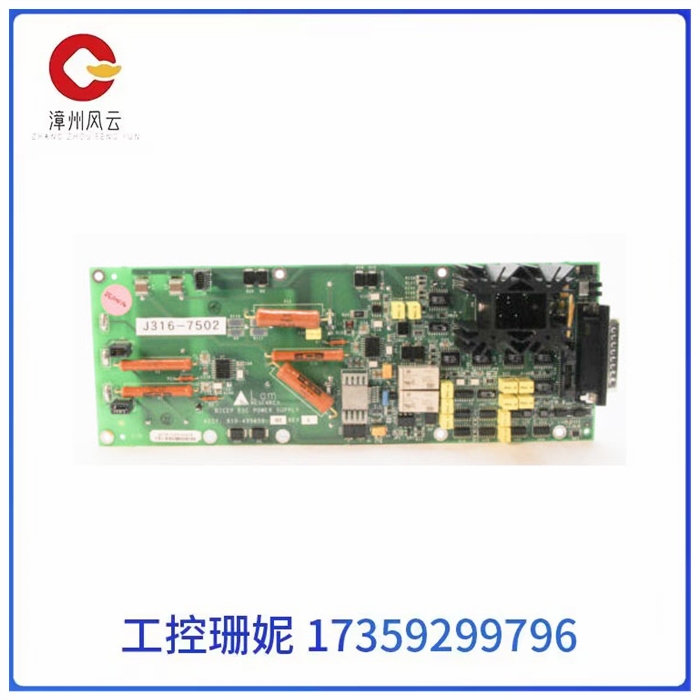

电源电路板810-495659-303

电源电路板810-495659-303

电源电路板810-495659-303

首先是单面板，在最基本的PCB上，零件集中在其中一面，导线则集中在另一面上。因为导线只出现在其中一面，所以就称这种PCB叫作单面线路板。单面板通常制作简单，造价低，但是缺点是无法应用于太复杂的产品上。

双面板是单面板的延伸，当单层布线不能满足电子产品的需要时，就要使用双面板了。双面都有覆铜有走线，并且可以通过过孔来导通两层之间的线路，使之形成所需要的网络连接。

多层板是指具有三层以上的导电图形层与其间的绝缘材料以相隔层压而成，且其间导电图形按要求互连的印制板。多层线路板是电子信息技术向高速度、多功能、大容量、小体积、薄型化、轻量化方向发展的产物。

电源电路板810-495659-303

The first is a single panel, in the most basic PCB, the parts are concentrated on one side, the wire is concentrated on the other side. Because the wire only appears on one side, this PCB is called a single-sided circuit board. Single panel is usually simple to make, low cost, but the disadvantage is that it can not be applied to too complex products.

Dual panel is an extension of the single panel, when the single-layer wiring can not meet the needs of electronic products, it is necessary to use dual panel. Both sides are covered with copper and have wiring, and the line between the two layers can be guided through the hole to form the required network connection.

Multilayer board refers to a printed board with more than three layers of conductive graphics layer and the insulating material between them are separated by layers, and the conductive graphics between them are interconnected according to requirements. Multilayer circuit board is the product of the development of electronic information technology to high speed, multi-function, large capacity, small volume, thin shape and light weight.
