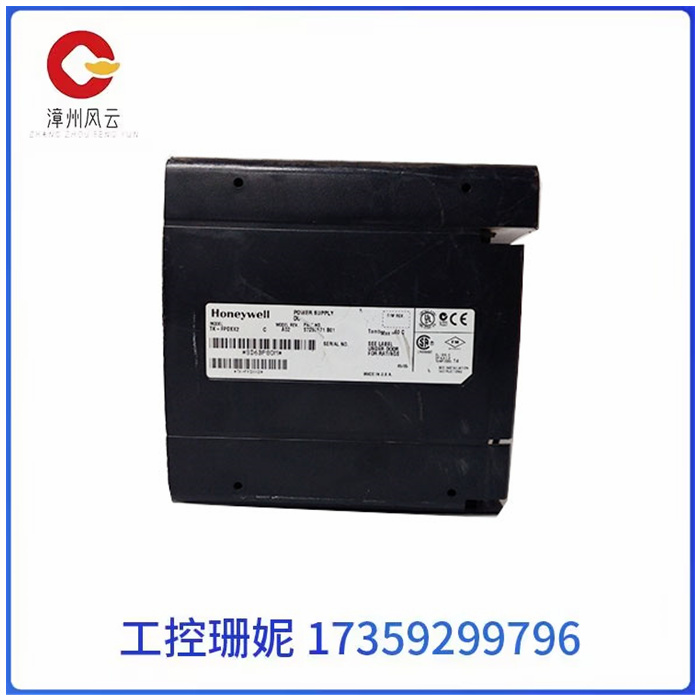

TK-FPDXX2 霍尼韦尔DCS模块

TK-FPDXX2 霍尼韦尔DCS模块

TK-FPDXX2 霍尼韦尔DCS模块

一、C300控制器模件

1、在EPKS300版本，C300是下一步的基于CEE执行环境的监控器

2、C300有几部分组成:控制器、控制器软件、相应的机电部分（柜内电源、控制网络接口、2本地 I/0 Link接口)

二、C300控制器支持的I/0

1、灵活的I/O支持:

-可混合使用不同的I/0接口-支持2个IOLINK接口

-每个C300最多支持64个冗余I/0卡件包括C和A系列卡件，c系列卡件每个IOL可以支持40个冗余模件

-可混合使用，通过FTEB支持A系列I/0。

TK-FPDXX2 霍尼韦尔DCS模块

First, C300 controller module

1. In EPKS300 version, C300 is the next monitor based on CEE execution environment

2, the C300 consists of several parts: controller, controller software, corresponding electromechanical parts (cabinet power supply, control network interface, 2 local I/0 Link interface)

Ii. I/0 supported by the C300 controller

1, flexible I/O support:

- Can mix different I/0 interfaces - Supports two IOLINK interfaces

- Each C300 supports up to 64 redundant I/0 cards, including C and A series cards, and c Series cards can support 40 redundant modules per IOL

- Can be mixed and supports Series A I/0 via FTEB.
