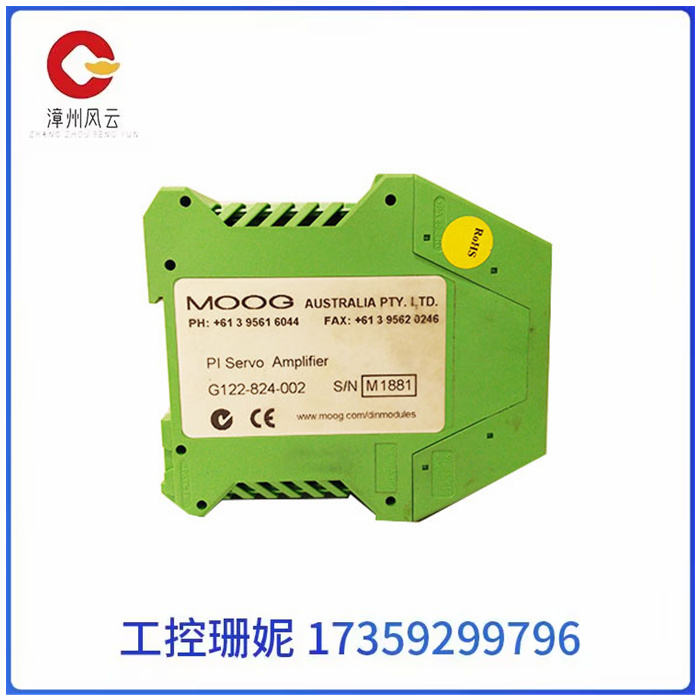

G122-824-002 输入输出模块

G122-824-002 输入输出模块

G122-824-002 输入输出模块

G122-824-002伺服放大器用于闭环需要比例和/或积分放大器的应用场合。放大器内部的选择开关使能比例、积分或两者皆可选择。放大器的许多

方面的特性可以通过内部开关来选择。这使得一个放大器可以用于许多不同的应用。 所提供的配置选项是多年的设计和操作经验的结果调试闭环系

统。伺服放大器采用模拟电子学。它接受1三个输入信号，两个单端和一个差分。

这些被加起来产生一个误差信号 ，然后按比例放大和积分。比例和积分信号被切换在-起并作为电流或电压输出来驱动伺服阀。 前面板装饰盆，LED

指示灯和测试点允许快速，轻松的设置和帮助排除故障。伺服放大器被安置在一个紧凑的DIN导轨安装外壳和需要 + 24v电源。

穆格系列DIN模块电源最近发布，用于24伏直流电的模拟和数字系统。有两种尺寸可供选择, G128-808用于650 mA和G128-809用于2安培;但是每

一种都可以根据电压、 占空比和环境温度的不同而产生更高的输出电流。有关这些更高的操作限制的详细信息可以在这些产品的应用说明中找到。

G122-824-002 输入输出模块

The G122-824-002 servo amplifier is used in applications where a proportional and/or integral amplifier is required for closed loop. A selection switch inside the amplifier enables selection of proportion, integration, or both. Many of amplifiers

The characteristics of the aspect can be selected by internal switches. This allows one amplifier to be used for many different applications. The configuration options provided are the result of many years of experience designing and operating debug closed loop systems

One. Servo amplifiers use analog electronics. It accepts 1 three input signals, two single-ended and one differential.

These are added up to produce an error signal, which is then scaled up and integrated. The proportional and integral signals are switched on and as current or voltage outputs to drive the servo valve. Front panel decorated basin, LED

Indicators and test points allow for quick and easy setup and help troubleshoot. The servo amplifier is housed in a compact DIN rail mounting housing and requires a + 24v power supply.

The Moog series DIN module power supply has recently been released for use in analog and digital systems with 24 volts DC. Available in two sizes, the G128-808 for 650 mA and the G128-809 for 2 amps; But every

Either can produce a higher output current depending on the voltage, duty cycle and ambient temperature. More information about these higher operating limits can be found in the application instructions for these products.
