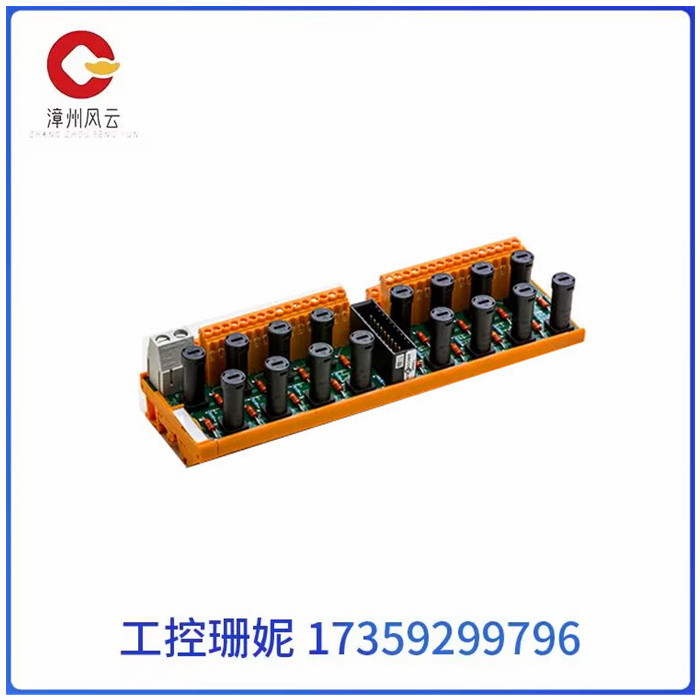

霍尼韦尔 FC-TSGAS-1624 端子板

霍尼韦尔 FC-TSGAS-1624 端子板

霍尼韦尔 FC-TSGAS-1624 端子板

电源系统

垂直设计”可选余电源-冗余AC电源输入可选后备电池-可支持控制器和 I/O至少30分钟对I/O和现场总线段提供电源

集成接线，减少占用面积双列接线端子，易于安装和维护可选冗余，大增加系统的可用行的散热管理，增加产品的寿命

运行 CEE(控制操作系统支持PMIO

C系列 I/0A 系列卡件式 I/0

灵活的 I/O 支持:可混合使用不同的 I/O 接口支持 2个IOLINK 接口每个C300 多支持 64个余 I/O 模件每个 IOL 可以支持 40 元余模件

EPKS系统节点结构介绍

服务器:整个系统的核心,可以冗余配置工作站: 人机接口基于HONEYWELLHMIWEB技术实时监控过程数据控制站: 完成生产的过程控制,几余配置过程控制网络: FTE-Fault TolerantEthernet容错以太网

霍尼韦尔 FC-TSGAS-1624 端子板

Power supply system

"Vertical Design" Optional Power Supply - Redundant AC power input Optional backup battery - supports the controller and I/O to provide power to I/O and fieldbus segments for at least 30 minutes

Integrated wiring, reduce the occupation area of double row terminal, easy to install and maintain optional redundancy, greatly increase the system available line heat management, increase the life of the product

Run CEE(control operating system supports PMIO

C series I/0A Series card type I/0

Flexible I/O support: Can mix different I/O interfaces support 2 IOLINK interfaces each C300 supports more than 64 residual I/O modules each IOL can support 40 residual modules

This section describes the node structure of EPKS

Server: the core of the whole system, can be redundantly configured workstation: human machine interface based on HONEYWELLHMIWEB technology real-time monitoring process data control station: complete the production process control network: FTE-Fault TolerantEthernet fault-tolerant Ethernet
