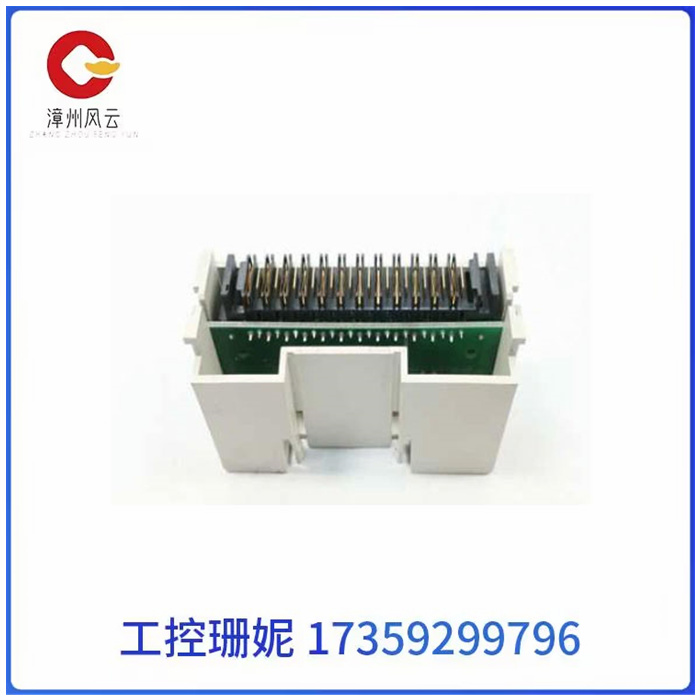

1B30023H01 输入输出模块

1B30023H01 输入输出模块

1B30023H01 输入输出模块

PLC安装的地点应避免太阳光直接照射，保证有足够的散热空间和通风条件，避免安装在干扰严重、高温、高湿度有粉尘、不清洁以及有腐蚀气体的环境中。另外，PLC要安装在有振源的地方时应采取减振措施。

 不要为了节约投资而将输入、输出线同用一根电缆，同时动力电缆和控制电缆要分开铺设，避免干扰。

 安装完毕，要检查清楚，把细短线、铜屑、铁屑、螺丝清理干净，方可通电。投入使用后，定期检查安装是否牢固和端子、模块的连接接线是否可靠，定期清扫灰尘，确保。

 为了抑制加在电源及输入端、输出端的干扰，应给PLC接上专用地线，接地点应与动力设备(如电机)的接地点分开，平常要注意检查PLC的接地是否良好。

1B30023H01 输入输出模块

The location of PLC installation should avoid direct sunlight, ensure sufficient heat dissipation space and ventilation conditions, and avoid installation in an environment with serious interference, high temperature, high humidity, dust, unclean and corrosive gases. In addition, the PLC should be installed in the vibration source of the place should take vibration reduction measures.

Do not use the same cable as the input and output lines in order to save investment, and the power cable and control cable should be laid separately to avoid interference.

After installation, check clearly, clean up the short wire, copper chips, iron chips, screws, and then power on. After being put into use, check whether the installation is firm and the connection of terminals and modules is reliable, and clean the dust regularly to ensure that.

In order to suppress the interference added to the power supply and the input end and the output end, the PLC should be connected with a special ground wire, the ground point should be separated from the ground point of the power equipment (such as the motor), usually pay attention to check whether the grounding of the PLC is good.
