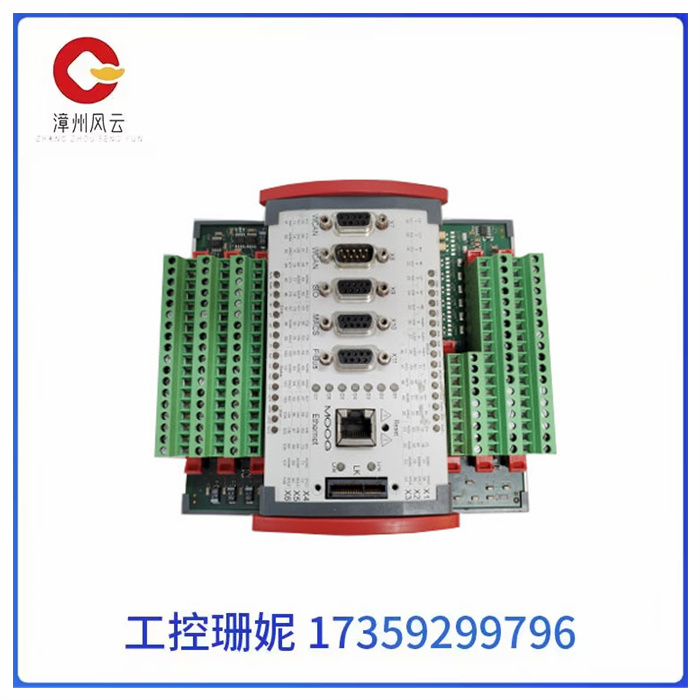

D136-001-007伺服控制器MOOG

D136-001-007伺服控制器MOOG

D136-001-007伺服控制器MOOG

产品描述

D136-001-007穆格液压伺服阀可以根据输入电信号或指令测出液压油的流量,从而控制某类型机器或设备中的位置、速度、压力或力(-般是通

过活塞或柱塞)。伺服阀可分为单级、双级或三级三种。液压伺服阀由先级、反馈机构和主级构成。

D136-001-007穆格先导级获得来自控制器的输入或指令信号，提供主级阀芯移动所需要的液压力或机械力。反馈机构通过机械反馈(MFB)或电反馈(EFB)，获得主级阀芯到先导级的实际位移。

主级阀芯计星作为输入信号函数的液流，D136-0O1-007为先导级提供机械或电反馈。主级包括阀体和一个阀芯阀套组件或阀芯阀体组件。阀芯阀套组件用于要求临界遮盖的伺服阀。

D136-001-007伺服控制器MOOG

Product description

D136-001-007 MooG hydraulic servo valve can measure the flow of hydraulic oil according to the input electrical signal or command, so as to control the position, speed, pressure or force in a certain type of machine or equipment

Over piston or plunger). Servo valves can be divided into single stage, double stage or three levels. The hydraulic servo valve is composed of a first stage, a feedback mechanism and a main stage.

The D136-001-007 Moog pilot stage receives input or command signals from the controller to provide the hydraulic pressure or mechanical force needed to move the main stage spool. The feedback mechanism obtains the actual displacement from the main spool to the pilot stage through mechanical feedback (MFB) or electrical feedback (EFB).

The main stage spire counts the fluid flow as a function of the input signal, and D136-0O1-007 provides mechanical or electrical feedback for the pilot stage. The main stage includes a valve body and a spool sleeve assembly or spool body assembly. Spool sleeve assemblies are used for servo valves that require critical cover.
