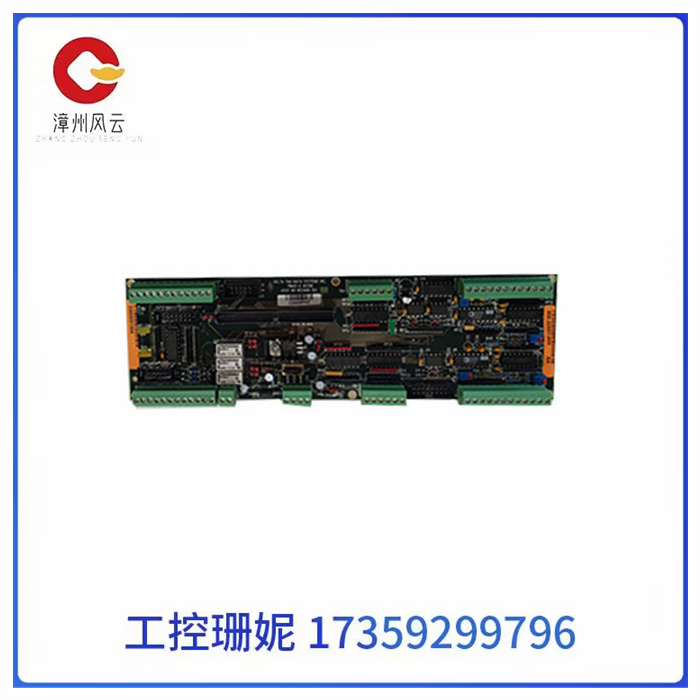

DELTA TAU ACC-8E PMAC-2 602469-103 欧美进口控制板卡

DELTA TAU ACC-8E PMAC-2 602469-103 欧美进口控制板卡

DELTA TAU ACC-8E PMAC-2 602469-103 欧美进口控制板卡

ACC-24E2A 是一个轴扩展板，为 UMAC 和 Ultralite/MACRO 站控制器提供 2 或 4 通道 PMAC2 型伺服接口电路。ACC-24E2A 是 UMAC 或 MACRO Pack 系列扩展卡的一部分，这些附件卡设计用于插入工业 3U 机架系统。

多达 8 个 ACC-24E2A 板可以连接到一个 UMAC，提供多达 32 个额外的伺服接口电路通道。16 轴 MACRO CPU 可支持 4 个 ACC-24E2x 卡，8 轴 MACRO CPU 可支持 2 个 ACC-24E2x。

ACC-24E2x 板不包含处理器；它有一个高度集成的 4 通道 PMAC2 型伺服 IC，周围有缓冲电路和连接器。两轴 ACC-24E2x 插入背板并使用机架中的一个插槽。如果还需要两个轴，可以将 ACC-24E2x 选项 1 插入 ACC-24E2x 连接器。带有选项 1 卡的 ACC-24E2x 总共占用两个插槽。ACC-24E2x 分线板系列新增的一些功能包括：

编码器电路丢失

5V 至 24V 标志输入

步进系统或MLDT的脉冲和方向输出

DELTA TAU ACC-8E PMAC-2 602469-103 欧美进口控制板卡

The AC-24E2A is an axle expansion board that provides 2 - or 4-channel PMAC2 servo interface circuits for UMAC and Ultralite/MACRO station controllers. The ACC-24E2A is part of the UMAC or MACRO Pack series of expansion cards, which are accessory cards designed to plug into industrial 3U rack systems.

Up to eight ACC-24E2A boards can be connected to a single UMAC, providing up to 32 additional servo interface circuit channels. The 16-axis MACRO CPU can support four ACC-24E2x cards, and the 8-axis MACRO CPU can support two ACC-24E2x cards.

The ACC-24E2x board does not contain a processor; It has a highly integrated 4-channel PMACType 2 servo IC with buffer circuits and connectors around it. The two-axis AC-24E2X plugs into the backplane and uses a slot in the rack. If two more axles are needed, you can plug AC-24E2X option 1 into the AC-24E2X connector. The AC-24E2X with Option 1 card occupies a total of two slots. Some of the new features of the ACC-24E2x distributor series include:

Encoder circuit loss

5V to 24V mark input

Pulse and directional output of the stepper system or MLDT
