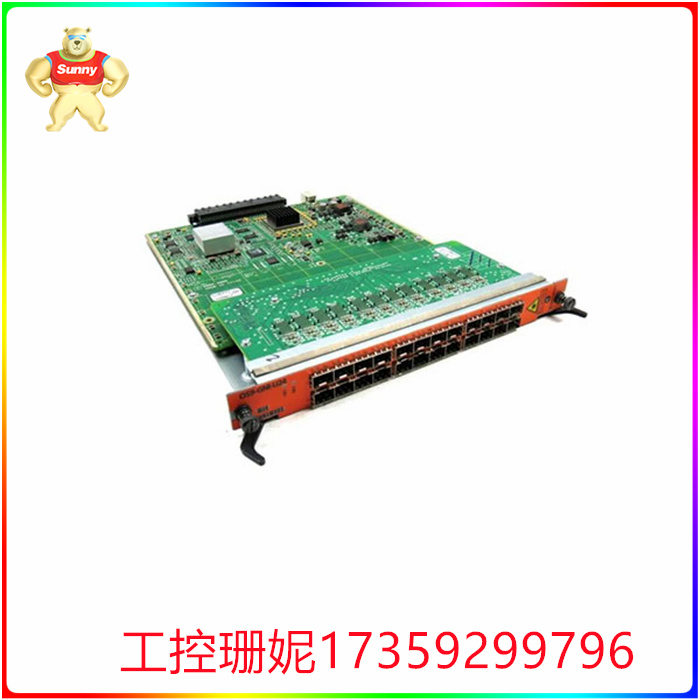

OS9-GNI-U24 ALCATEL-LUCENT 开关量输入/输出卡件 控制系统模块

OS9-GNI-U24 ALCATEL-LUCENT 开关量输入/输出卡件 控制系统模块

OS9-GNI-U24 ALCATEL-LUCENT 开关量输入/输出卡件 控制系统模块

基本功能:

数据缓冲:由于I/o设备的速率较低而CPU和内存的速率却很高，故在控制器中必须设置一缓冲器。

在输出时，用此缓冲器暂存由主机高速传来的数据，然后才以I/O设备所具有的速率将缓冲器中的数据传送给/O设备;在输入时,缓冲器则用于暂存从I/O设备送来的数据，待接收到一批数据后，再将缓冲器中的数据高速地传送给主机。

差错控制:设备控制器还兼管对由I/0设备传送来的数据进行差错检测。若发现传送中出现了错误，通常是将差错检测码置位，并向CPU报告,于是CPU将本次传送来的数据作废，并重新进行一次传送。这样便可保证数据输入的正确性。

OS9-GNI-U24 ALCATEL-LUCENT 开关量输入/输出卡件 控制系统模块

Basic functions:

Data buffering: Since the rate of the I/o device is low and the rate of the CPU and memory is high, a buffer must be set in the controller.

When output, the buffer is used to temporarily store the data from the host at high speed, and then the data in the buffer is transmitted to the /O device at the rate that the I/O device has; During input, the buffer is used to temporarily store the data sent from the I/O device, and after receiving a batch of data, the data in the buffer is transmitted to the host at high speed.

Error control: The device controller is also responsible for error detection of data transmitted by the I/0 device. If an error is found in the transmission, the error detection code is usually set and reported to the CPU, so the CPU will cancel the data sent this time and retry the transmission. This ensures the correctness of data input.
