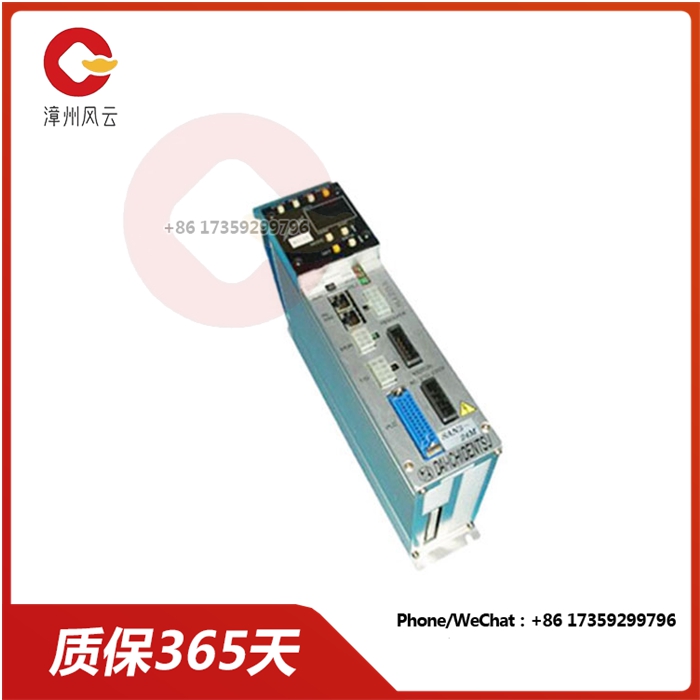

SAN3-24|伺服拧紧机|保证在拧紧装配中压紧力精确

拧紧机的系统组成：

拧紧机参数：

拧紧范围：1Nm-5000Nm

拧紧参数 ：32 组

紧固方式：扭矩法/角度法/电流法/屈服点法（CW/CCW）/修正功能（防止已知掉落）

附件设定 ：OFFSET 扭矩检查/修正

反作用降低功能

扭矩恢复

Angle 表示 1 度的最小单位

角度内部控制单元 0.1 度

变矩器精度 ± 1%（最大刻度）

变矩器线性度 ±0.5%

扭矩率设置为 3 点

检测动作时间（步）的上限和下限

检测齿数的上限和下限

检测扭矩比的上限和下限（3 比率）

电机电流上限和下限检测

时间、坐齿数、扭矩比、电流

操作环境：0 ~ 45°C （120F）

DDK SAN3-24 NFT-401RM1A-S

SAN3-24|伺服拧紧机|保证在拧紧装配中压紧力精确

System composition of tightening machine:

Tightening machine parameters:

Tightening range: 1Nm-5000Nm

Tightening parameters: 32 groups

Fastening method: torque method/Angle method/current method/yield point method (CW/CCW)/correction function (to prevent known ｄｒｏｐ)

Attachment setting: OFFSET torque check/correction

Reaction reduces function

Torque recovery

Angle represents the smallest unit of 1 degree

Angle internal control unit 0.1 degrees

Torque converter accuracy ± 1% (Max scale)

Linearity of torque converter ±0.5%

Torque rate is set to 3 points

Detects the upper and lower limits of the action time (step)

Detect the upper and lower limits of the number of teeth

Upper and lower limits of the torque ratio (3 ratios)

Motor current upper limit and lower limit detection

Time, number of teeth, torque ratio, current

Operating environment: 0 ~ 45°C (120F)

DDK SAN3-24 NFT-401RM1A-S
