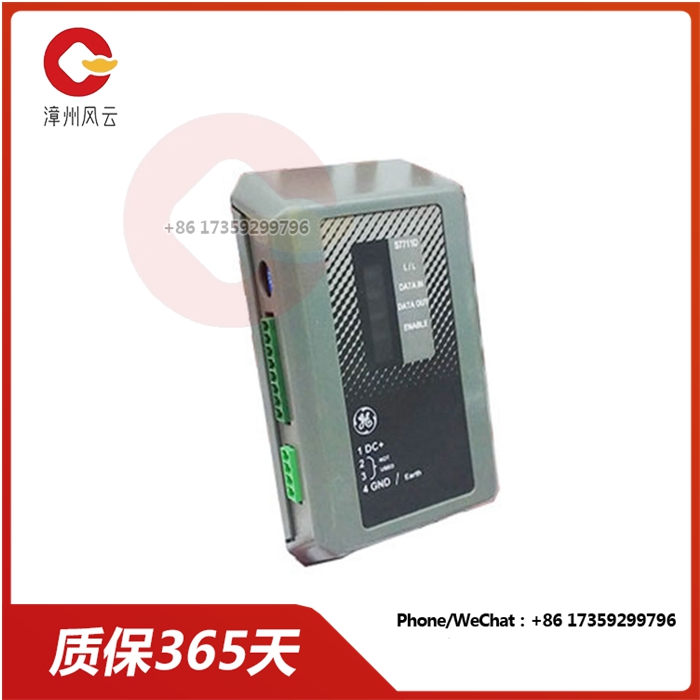

S7711D 数据发射器和接收器

概述

增强型双向多协议数据收发器通过一条或两条光纤提供多协议数据的双向传输。S711D型号具有多模操作，而S7711D型号在单模光纤上操作。

数据转换

该设备还具有独特的数据转换功能，允许输入一种数据格式和输出不同的格式。数据格式在安装过程中选择，并且可以通过旋转开关在现场轻松更改。

优越的诊断

SMARTS™诊断技术提供了广泛的系统状态led阵列。数据路径的完整性可以用内置的数据传输测试生成器进行测试。没有必要连接到外部数据设备。

标准特性

通过一根或两根光纤双向数据传输

单模式和多模式可供选择

支持RS-232、TTL、RS-422、RS-485、Manchester、Biphase、SensorNet等多协议数据格式

独特的数据转换功能

用户可配置的数据格式

18db光学预算

光学自动增益控制

智慧™诊断

独立和机架配置

S7711D 数据发射器和接收器

summarize

The enhanced bidirectional multiprotocol data transceiver provides bidirectional transmission of multiprotocol data over one or two optical fibers. The S711D model has multi-mode operation, while the S7711D model operates on a single-mode fiber.

Data conversion

The device also has a unique data conversion function that allows the input of one data format and the output of a different format. The data format is selected during installation and can be easily changed in the field with a rotary switch.

Superior diagnosis

SMARTS™ diagnostic technology provides a wide array of system status leds. The integrity of the data path can be tested with the built-in data transfer test generator. There is no need to connect to external data devices.

Standard characteristic

Two-way data transmission via one or two optical fibers

Single mode and multi-mode are available

Support RS-232, TTL, RS-422, RS-485, Manchester, Biphase, SensorNet and other multi-protocol data formats

Unique data conversion capabilities

User configurable data format

18db optical budget

Optical automatic gain control

Smart ™ Diagnostics

Standalone and rack configuration
