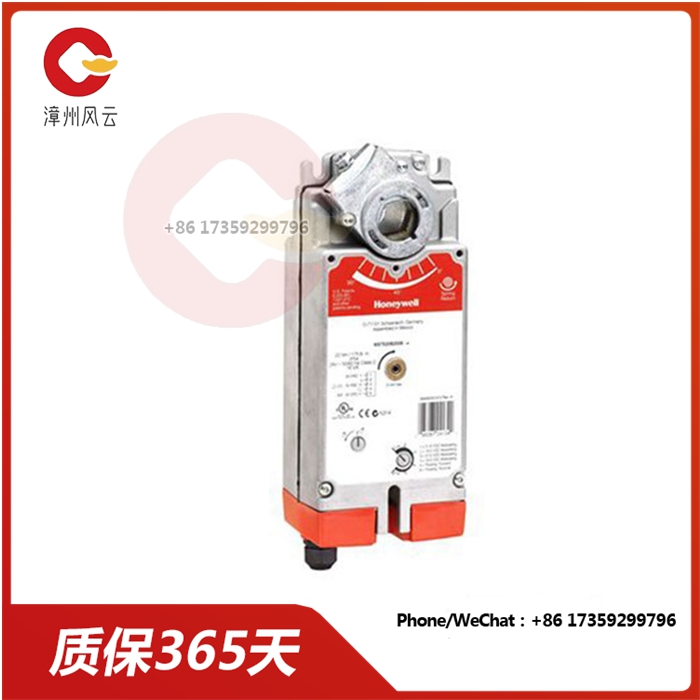

S1024-2POS-SW2 弹簧复位直接耦合阻尼器执行器

一般:

这些直接耦合阻尼器执行器提供两个位置

控制:

•空气阻尼器;

•VAV机组;

•空气处理器;

•通风挡板;

•百叶，和

•可靠的控制空气阻尼器应用与高达

1.5平方米/ 16平方英尺(10 Nm / 88 lb-in)或4.6 m2 / 50平方英尺。

(20 Nm / 177 lb-in)(无密封阻尼器;空气摩擦

依赖)。

特点:

•自定心轴适配器

•可拆卸检修盖

•机械端限(不可调节)

•旋转方向可选择安装

取向

•可安装在任何方向(IP54仅当

安装在有检修盖的水平轴上

井下)

•机械位置指示器

旋转运动:

执行器的设计是通过顺时针或逆时针方向驱动减振器轴来打开减振器

方向。

注意:执行机构采用全封闭弹簧

返回)的位置。

双位控制

S1024-2POS-SW2 弹簧复位直接耦合阻尼器执行器

General:

These directly coupled damper actuators provide two positions

Controls:

• Air damper;

•VAV unit;

• Air processor;

• Ventilation baffle;

• Louvers, and

• Reliable control of air damper applications with up to

1.5 m2/16 sq ft (10 Nm / 88 lb-in) or 4.6 m2/50 sq ft.

(20 Nm / 177 lb-in)(no sealed damper; Air friction

Dependence).

Features:

• Self-aligning spindle adapter

• Removable access cover

• Mechanical end limits (non-adjustable)

• Rotation direction can be selected for installation

orientation

• Can be installed in any direction (IP54 only if

Install on a horizontal shaft with access cover

In the mine)

• Mechanical position indicator

Rotary motion:

The actuator is designed to open the damper by driving the damper shaft in a clockwise or counterclockwise direction

Direction.

Note: The actuator adopts fully enclosed spring

Return the location of).

Two-position control
