RMC-131D 差动保护继电器

RMC-131D 差动保护继电器

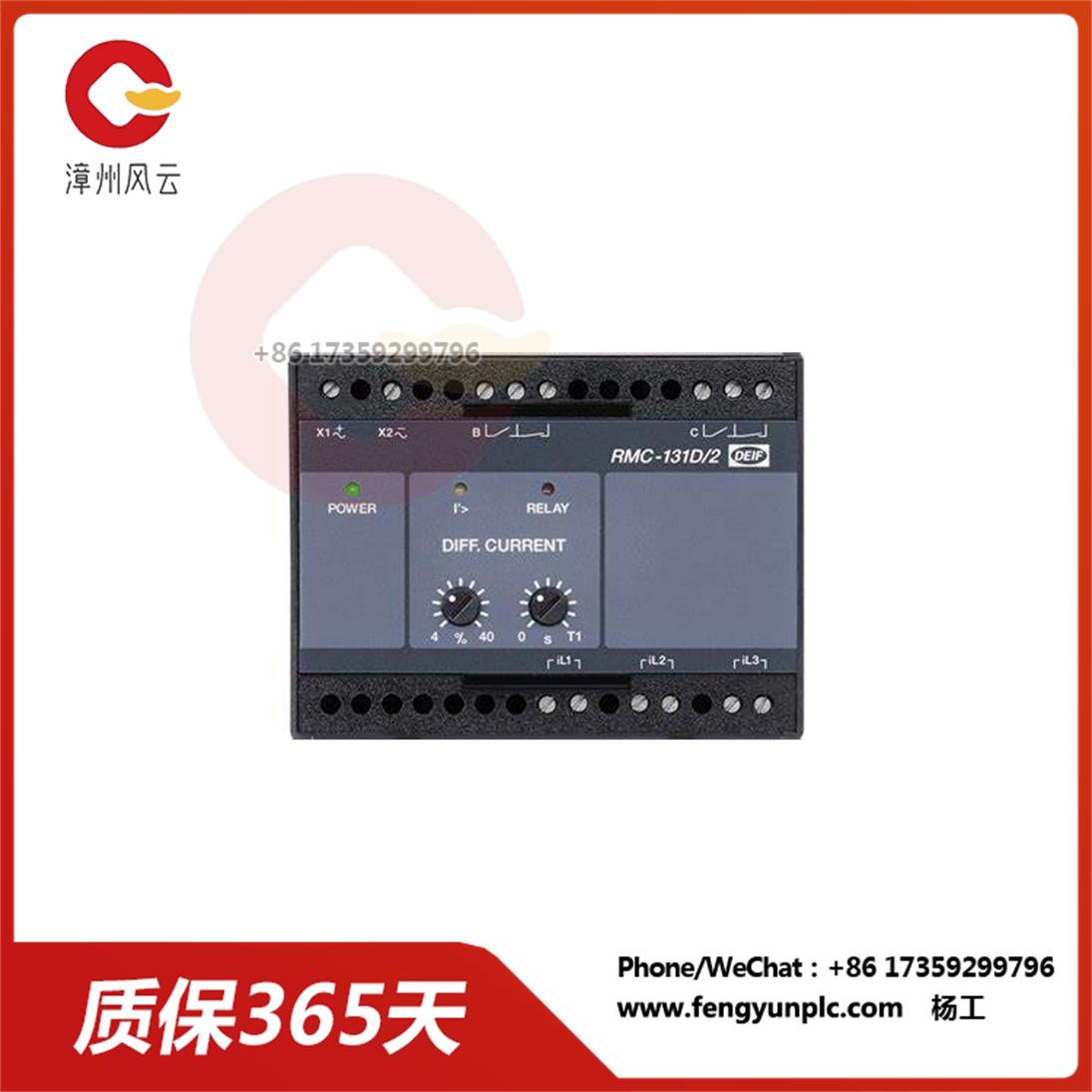

RMC-131D 是一款由丹麦DEIF公司生产的差动电流保护继电器。它主要用于保护发电机，防止发电机绕组内部发生短路或接地故障。通过比较三相电流的差值，当差值超过设定值时，RMC-131D 就会发出跳闸信号，切断故障线路，保护发电机。

RMC-131D 的主要功能

差动保护: 通过比较三相电流的差值，实现对发电机绕组的保护。

过流保护: 对过电流进行保护，防止电机过载。

失压保护: 当电源电压过低时，发出报警或跳闸信号。

欠压保护: 当电源电压过高时，发出报警或跳闸信号。

零序电流保护: 对零序电流进行保护，防止接地故障。

RMC-131D 的特点

高灵敏度: 对差动电流变化非常敏感，能够快速准确地检测出故障。

可靠性高： 采用先进的数字信号处理技术，具有很高的可靠性。

设置灵活： 可以根据不同的保护要求进行灵活设置。

通讯功能： 支持多种通讯协议，方便远程监控和控制。

RMC-131D 的应用

发电厂： 用于保护同步发电机。

工业企业： 用于保护自备发电机。

船舶： 用于保护船用发电机。

RMC-131D 的工作原理

RMC-131D 通过测量三相电流的差值，当差值超过设定值时，即认为发生内部故障，发出跳闸信号。

RMC-131D 差动保护继电器

The RMC-131D is a differential current protection relay manufactured by DEIF in Denmark. It is mainly used to protect the generator from short circuit or ground fault inside the generator winding. By comparing the difference of the three-phase current, when the difference exceeds the set value, the RMC-131D will send a trip signal to cut off the fault line and protect the generator.

Main functions of RMC-131D

Differential protection: By comparing the difference of the three-phase current, the protection of the generator winding is realized.

Over-current protection: over-current protection to prevent motor overload.

Loss of voltage protection: When the power supply voltage is too low, an alarm or tripping signal is issued.

Undervoltage protection: When the power supply voltage is too high, an alarm or tripping signal is issued.

Zero sequence current protection: Protects zero sequence current to prevent ground faults.

Characteristics of RMC-131D

High sensitivity: It is very sensitive to differential current changes and can detect faults quickly and accurately.

High reliability: The use of advanced digital signal processing technology, with high reliability.

Flexible setting: Flexible setting can be performed according to different protection requirements.

Communication function: Support a variety of communication protocols, convenient remote monitoring and control.

Application of RMC-131D

Power plant: Used to protect synchronous generators.

Industrial enterprises: Used to protect their own generators.

Marine: Used to protect Marine generators.

How RMC-131D works

RMC-131D measures the difference of the three-phase current, and when the difference exceeds the set value, it is considered that an internal fault occurs and a tripping signal is sent.

RMC-131D 差动保护继电器
