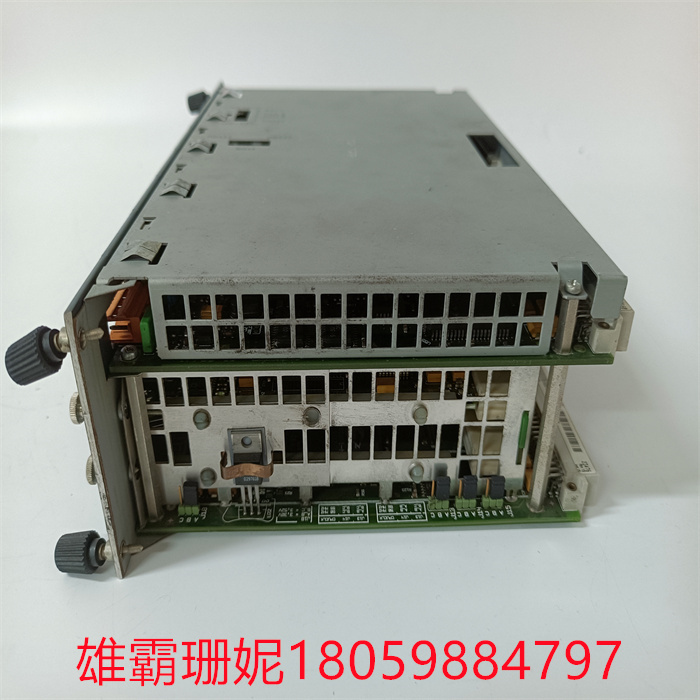

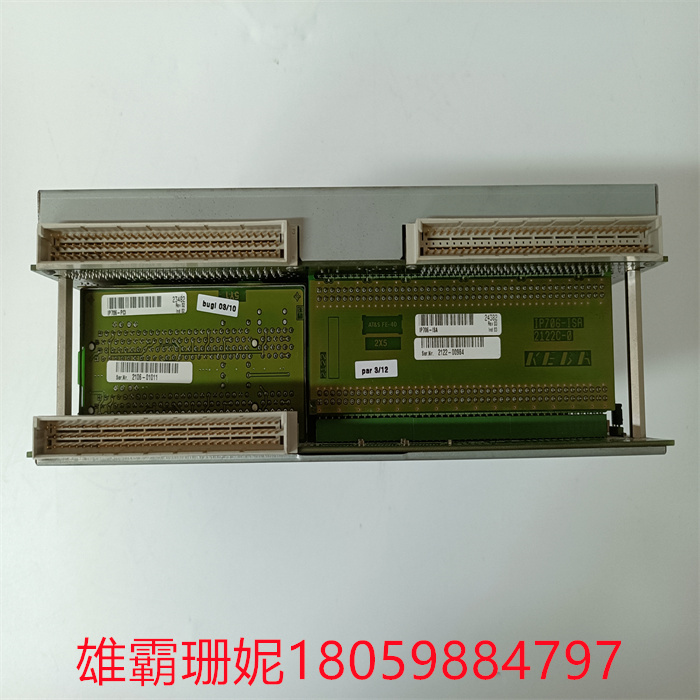

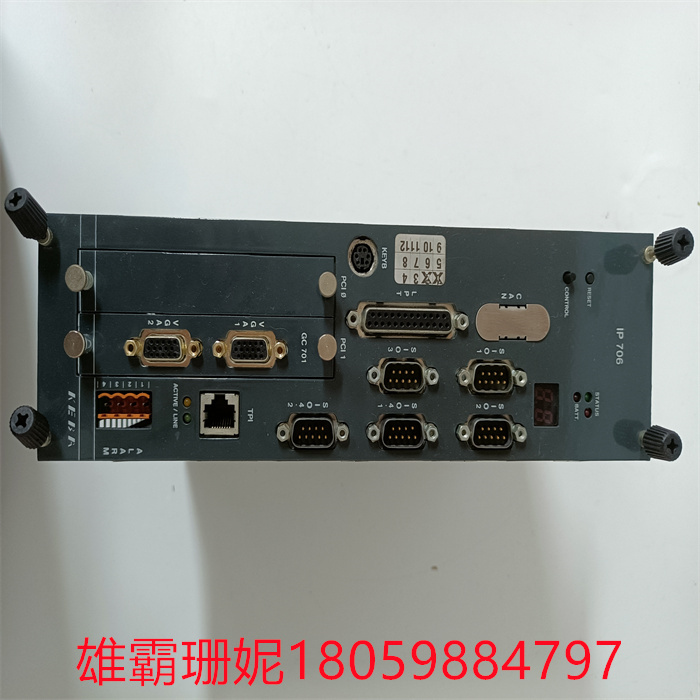

IP706 KEBA中央处理器

IP706 KEBA中央处理器

每组对应于  传统机架式PLC中的“插槽”。端子接线分配取决于输入/输出模块键入安装在该位置的。

 接地螺钉用于将接地线连接到接线盒上。  电缆连接器便于连接传输通信信号的电缆  接线板和总线接口单元之间。  备用保险丝座可用于存储输入/输出模块的额外保险丝（如果需要）。

DIN导轨闩锁将输入/输出接线板卡在DIN导轨上。向外拉动这些闩锁  释放DIN导轨。  键控槽允许保护键控。

将提供的钥匙夹插入这些插槽可确保  安装在该位置的模块不会造成损坏或意外的机器操作。  输入/输出端子块IC670CHS101、102和103具有设计用于  便于热插拔模块。

Each group corresponds to a "slot" in a traditional rack-mounted PLC. The terminal wiring assignment depends on the input/output module type installed in that position.

The ground screw is used to connect the ground cable to the junction box. The cable connector facilitates the connection between the cable patch board that transmits the communication signal and the bus interface unit. The spare fuse holder can be used to store additional fuses for the input/output module if required.

The DIN rail latch clips the input/output wiring board to the DIN rail. Pull these latches outward to release the DIN rail. The keying slot allows protection keying.

Inserting the provided key clips into these slots ensures that the module installed in that location will not cause damage or accidental machine operation. Input/output terminal blocks IC670CHS101, 102 and 103 have modules designed for easy hot swapping.
