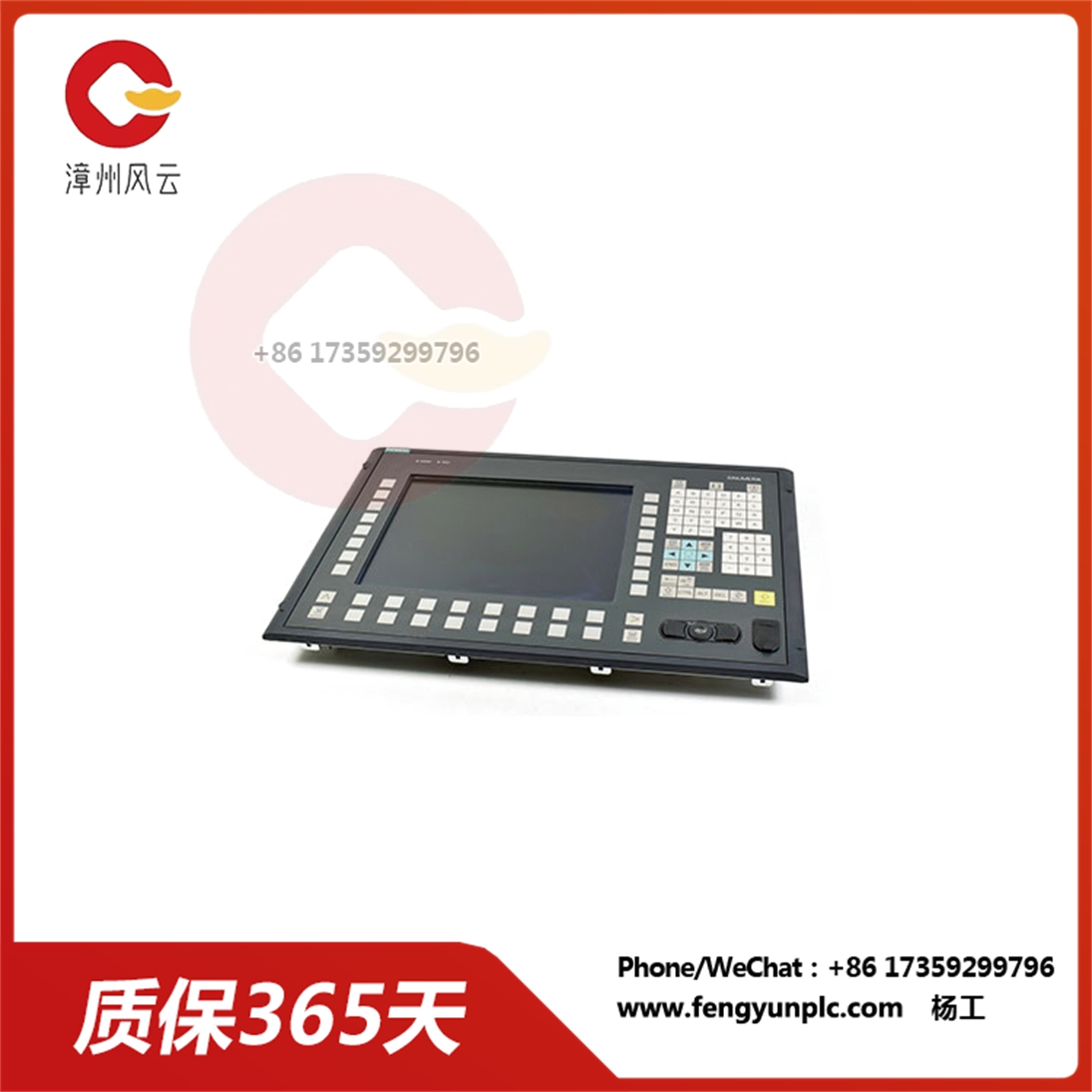

6FC5203-0AF02-0AA1 OP012 是西门子S7-300系列PLC常用的一种操作面板模块。它提供了一个用户友好的界面，用于对PLC进行本地操作和监控。通过这个模块，操作人员可以方便地查看PLC的运行状态、修改参数、启动/停止程序等。

主要功能与特点

人机交互界面： 提供直观的用户界面，包括显示屏、按键、旋钮等，方便操作人员进行人机交互。

多功能显示: 可以显示PLC的各种信息，如运行状态、报警信息、参数值等。

参数设置： 可以通过操作面板对PLC的参数进行设置和修改。

程序控制： 可以启动、停止PLC程序，并对程序进行监控。

报警显示： 可以显示PLC的各种报警信息，并提供相应的处理建议。

模块化设计： 模块化设计，易于安装和维护。

应用领域

工业自动化： 用于对各种工业自动化设备进行本地操作和监控。

过程控制： 用于对工业过程进行监视和控制。

机器自动化： 用于对各种机器设备进行控制和管理。

工作原理

OP012操作面板模块通过与PLC建立通信连接，实现对PLC的控制和监控。操作人员通过操作面板上的按键、旋钮等输入指令，这些指令被发送给PLC，PLC根据指令执行相应的操作，并将结果反馈给操作面板，显示在显示屏上。

选型指南

显示尺寸： 根据需要显示的信息量选择合适的显示尺寸。

按键数量： 根据需要操作的功能数量选择按键数量。

通信接口： 根据PLC的通信接口选择。

环境条件： 根据工作环境选择适应性强的型号。

6FC5203-0AF02-0AA1 OP012操作面板模块

6FC5203-0AF02-0AA1 OP012 is a commonly used operating panel module of Siemens S7-300 series PLC. It provides a user-friendly interface for local operation and monitoring of PLCS. Through this module, the operator can easily check the operating status of the PLC, modify parameters, start/stop procedures, etc.

Main functions and characteristics

Man-machine interface: Provides intuitive user interface, including display screen, buttons, knobs, etc., to facilitate man-machine interaction.

Multi-function display: can display a variety of PLC information, such as operating status, alarm information, parameter values, etc.

Parameter setting: PLC parameters can be set and modified through the operation panel.

Program control: can start, stop the PLC program, and monitor the program.

Alarm display: can display a variety of PLC alarm information, and provide corresponding processing suggestions.

Modular design: Modular design, easy to install and maintain.

Application field

Industrial automation: Used for local operation and monitoring of various industrial automation equipment.

Process control: Used to monitor and control industrial processes.

Machine automation: used to control and manage various machines and equipment.

Working principle

OP012 operation panel module can control and monitor PLC by establishing communication connection with PLC. The operator enters instructions through the buttons and knobs on the operation panel, and these instructions are sent to the PLC, which executes the corresponding operations according to the instructions, and feedbacks the results to the operation panel, which is displayed on the display screen.

Selection guide

Display size: Select the appropriate display size according to the amount of information that needs to be displayed.

Number of keys: Select the number of keys based on the number of functions to be operated.

Communication interface: Select according to PLC communication interface.

Environmental conditions: Select the model with strong adaptability according to the working environment.
