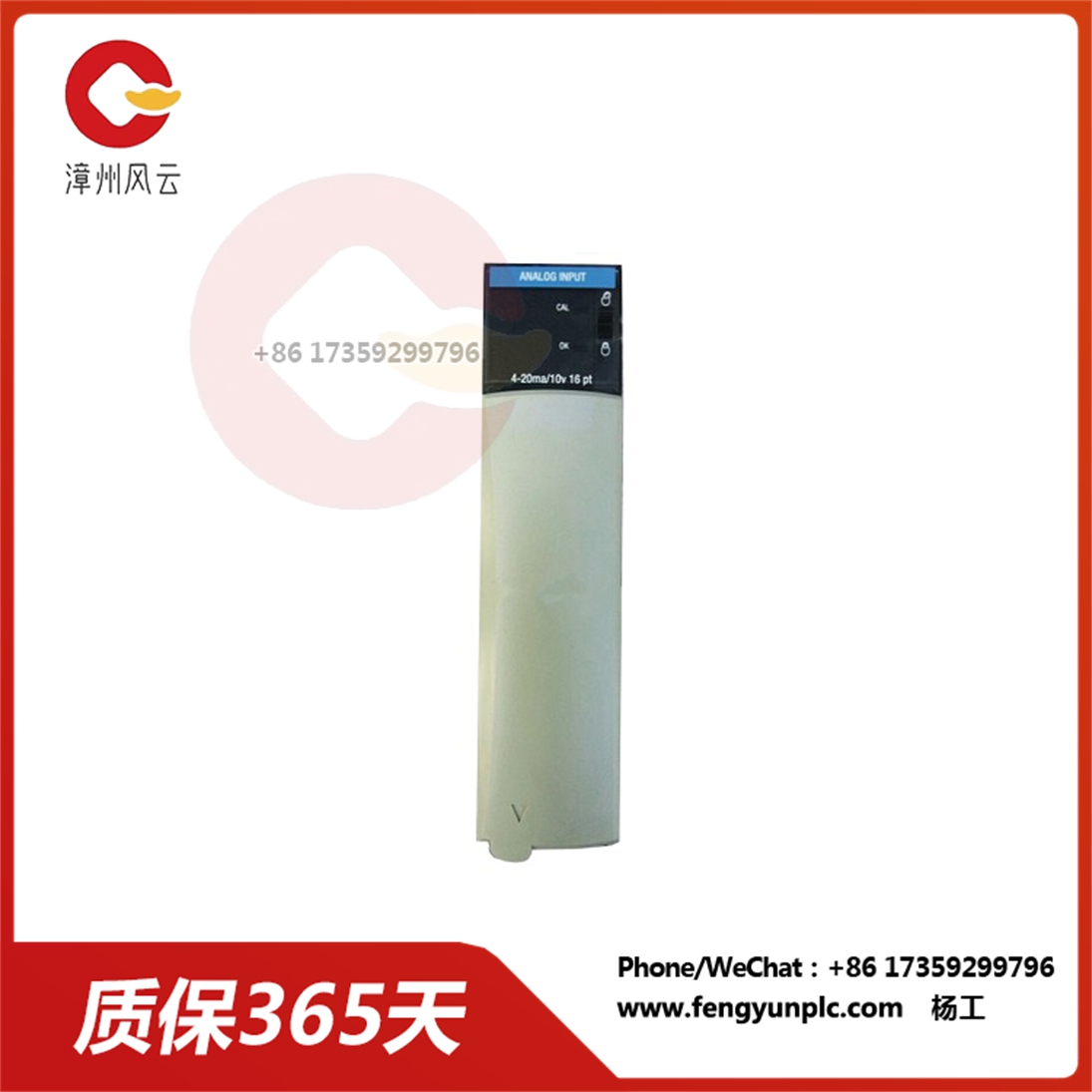

TC-IAH161 Honeywell 工业继电器

TC-IAH161 Honeywell 工业继电器

TC-IAH161 是霍尼韦尔（Honeywell）公司推出的一款高性能模拟输入模块，主要用于工业自动化系统中采集模拟信号。该模块具有16个独立的模拟输入通道，可同时采集多个模拟信号，并将其转换为数字信号，以便于计算机系统进行处理和分析。

主要特点

高通道数： 16个独立的模拟输入通道，可同时采集多个模拟信号。

高精度： 具有较高的测量精度，可满足工业自动化对测量精度的要求。

高可靠性： 采用工业级元器件，具有较高的可靠性，适合在恶劣的工业环境中使用。

隔离设计： 每个通道均采用隔离设计，有效抑制共模干扰，提高测量精度。

灵活的配置： 支持多种量程和单位，可通过软件进行灵活配置。

丰富的接口： 支持多种通信接口，方便与上位机系统集成。

技术参数（典型值）

参数值

通道数 16

电压分辨率 如下所示的每个范围内的16位

 ±10V：0.49mV

 ±5V：0.24mV

 ±2.5V：0.12mV

 ±1V：0.049mV

模块发布速率 250毫秒

信道带宽 20赫兹（-3分贝）

RFI抗扰度 误差小于10 V/m，27至1000 MHz范围的2.0%

功耗 最大4.1 W

隔离电压 用户对系统： 100% 在2550VDC测试1s

TC-IAH161 Honeywell 工业继电器

TC-IAH161 is a high-performance analog input module introduced by Honeywell for the acquisition of analog signals in industrial automation systems. The module has 16 independent analog input channels, which can simultaneously collect multiple analog signals and convert them into digital signals for processing and analysis by computer system.

Main feature

High channel count: 16 independent analog input channels for simultaneous acquisition of multiple analog signals.

High precision: with high measurement accuracy, it can meet the requirements of industrial automation for measurement accuracy.

High reliability: The use of industrial components, with high reliability, suitable for use in harsh industrial environments.

Isolation design: Each channel adopts isolation design to effectively inhibit common-mode interference and improve measurement accuracy.

Flexible configuration: Supports a variety of ranges and units and can be flexibly configured through software.

Rich interface: Support a variety of communication interfaces, easy to integrate with the host system.

Technical parameters (typical values)

Parameter value

Number of channels 16

The voltage resolution is 16 bits in each range as shown below

±10V: 0.49mV

±5V: 0.24mV

±2.5V: 0.12mV

±1V: 0.049mV

Module release rate 250 ms

Channel bandwidth 20 Hz (-3 dB)

RFI immunity error is less than 10 V/m, 2.0% of the range from 27 to 1000 MHz

Maximum power consumption 4.1W

Isolation voltage User to system: 100% test at 2550VDC for 1s
