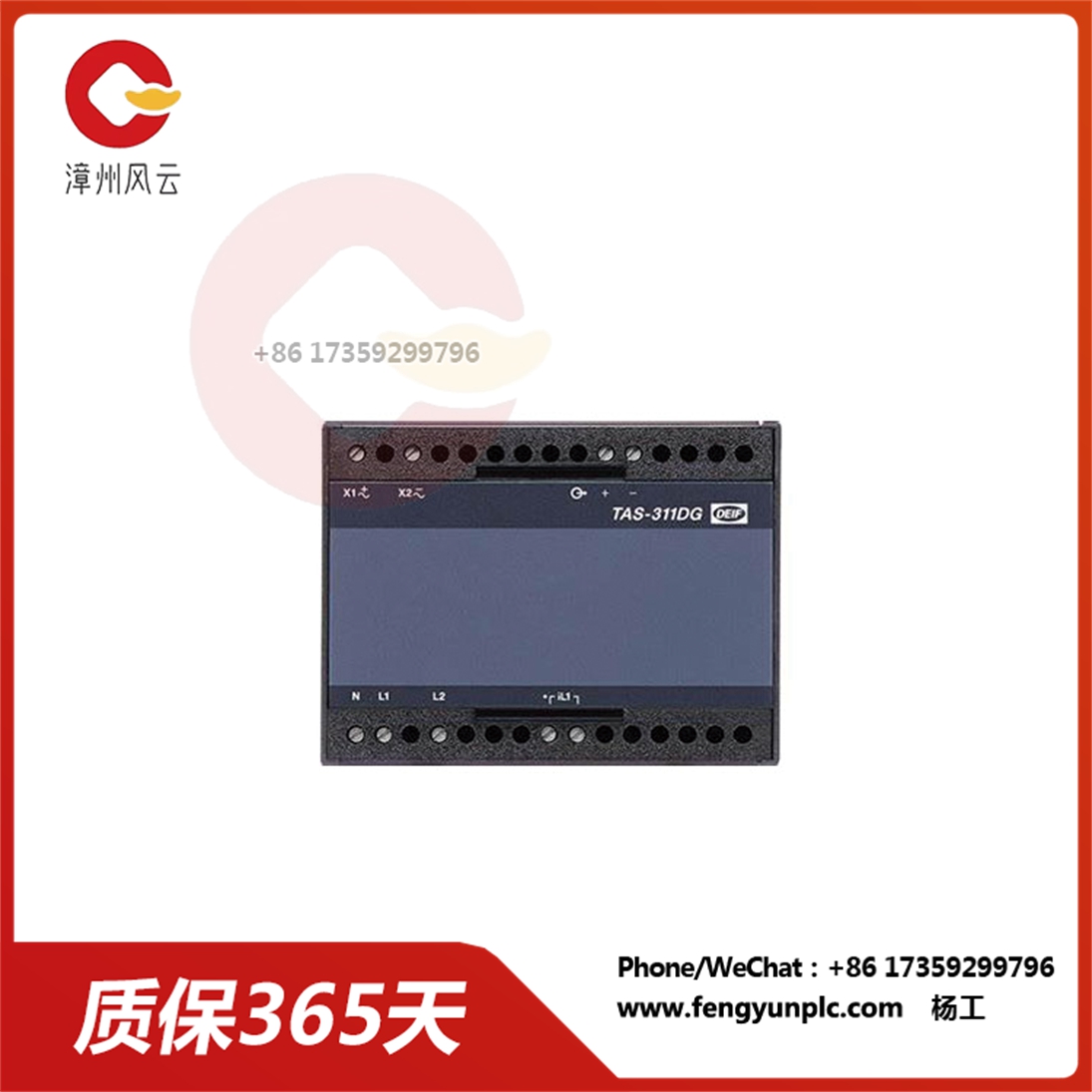

TAS-311DG 功率分析仪 可选交流变送器

TAS-311DG 功率分析仪 可选交流变送器

TAS-311DG 是一款功能强大的功率分析仪，主要用于测量和监控电力系统的各种参数。它能够精确测量交流电路中的电压、电流、功率、功率因数、频率等，并提供多种输出方式，方便用户进行数据采集和分析。

可选交流变送器

TAS-311DG 支持多种可选的交流变送器，这些变送器可以测量不同的交流信号，并将测量结果转换为标准的模拟信号（如4-20mA、0-10V）或数字信号，供功率分析仪进行处理。

交流变送器的主要功能：

测量范围广泛: 可以测量各种范围的电压和电流信号，适应不同的应用场景。

高精度: 具有较高的测量精度，确保测量结果的可靠性。

隔离功能: 具有良好的隔离性能，防止干扰信号对测量结果的影响。

多种输出方式： 提供多种输出方式，方便与其他设备连接。

常见类型的交流变送器：

电流变送器： 测量交流电流，并将其转换为标准的模拟信号。

电压变送器： 测量交流电压，并将其转换为标准的模拟信号。

功率变送器： 直接测量交流功率，并将其转换为标准的模拟信号。

TAS-311DG 与交流变送器的结合

通过选择合适的交流变送器，TAS-311DG 可以实现对电力系统的全面监测。

测量电路参数： 准确测量电压、电流、功率、功率因数等参数。

监测设备运行状态： 通过测量关键参数，监测设备的运行状态，发现潜在故障。

进行谐波分析： 分析谐波成分，评估电力质量。

实现能量管理： 通过对能源消耗数据的分析，优化能源利用。

TAS-311DG 功率分析仪 可选交流变送器

TAS-311DG is a powerful power analyzer designed to measure and monitor various parameters of power systems. It can accurately measure the voltage, current, power, power factor, frequency, etc. in the AC circuit, and provide a variety of output modes, which is convenient for users to collect and analyze data.

Optional AC transmitter

TAS-311DG supports a wide selection of AC transmitters that can measure different AC signals and convert the measured results into standard analog signals (such as 4-20mA, 0-10V) or digital signals for processing by power analyzers.

Main functions of AC transmitter:

Wide measuring range: can measure a variety of voltage and current signals, adapt to different application scenarios.

High precision: has a high measurement accuracy to ensure the reliability of the measurement results.

Isolation function: It has good isolation performance to prevent interference signals from affecting the measurement results.

Multiple output modes: Provides multiple output modes for easy connection with other devices.

Common types of AC transmitters:

Current transmitter: Measures AC current and converts it into a standard analog signal.

Voltage transmitter: Measures AC voltage and converts it to a standard analog signal.

Power transmitter: Directly measures AC power and converts it to a standard analog signal.

Combination of TAS-311DG and AC transmitter

By selecting the right AC transmitter, TAS-311DG enables complete monitoring of the power system.

Measurement circuit parameters: accurate measurement of voltage, current, power, power factor and other parameters.

Monitoring the operating status of equipment: By measuring key parameters, monitoring the operating status of equipment and discovering potential faults.

Perform harmonic analysis: Analyze harmonic components and evaluate power quality.

Achieve energy management: Optimize energy use through analysis of energy consumption data.
