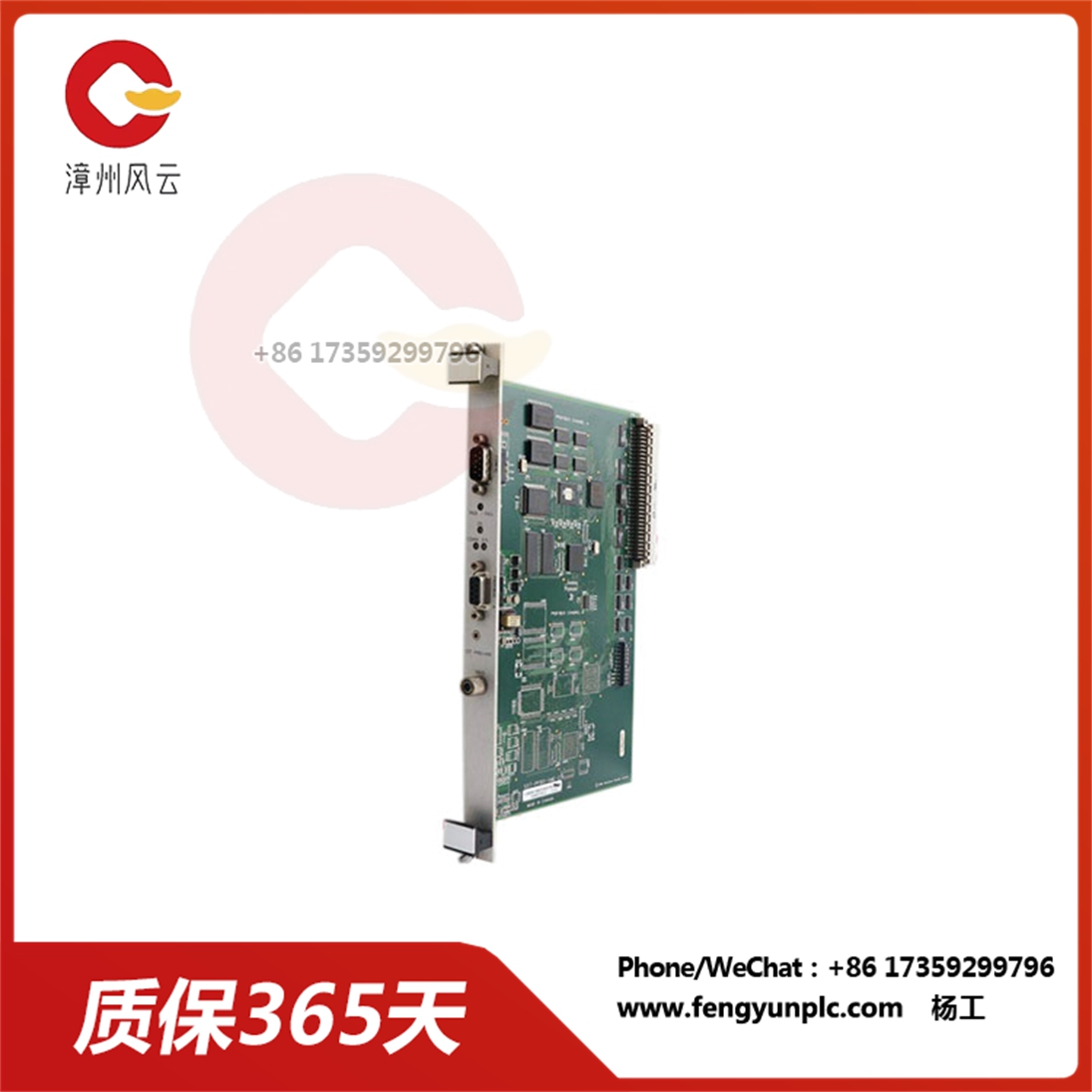

SST-PFB3-VME-2-E PB3-VME-2-E驱动模块

SST-PFB3-VME-2-E PB3-VME-2-E驱动模块

SST-PFB3-VME-2-E/PB3-VME-2-E 驱动模块是一款专为VME总线系统设计的模块，主要用于控制和驱动外部设备。它通过VME总线与计算机系统连接，实现对外部设备的实时控制和数据采集。

主要功能与特点

VME总线接口： 通过VME总线与计算机系统连接，实现数据传输和控制。

数字I/O： 提供多种数字I/O接口，可用于控制继电器、开关等设备。

模拟I/O： 提供模拟I/O接口，可用于采集模拟信号，如电压、电流等。

计数器/定时器: 内置计数器和定时器，可用于测量频率、脉冲宽度等。

通信接口: 支持多种通信接口，如RS232、RS485等，可用于与串口设备通信。

可编程逻辑控制器(PLC)功能: 部分型号支持PLC功能，可实现简单的逻辑控制。

应用场景

工业自动化： 控制生产线上的设备，如电机、阀门等。

数据采集： 采集现场数据，如温度、压力、流量等。

运动控制： 控制伺服电机、步进电机等。

测试测量： 用于各种测试测量系统。

工作原理

SST-PFB3-VME-2-E/PB3-VME-2-E 模块通过VME总线与计算机系统交换数据。计算机通过向模块发送指令，控制模块的数字I/O、模拟I/O、计数器/定时器等功能。模块将采集到的数据通过VME总线返回给计算机。

SST-PFB3-VME-2-E PB3-VME-2-E驱动模块

The SST-PFB3-VME-2-E/PB3-VME-2-E driver module is a module designed for VME bus systems, mainly for controlling and driving external devices. It is connected to the computer system through the VME bus to realize the real-time control and data acquisition of external devices.

Main functions and characteristics

VME bus interface: Connected to the computer system through the VME bus to achieve data transmission and control.

Digital I/O: Provides a variety of digital I/O interfaces that can be used to control relays, switches and other devices.

Analog I/O: Provides analog I/O interface, can be used to collect analog signals, such as voltage, current, etc.

Counter/timer: Built-in counter and timer for measuring frequency, pulse width, etc.

Communication interface: Support a variety of communication interfaces, such as RS232, RS485, etc., can be used to communicate with serial devices.

Programmable Logic Controller (PLC) function: Some models support PLC function for simple logic control.

Application scenario

Industrial automation: Control of equipment on production lines, such as motors, valves, etc.

Data acquisition: Collect field data, such as temperature, pressure, flow, etc.

Motion control: control servo motor, stepper motor, etc.

Test and measurement: Used for various test and measurement systems.

Working principle

The SST-PFB3-VME-2-E/PB3-VME-2-E module exchanges data with the computer system via the VME bus. By sending instructions to the module, the computer controls the digital I/O, analog I/O, counter/timer and other functions of the module. The module returns the collected data to the computer through the VME bus.

SST-PFB3-VME-2-E PB3-VME-2-E驱动模块
