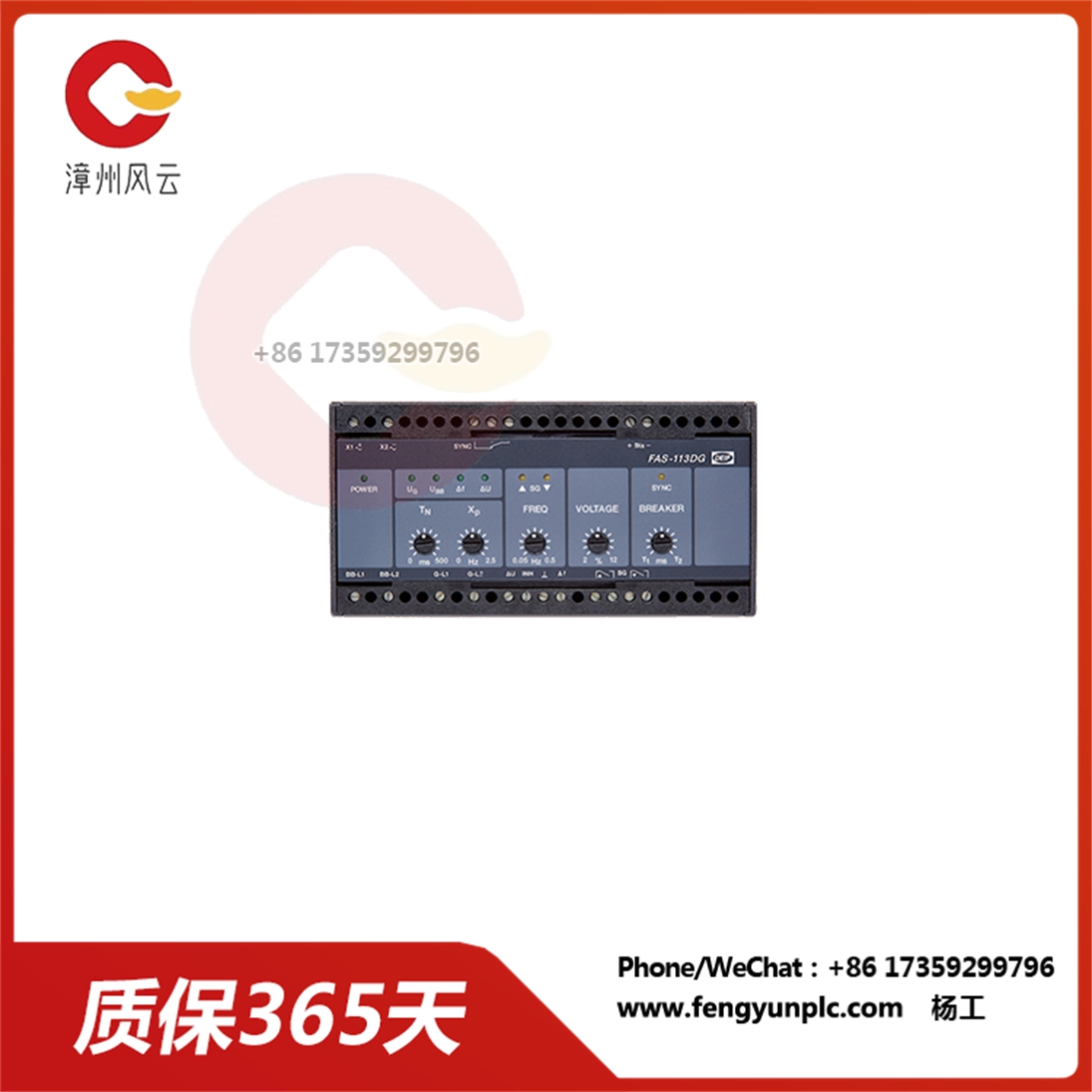

FAS-113DG 同步器德国DEIF多功能同步表

FAS-113DG 同步器德国DEIF多功能同步表

DEIF FAS-113DG 是一款功能强大的多功能同步表，主要用于电力系统中发电机的同步并网。它能够精确地监测发电机和电网之间的电压、频率和相位差，并在满足预设的同步条件时，发出信号控制断路器闭合，从而实现发电机的安全并网。

主要功能与特点

同步判断: 精准监测发电机和电网之间的电压、频率和相位差，并根据预设的同步条件判断是否可以进行并网。

断路器控制: 在满足同步条件时，输出控制信号，控制断路器闭合，实现发电机并网。

保护功能: 具有多种保护功能，如失步保护、过电压保护、欠电压保护等，确保系统的安全运行。

灵活配置: 可以根据不同的应用场景进行灵活的配置，满足各种需求。

人机界面: 友好的用户界面，方便操作和维护。

工作原理

FAS-113DG 的工作原理主要分为以下几个步骤：

参数采集: 连续采集发电机和电网的电压、频率、相位等参数。

同步判断: 根据预设的同步条件，对采集到的参数进行比较和计算，判断是否满足同步条件。

控制信号输出: 如果满足同步条件，输出控制信号，控制断路器闭合；如果不满足，则不输出控制信号。

保护功能: 持续监测系统的运行状态，一旦发生故障，立即发出报警信号，并采取相应的保护措施。

应用场景

FAS-113DG 广泛应用于各种电力系统中，例如：

发电厂: 用于将发电机并联到电网。

船舶: 用于船舶上的发电机组并车。

工业企业: 用于自备电站的发电机并车。

FAS-113DG 同步器德国DEIF多功能同步表

The DEIF FAS-113DG is a powerful and versatile synchronous meter, which is mainly used for synchronous grid-connection of generators in power systems. It can accurately monitor the voltage, frequency and phase difference between the generator and the power grid, and when the preset synchronization conditions are met, send a signal to control the circuit breaker closure, so as to achieve the safe connection of the generator.

Main functions and characteristics

Synchronous judgment: Accurately monitor the voltage, frequency and phase difference between the generator and the grid, and determine whether it can be connected to the grid according to the preset synchronization conditions.

Circuit breaker control: When the synchronization conditions are met, the output control signal controls the circuit breaker to close, and the generator is connected to the grid.

Protection function: With a variety of protection functions, such as out-of-step protection, overvoltage protection, undervoltage protection, etc., to ensure the safe operation of the system.

Flexible configuration: Flexible configuration can be implemented based on different application scenarios to meet various requirements.

Man-machine interface: Friendly user interface, easy operation and maintenance.

Working principle

The working principle of FAS-113DG is mainly divided into the following steps:

Parameter acquisition: continuous acquisition of generator and power grid voltage, frequency, phase and other parameters.

Synchronization judgment: According to the preset synchronization conditions, the collected parameters are compared and calculated to determine whether the synchronization conditions are met.

Control signal output: if the synchronization conditions are met, output control signal, control circuit breaker closed; If not, no control signal is output.

Protection function: continuously monitor the operating status of the system, in case of failure, immediately send an alarm signal, and take appropriate protective measures.

Application scenario

FAS-113DG is widely used in a variety of power systems, such as:

Power plant: Used to connect generators in parallel to the grid.

Ships: Used for parallel operation of generator sets on ships.

Industrial enterprises: Parallel operation of generators for self-contained power stations.
